5th and Reverse Gear Shift Shafts: Assembly

WARNING: This page is about a different variant/trim than selected.

Replace or correct parts as required and assemble shafts making sure that component parts are in proper order as shown in figure.

NOTE:

Install 2 steel balls (3) in reverse gear shift arm (1) without fail.
Drive in spring pin for reverse gear shift arm (1) facing slit A toward 5th gear side.

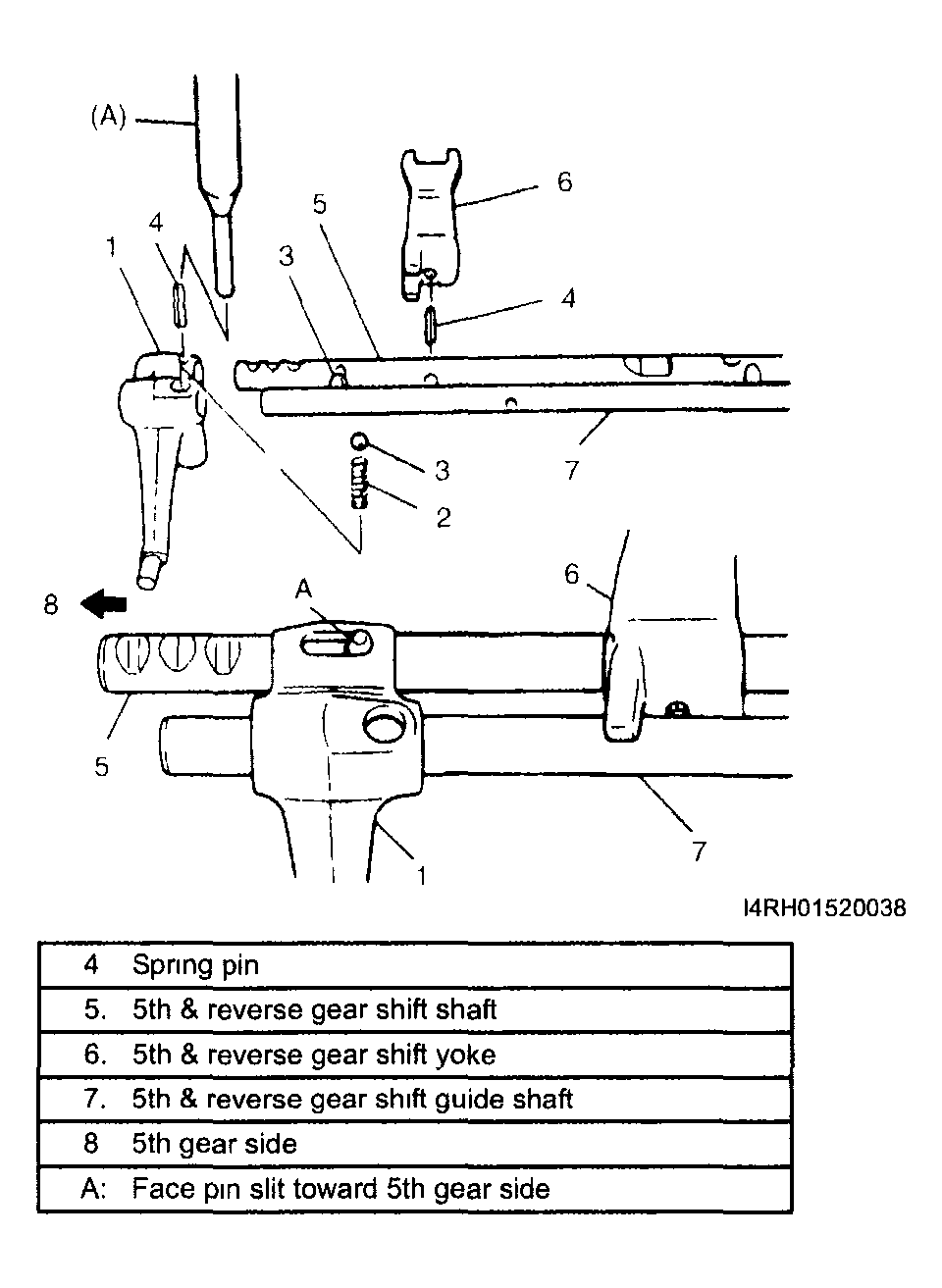

Fig 1: Installing Steel Balls In Reverse Gear Shift Arm

Courtesy of SUZUKI OF AMERICA CORP.
