Wheel Cylinder Removal and Installation: Removal

  1. Remove brake drum referring to "REAR BRAKE DRUM REMOVAL AND INSTALLATION :".
  2. Remove brake shoe referring to "REAR BRAKE SHOE REMOVAL AND INSTALLATION :".
  3. Loosen brake pipe flare nut (1) but only within the extent that fluid does not leak.

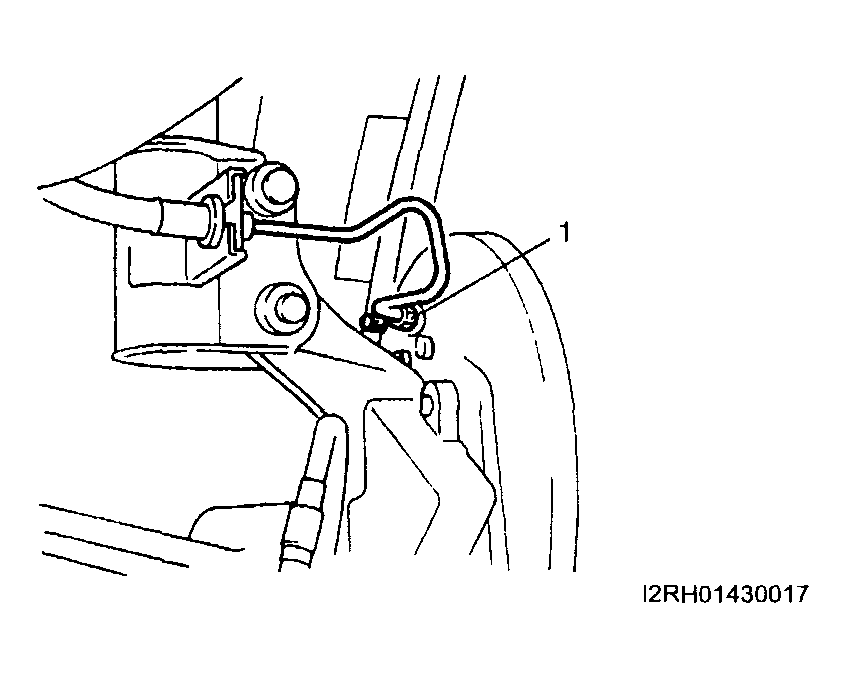

    Fig 1: Loosening Brake Pipe Flare Nut
    G04014838Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove wheel cylinder mounting bolts. Disconnect brake pipe from wheel cylinder and put bleeder plug cap (1) onto pipe to prevent fluid from spilling.

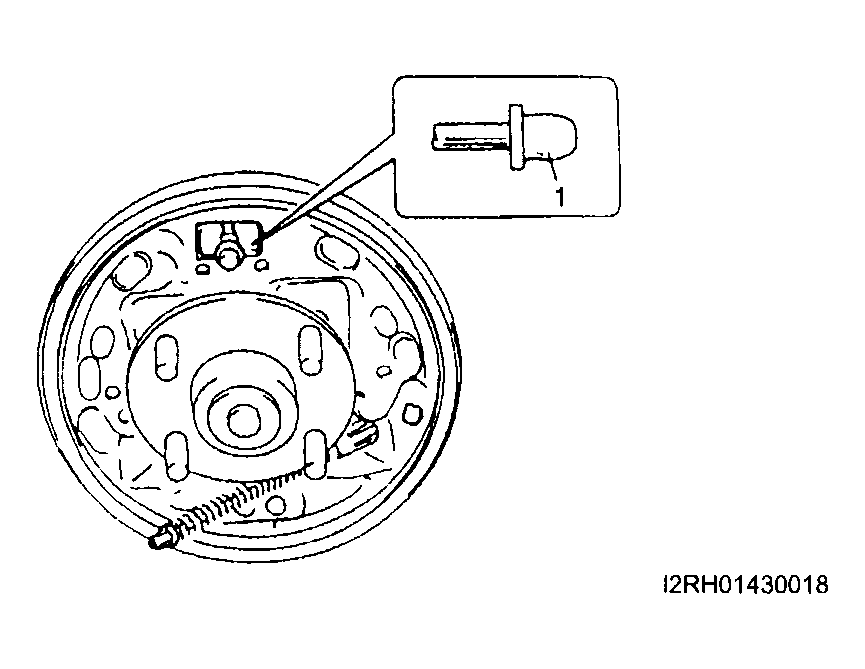

    Fig 2: Putting Bleeder Plug Cap Onto Pipe
    G04014839Courtesy of SUZUKI OF AMERICA CORP.
