Rear Drum Brake Components

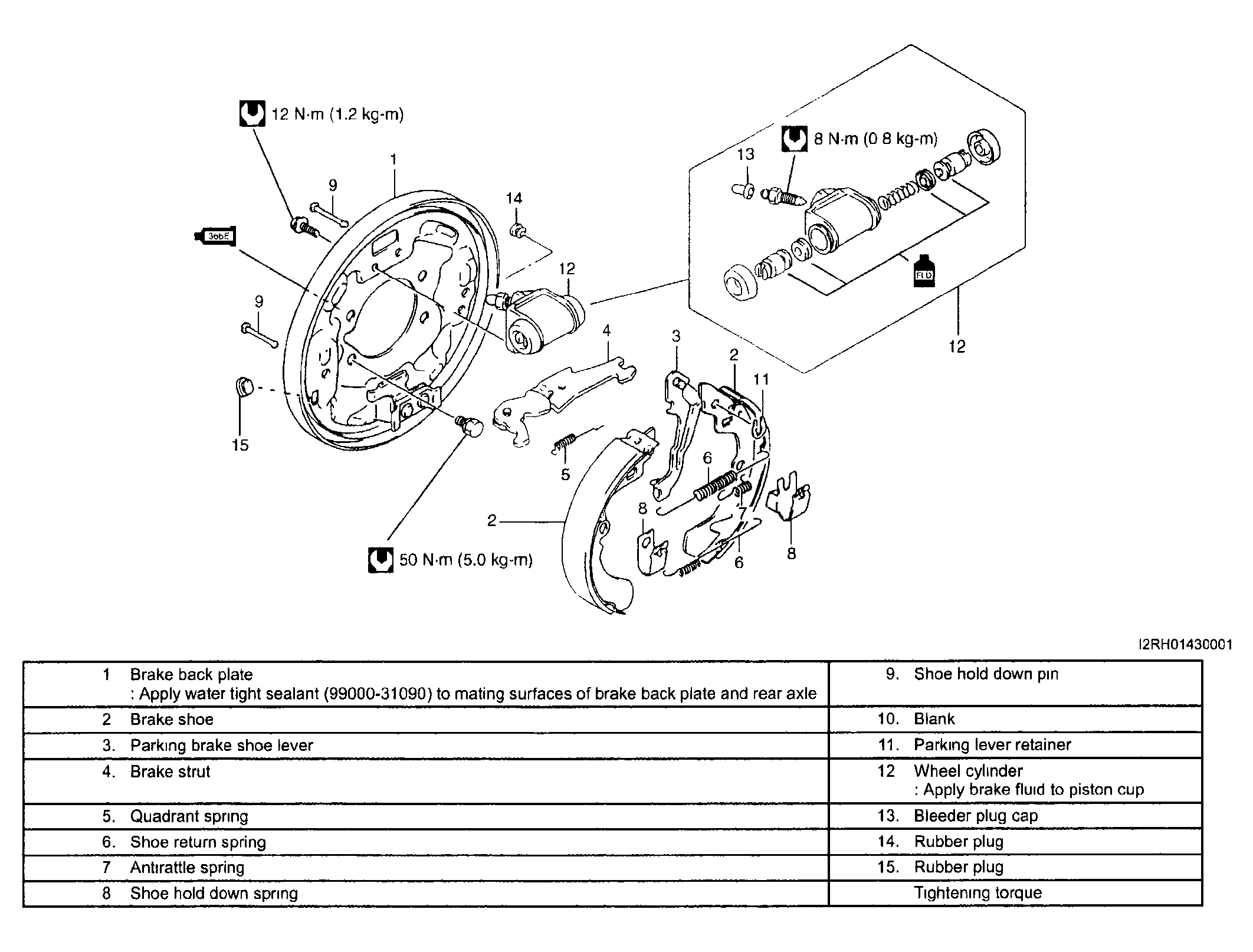

Fig 1: Identifying Rear Drum Brake Components

G04014821

Courtesy of SUZUKI OF AMERICA CORP.
