Rear Brake Shoe Removal and Installation: Removal

  1. Remove brake drum referring to "REAR BRAKE DRUM REMOVAL AND INSTALLATION :".

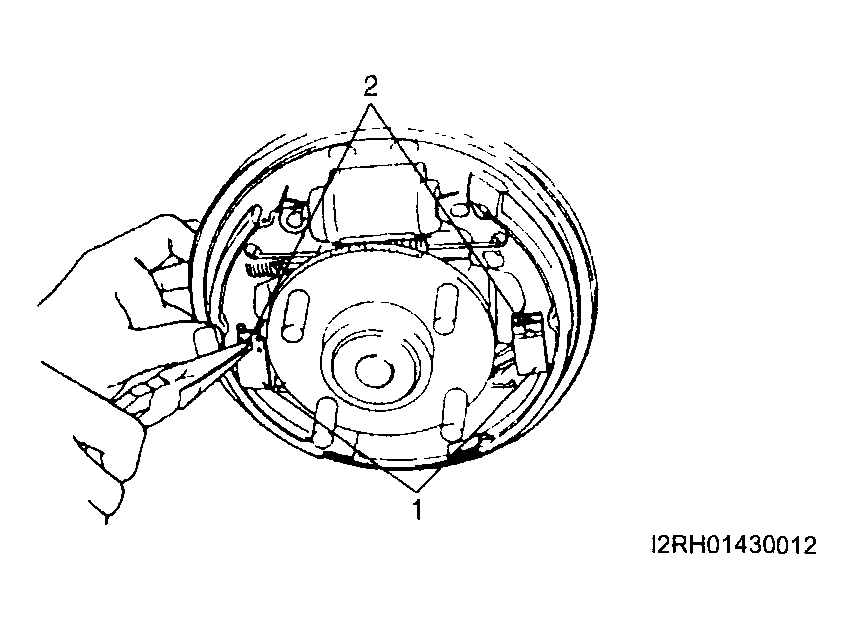

  2. Remove shoe hold down springs (1) by turning shoe hold down pins (2).
    Fig 1: Removing Shoe Hold Down Springs
    G04014833Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove return springs, brake shoes and strut.

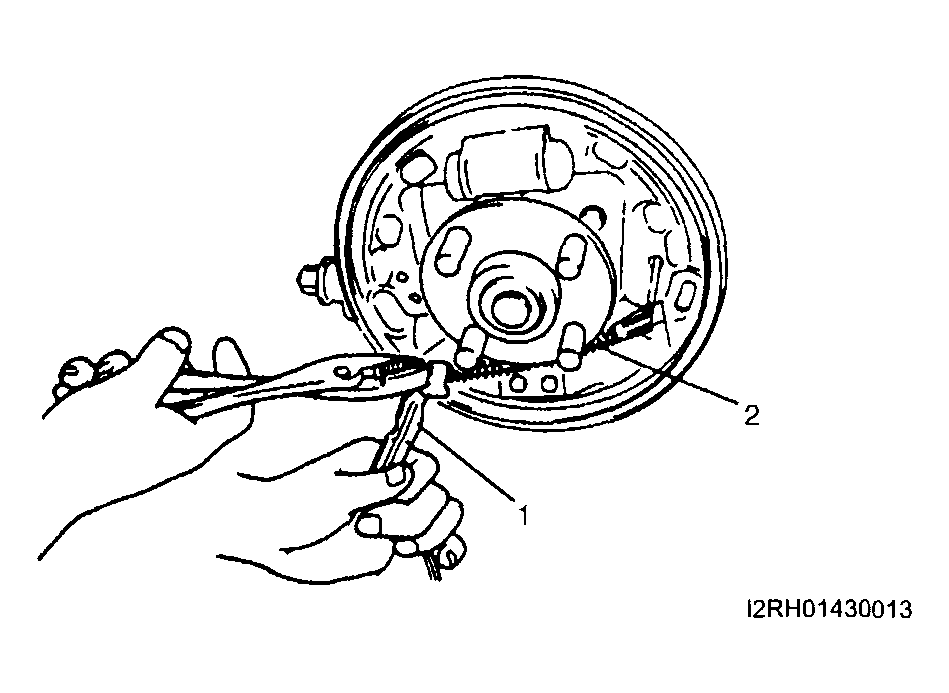

  4. Disconnect parking brake shoe lever (1) from parking brake cable (2).
    Fig 2: Disconnecting Parking Brake Shoe Lever
    G04014834Courtesy of SUZUKI OF AMERICA CORP.

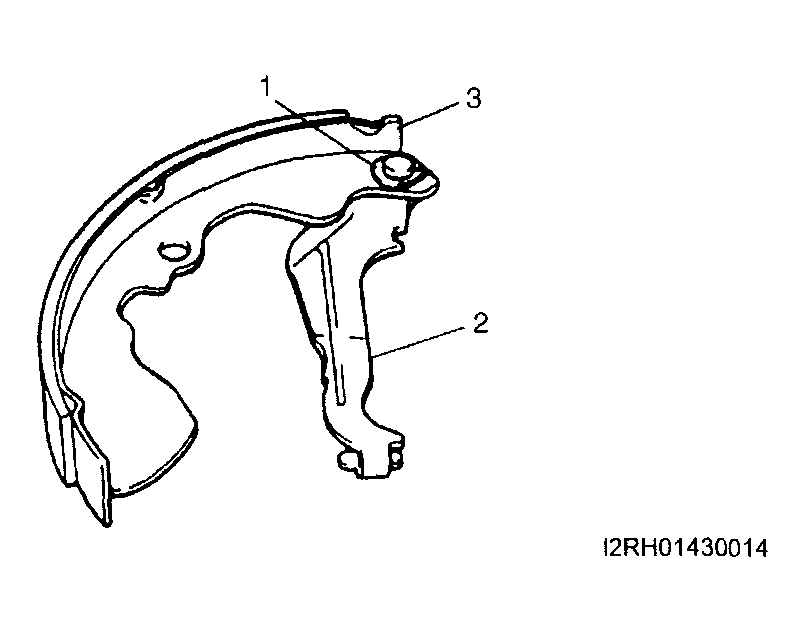

  5. Remove retainer (1).
  6. Remove parking brake shoe lever (2) from shoe rim (3).
    Fig 3: Removing Parking Brake Shoe Lever From Shoe Rim
    G04014835Courtesy of SUZUKI OF AMERICA CORP.
