Brake Drum: Notes

Inspect brake drum for wear.

If limit value of drum inner diameter is exceeded or uneven or stepped wear is excessive, replace drum.

Drum inner diameter "a"

Standard: 200 mm (7.87 in.)

Limit: 202 mm (7.95 in.)

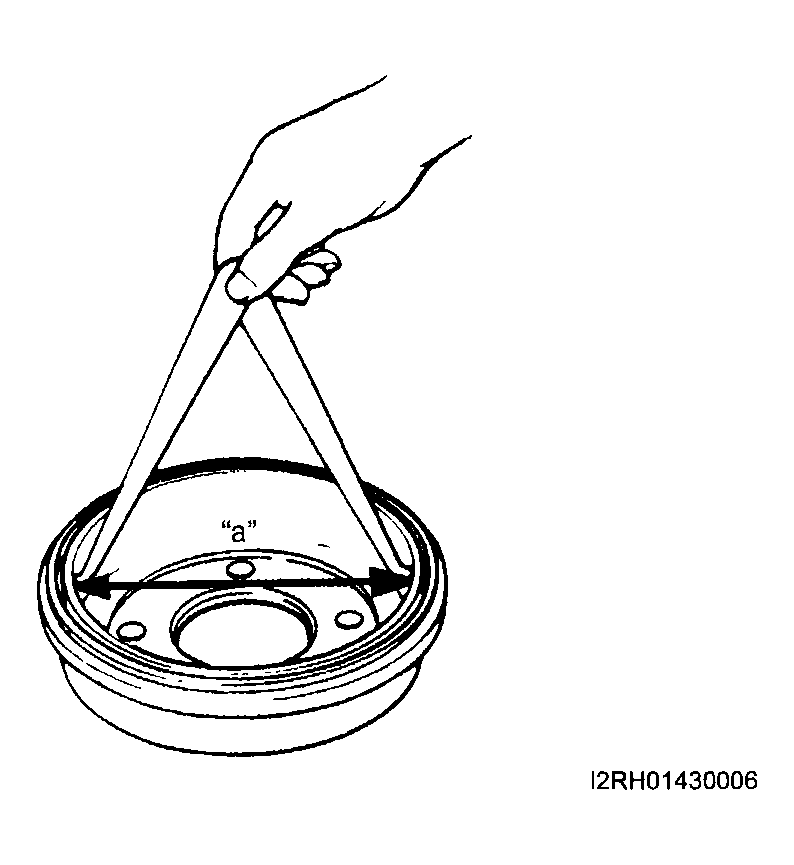

Fig 1: Inspecting Brake Drum For Wear

Courtesy of SUZUKI OF AMERICA CORP.
