Brake Back Plate Removal and Installation: Removal

  1. Remove brake drum referring to "REAR BRAKE DRUM REMOVAL AND INSTALLATION :".
  2. Remove brake shoe referring to "REAR BRAKE SHOE REMOVAL AND INSTALLATION :".
  3. Remove wheel cylinder referring to "WHEEL CYLINDER REMOVAL AND INSTALLATION :".
  4. Remove cable from brake back plate by squeezing parking brake cable stopper ring (1).

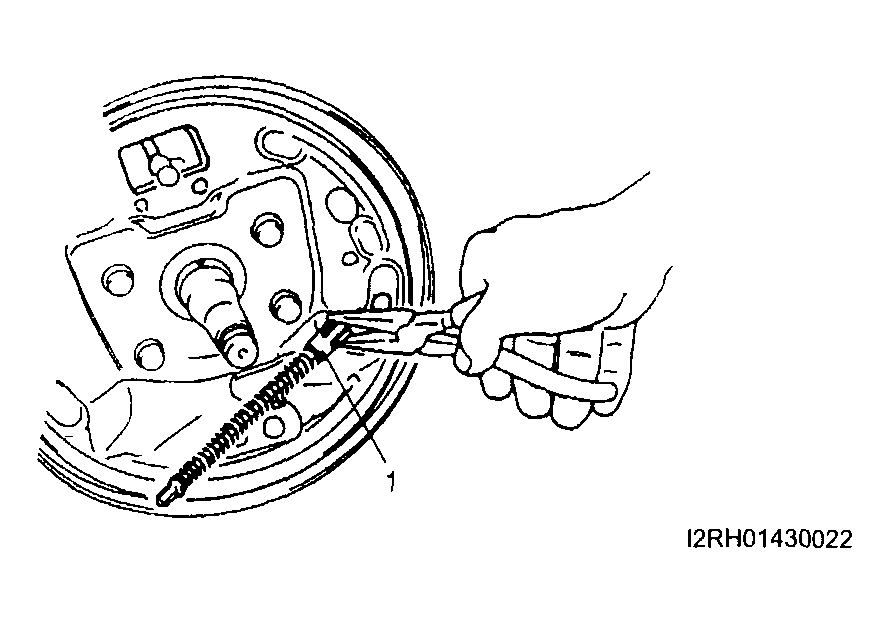

    Fig 1: Removing Cable From Brake Back Plate By Squeezing Parking Brake Cable Stopper Ring
    G04014843Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove wheel hub referring to WHEEL HUB WITH WHEEL BEARING AND WHEEL STUD .
  6. Remove brake back plate (1) by removing bolts (2).

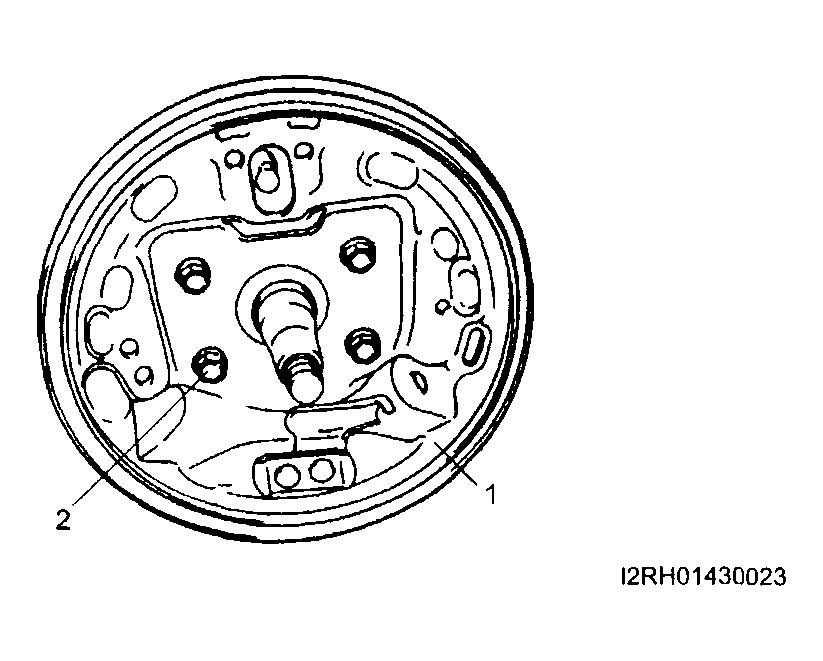

    Fig 2: Removing Brake Back Plate
    G04014844Courtesy of SUZUKI OF AMERICA CORP.
