Brake Back Plate Removal and Installation: Installation

Apply water tight sealant to mating surfaces of brake back plate and rear axle.
"A": Water tight sealant 99000-31090

Fig 1: Applying Water Tight Sealant To Mating Surfaces Of Brake Back Plate
Courtesy of SUZUKI OF AMERICA CORP.
Install brake back plate and tighten back plate bolts to specified torque.
Tightening torque

Brake back plate bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)

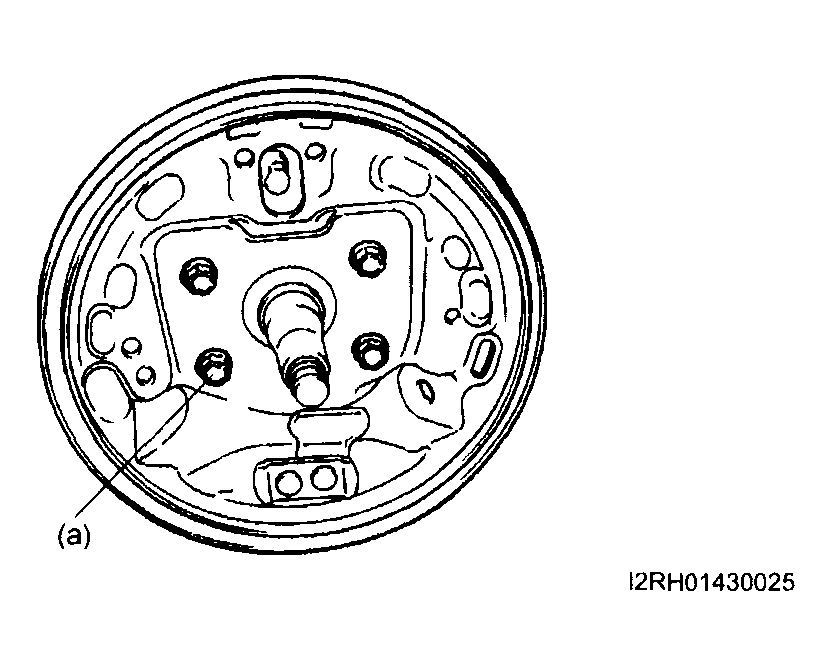

Fig 2: Installing Brake Back Plate
Courtesy of SUZUKI OF AMERICA CORP.
Install parking brake cable (3) to brake back plate (1).

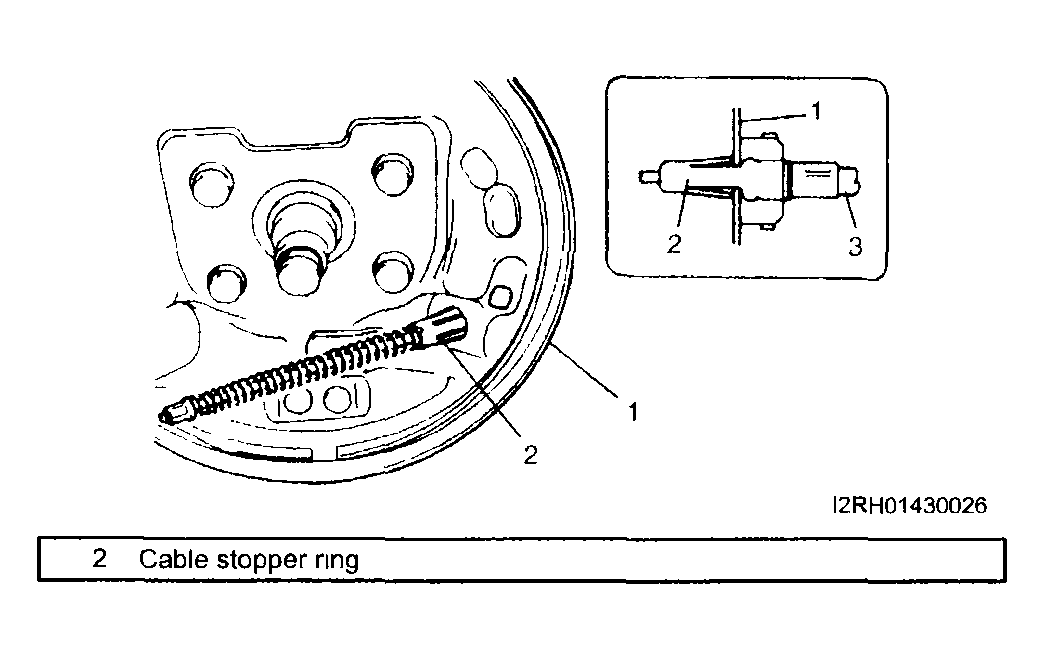

Fig 3: Installing Parking Brake Cable To Brake Back Plate
Courtesy of SUZUKI OF AMERICA CORP.
Install wheel hub referring to WHEEL HUB WITH WHEEL BEARING AND WHEEL STUD .
Install wheel cylinder, and tighten wheel cylinder bolts and brake pipe flare nut to specified torque. Refer to "WHEEL CYLINDER REMOVAL AND INSTALLATION :".
For procedure hereafter refer to "WHEEL CYLINDER REMOVAL AND INSTALLATION :".
