Master Cylinder Reservoir Removal and Installation: Removal

1. Disconnect fluid level switch coupler on reservoir.
2. Clean outside of reservoir.
3. Take out fluid with syringe or such.
4. Remove reservoir pin (1) by using special tool (A).

   Special tool

   (A): 09922--85811

5. Remove reservoir (2).

CAUTION: Brake fluid is extremely damaging to paint. Do not allow brake fluid to get on painted surfaces.

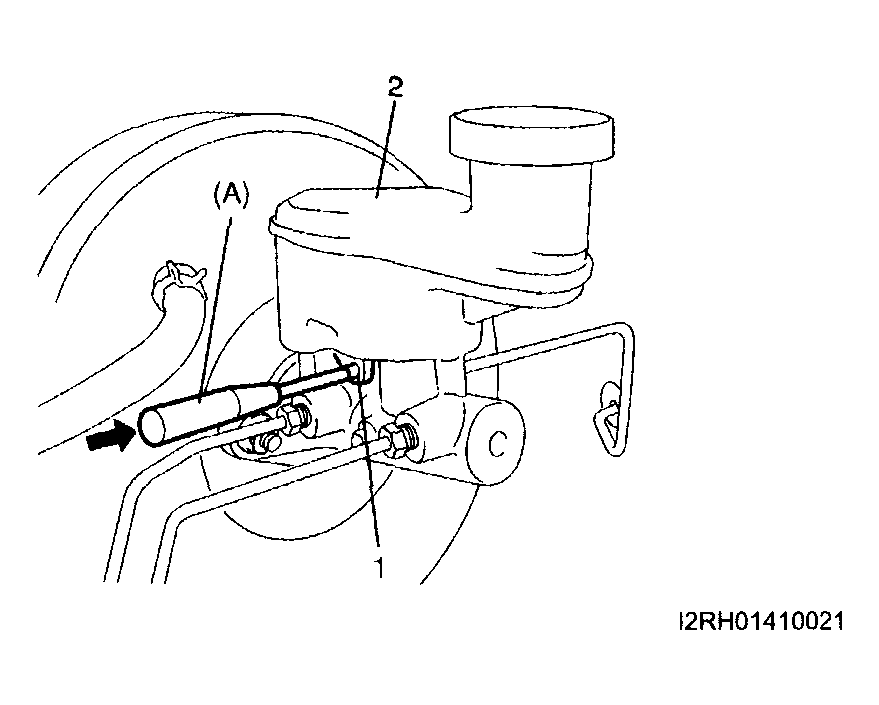

Fig 1: Removing Reservoir Pin Using Special Tool

Courtesy of SUZUKI OF AMERICA CORP.
