Master Cylinder Reservoir Removal and Installation: Installation

When using new grommets, lubricate them with the same fluid as the one to fill reservoir with. Then press-fit grommets to master cylinder. Grommets must be seated in place.
Install reservoir (1) to master cylinder with pin (2).
NOTE: When inserting pin, drive till both of its ends at the right and left of reservoir become the same length.

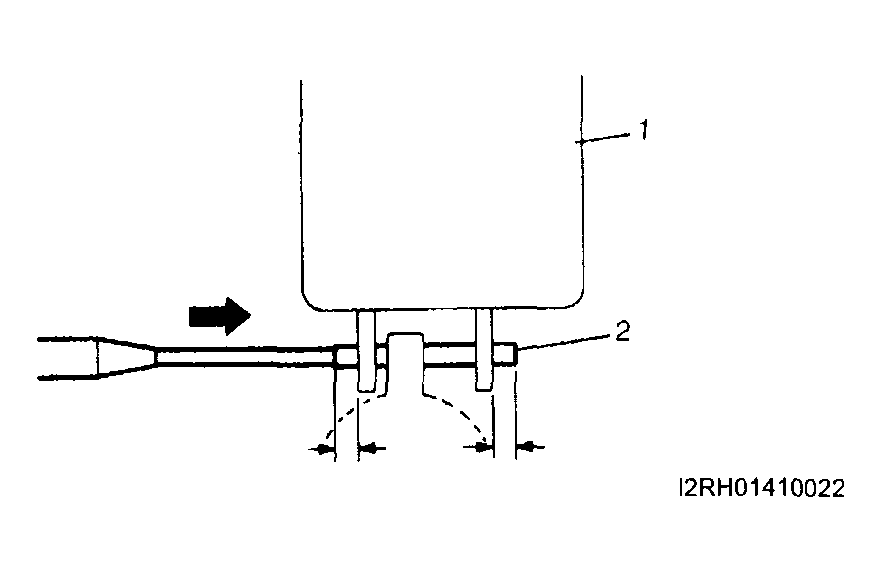

Fig 1: Installing Reservoir To Master Cylinder With Pin
Courtesy of SUZUKI OF AMERICA CORP.
Connect fluid level switch coupler on reservoir.
Fill reservoir with special fluid.
Upon completion of installation, check for fluid leakage.
