Master Cylinder Components

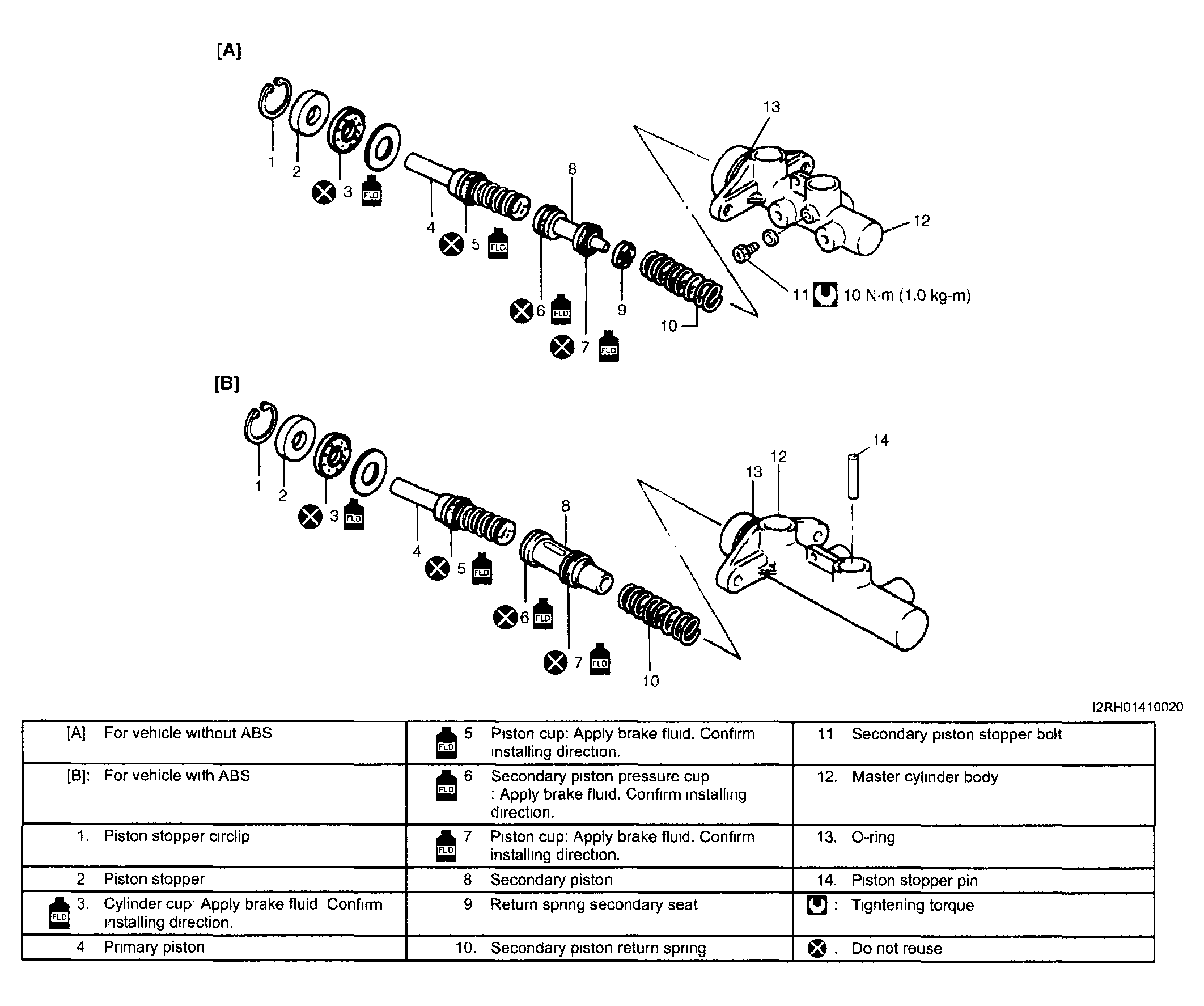

Fig 1: Identifying Master Cylinder Components
G04014764Courtesy of SUZUKI OF AMERICA CORP.
