Master Cylinder Assembly Removal and Installation: Removal

  1. Clean outside of master cylinder.
  2. Drain brake fluid in reservoir.
  3. Disconnect fluid level switch coupler (1) on reservoir.
  4. Remove brake pipes (2).
    CAUTION: Do not allow brake fluid to get on painted surfaces. Painted surfaces will be damaged by brake fluid, flush it with water immediately if any fluid is spilled.
  5. Remove master cylinder fixing nuts (3).

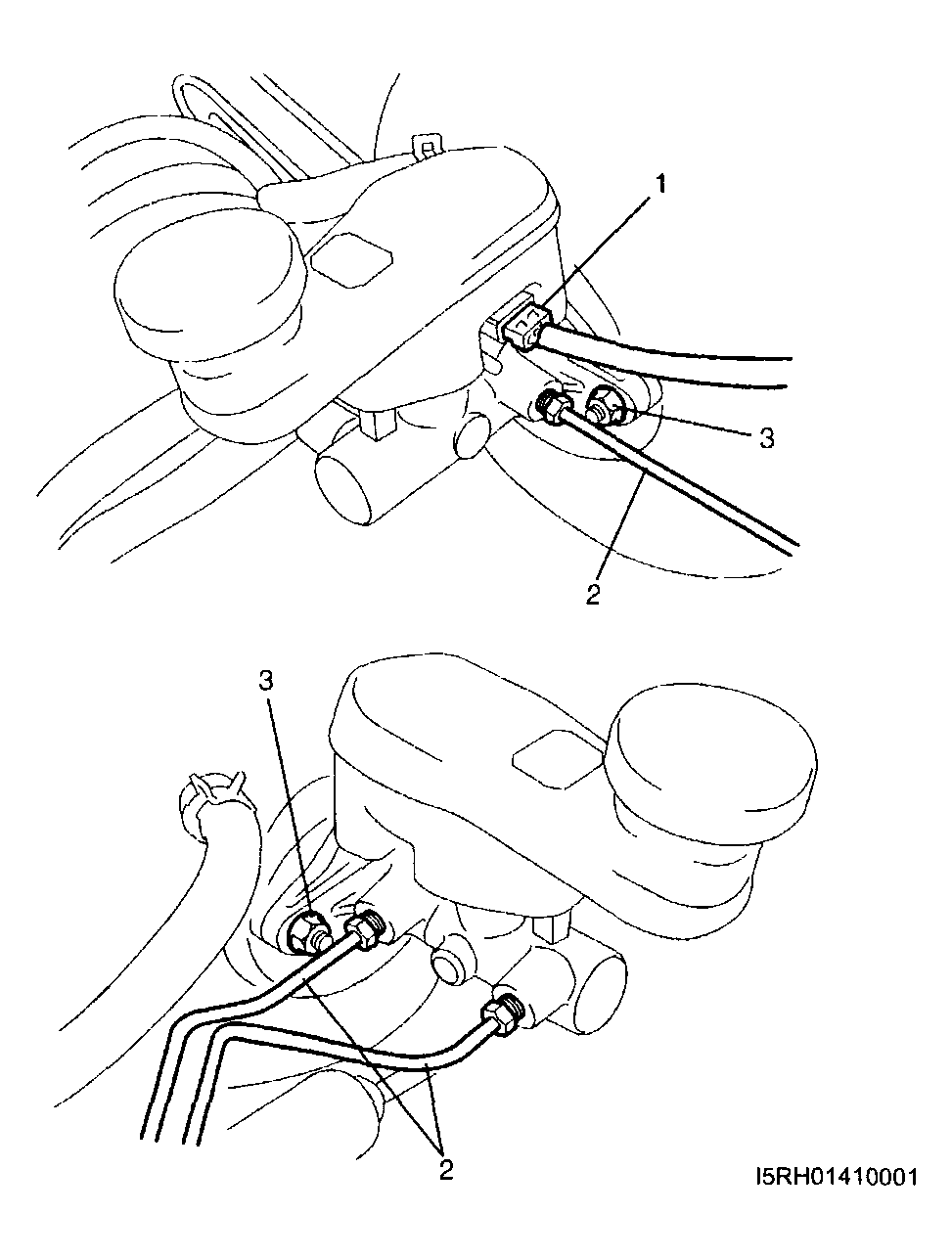

    Fig 1: Removing Master Cylinder Nuts
    G04014767Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove master cylinder.
