Brake Pedal Free Height Inspection
- Check brake pedal free height. If it is not within specification, check and adjust following item 2) and 3).

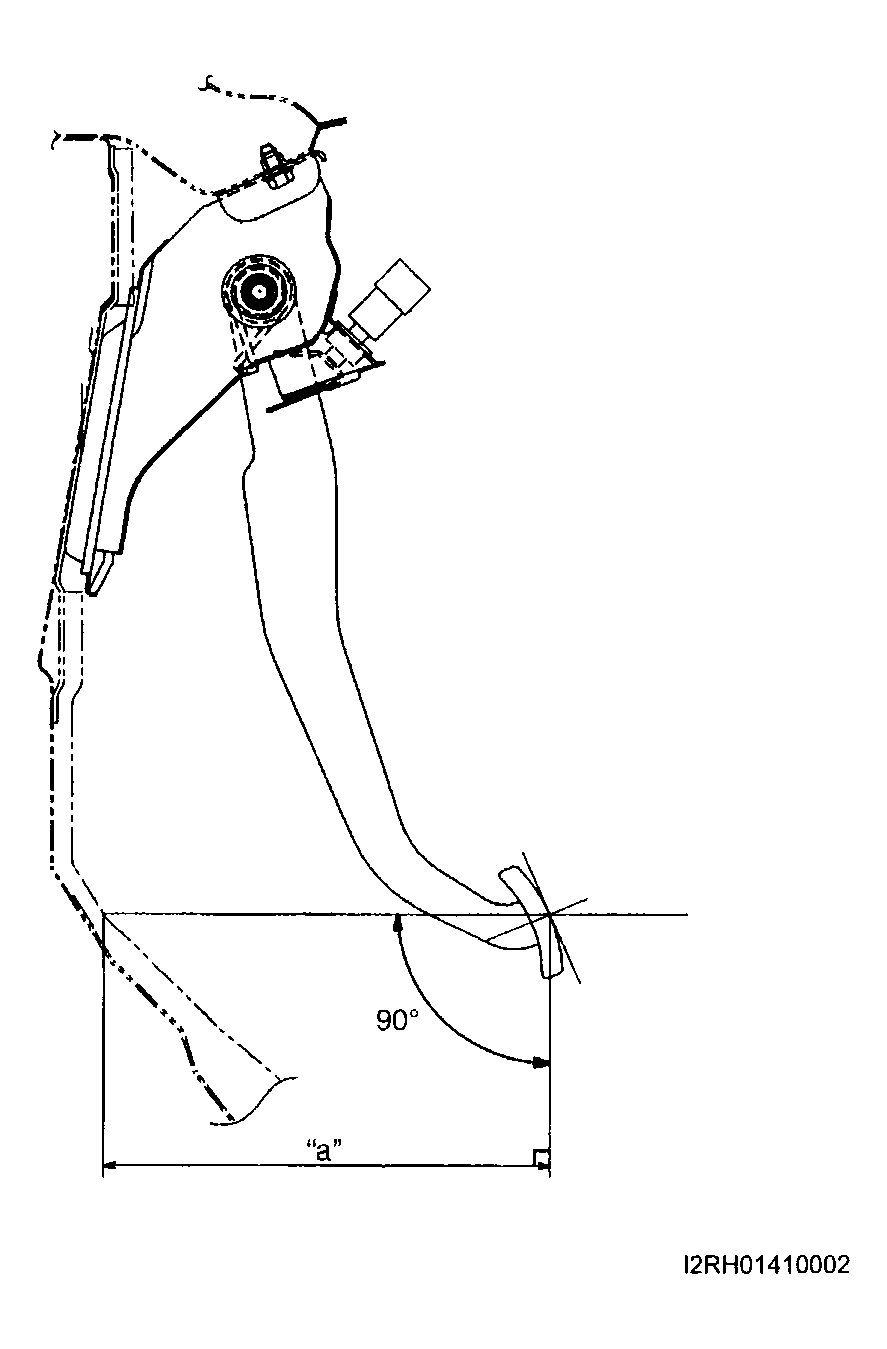

Brake pedal free height "a" from dash silencer
222 - 242 mm (8.74 - 9.53 in.)
- Check measurement between booster mounting surface and center of clevis pin hole. When booster push rod clevis has been reinstalled, it is important that the measurement is adjusted (refer to "BRAKE BOOSTER INSPECTION AND ADJUSTMENT :").
- Check stop light switch position. Adjust it if it is out of specification.
