Brake Hose and Pipe Inspection: Hose

The brake hose assembly should be checked for road hazard damage, for cracks and chafing of outer cover, for leaks and blisters. A light and mirror may be needed for an adequate inspection. If any conditions are observed on brake hose, it is necessary to replace it.

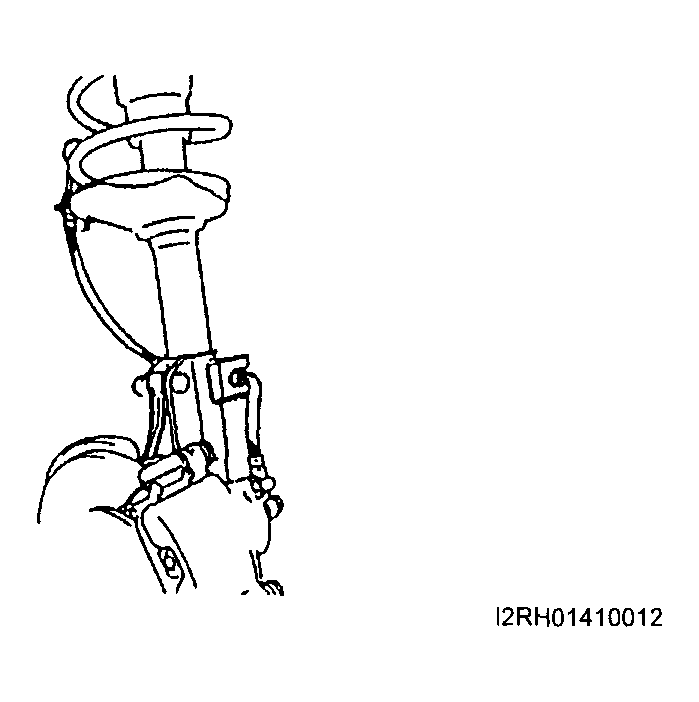

Fig 1: Identifying Brake Hose And Pipe
G04014763Courtesy of SUZUKI OF AMERICA CORP.
