Installation Position of Push Rod

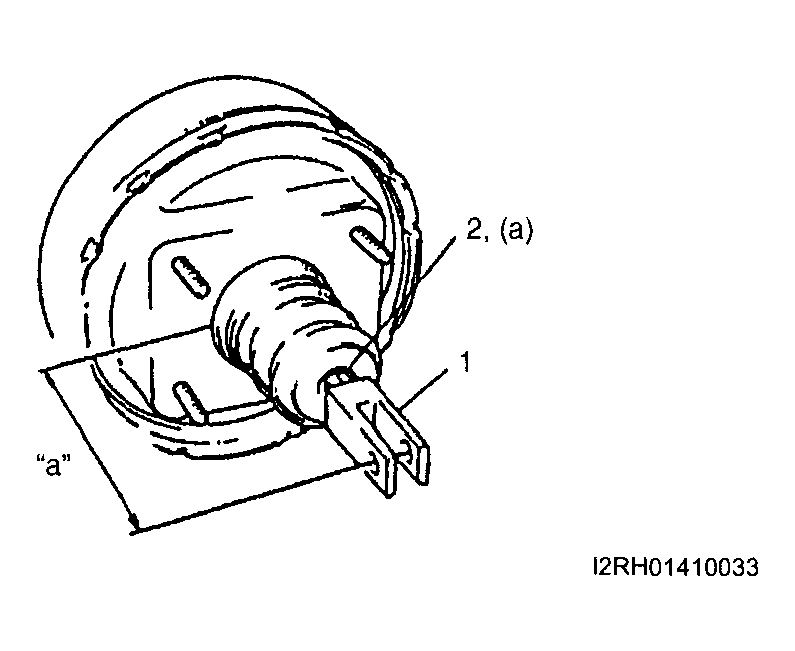

If push rod clevis (1) has been removed, adjust distance between booster installation surface (without including packing) and the center of clevis pin hole to standard value "a" and tighten nut (2) to specified torque.
Distance "a" between center of booster clevis pin hole and booster surface
Standard: 104.5 - 105.5 mm (4.11 - 4.15 in.)
Tightening torque
Clevis lock nut (a): 25 N.m (2.5 kg-m, 18.5 lb-ft)
