Clearance Between Booster Piston Rod and Master Cylinder Piston

Set special tool (A) on master cylinder (1) and push pin head (3) until it contacts piston (2).
Special tool

(A): 09950--96010

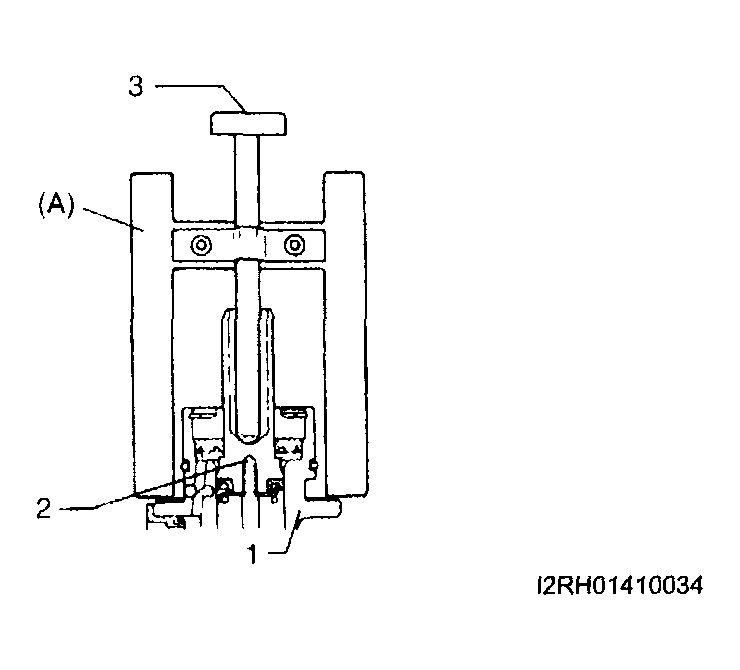

Fig 1: Setting Special Tool On Master Cylinder And Push Pin Head
Courtesy of SUZUKI OF AMERICA CORP.
Turn special tool upside down and place it on booster (1). Adjust booster piston rod (2) length until rod end contacts pin head.
Clearance "b" (Between special tool and piston rod)

0 mm (0 in.)

Special tool

(A): 09950--96010

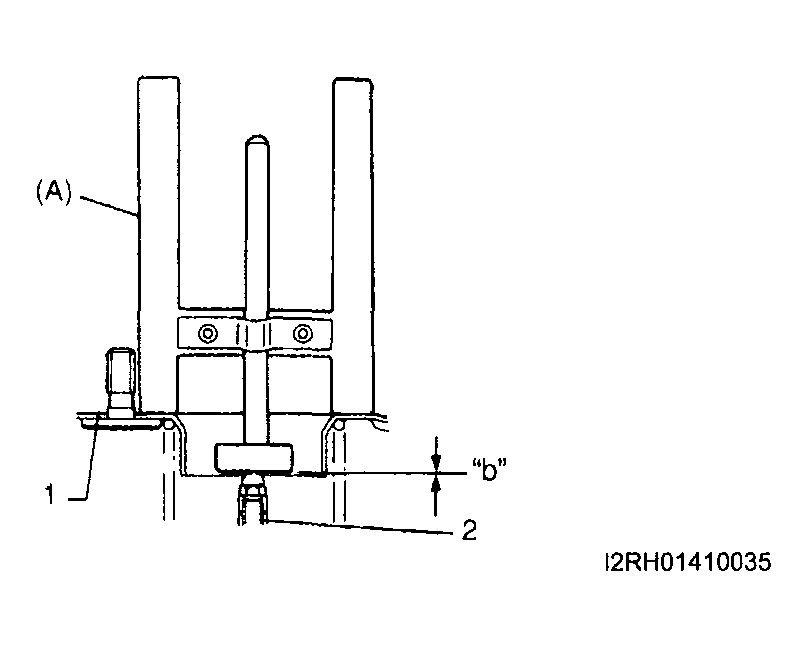

Fig 2: Adjusting Booster Piston Rod Length
Courtesy of SUZUKI OF AMERICA CORP.
Adjust clearance by turning adjusting screw of piston rod.
Special tool

(B): 09952--16010

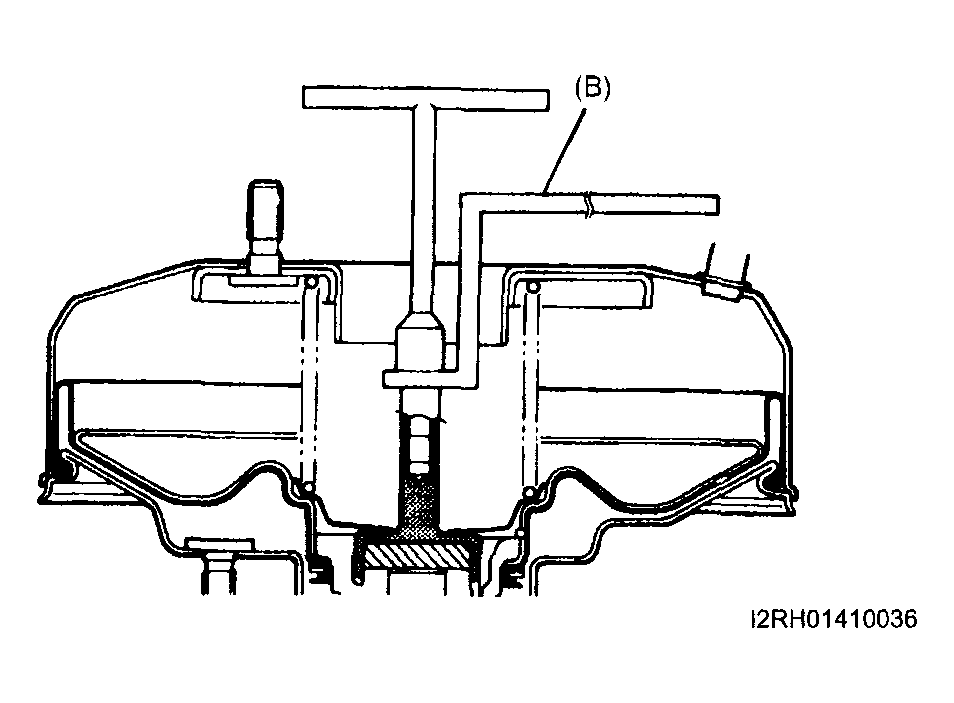

Fig 3: Adjusting Screw Of Piston Rod By Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
