Brake Booster Components

CAUTION: Never disassemble brake booster. Disassembly will spoil its original function. If faulty condition is found, replace it with new one.

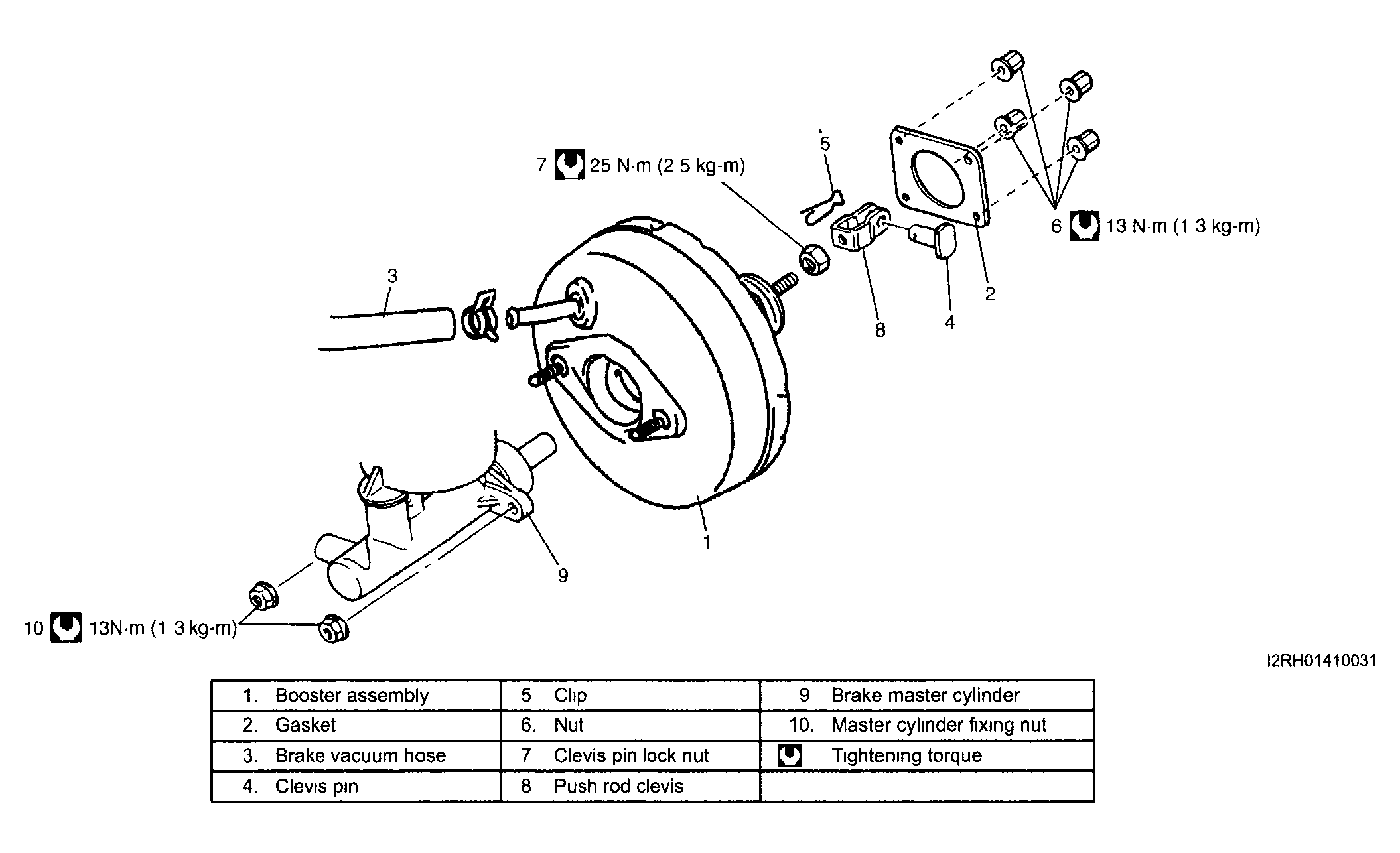

Fig 1: Identifying Brake Booster Components
G04014775Courtesy of SUZUKI OF AMERICA CORP.
