For Vehicle with ABS

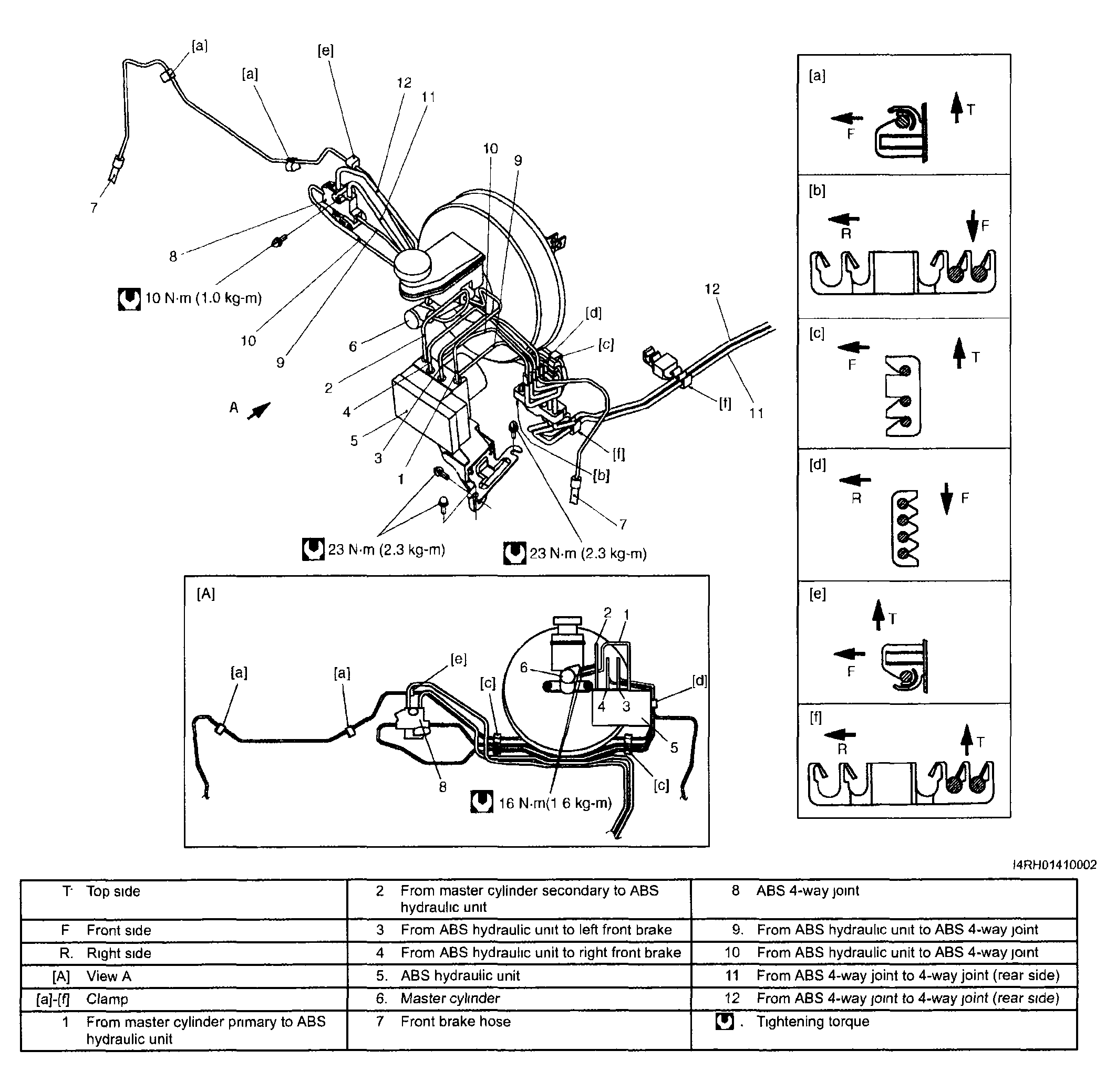

Fig 1: Brakes System Diagram - For Vehicle With ABS

G04014749

Courtesy of SUZUKI OF AMERICA CORP.
