Woofer Speaker Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Remove driver side front seat referring to SEATS -- AERIO .
  3. Remove 4 speaker mounting screws (1).
  4. Disconnect speaker coupler (2) from woofer speaker (3).

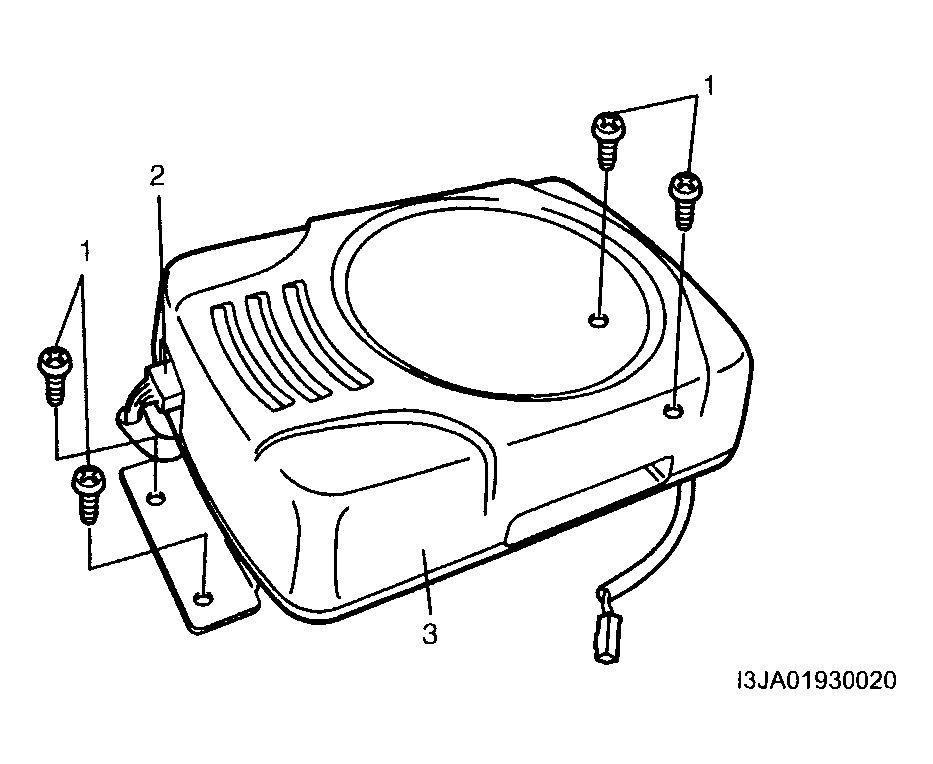

    Fig 1: Disconnecting Speaker Coupler From Woofer Speaker
    G04016121Courtesy of SUZUKI OF AMERICA CORP.
