Oil Pressure Switch On-Vehicle Inspection

  1. Disconnect oil pressure switch (1) lead wire.
  2. Check for continuity between oil pressure switch terminal (2) and cylinder block (3) as shown.

    If check result is not as specified, replace oil pressure switch (1).

    Oil pressure sensor specification

    During engine running: No continuity

    At engine stop: Continuity

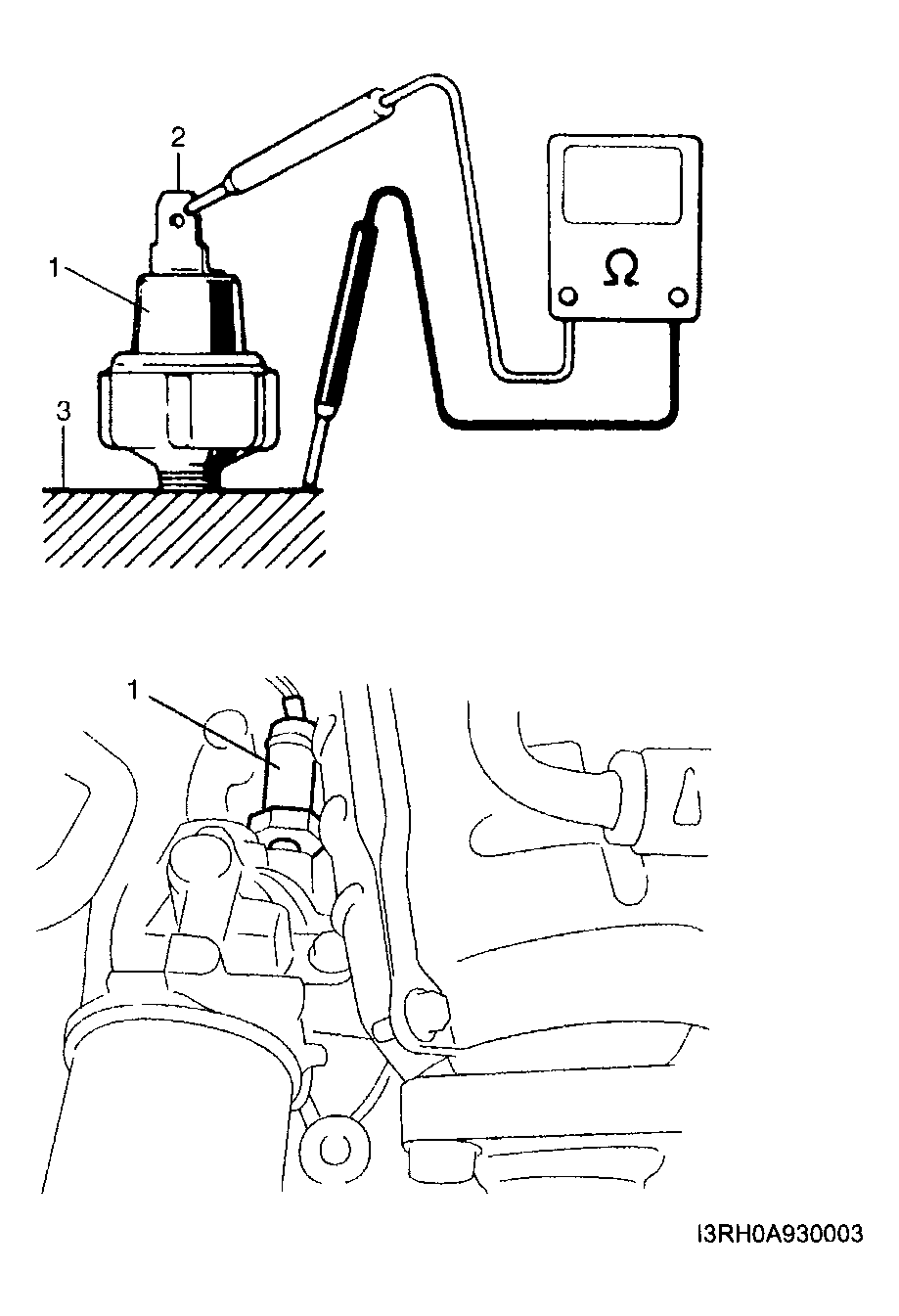

    Fig 1: Checking Continuity Between Oil Pressure Switch Terminal And Cylinder Block
    G04016097Courtesy of SUZUKI OF AMERICA CORP.
