Instrument Panel Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Disable air bag system referring to DISABLING AIR BAG SYSTEM .
  3. Remove steering column hole cover.
  4. Detach steering lower shaft referring to STEERING LOWER SHAFT REMOVAL AND INSTALLATION .
  5. Remove glove box (1) and hood latch release lever (2).
    Fig 1: Removing Glove Box And Hood Latch Release Lever
    G04016106Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove console box referring to CONSOLE BOX COMPONENTS .
  7. Remove instrument panel center lower covers (1).

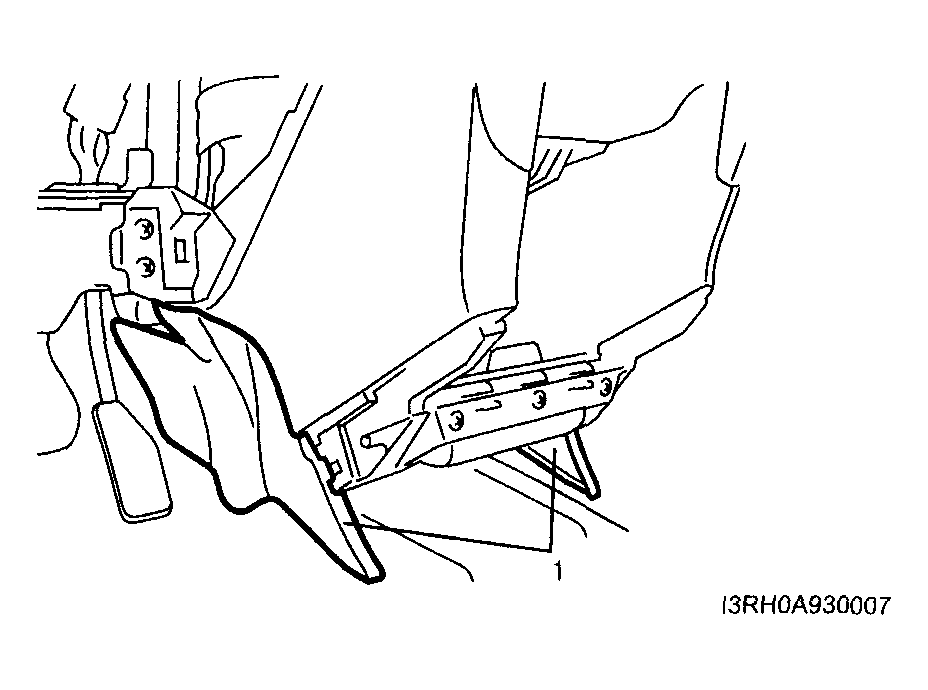

    Fig 2: Removing Instrument Panel Center Lower Covers
    G04016107Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove front pillar trims (1), front pillar lower garnishes (2), front side sill scuffs (3) and dash side trims (4).
    Fig 3: Removing Front Pillar Trims, Front Pillar Lower Garnishes, Front Side Sill Scuffs And Dash Side Trims
    G04016108Courtesy of SUZUKI OF AMERICA CORP.
  9. Disconnect instrument panel harness connectors and antenna cable which need to be disconnected for removal for instrument panel.
  10. Remove instrument panel ground wire.
  11. Remove instrument panel mounting bolts (1).
  12. Remove instrument panel (2) with steering column, steering support member (3) and instrument panel harness.

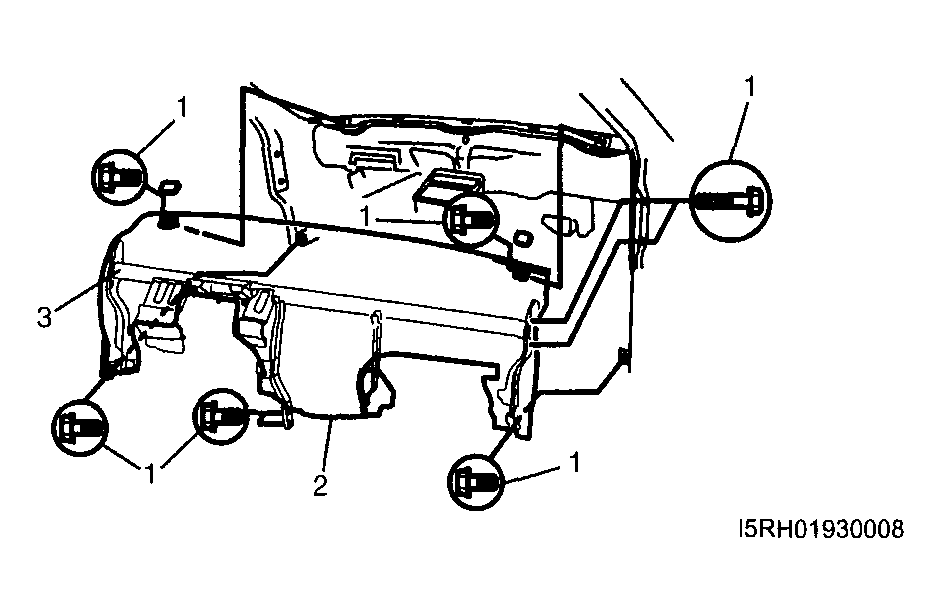

    Fig 4: Removing Instrument Panel With Steering Column, Steering Support Member And Instrument Panel Harness
    G04016109Courtesy of SUZUKI OF AMERICA CORP.
