Ignition Switch Inspection

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

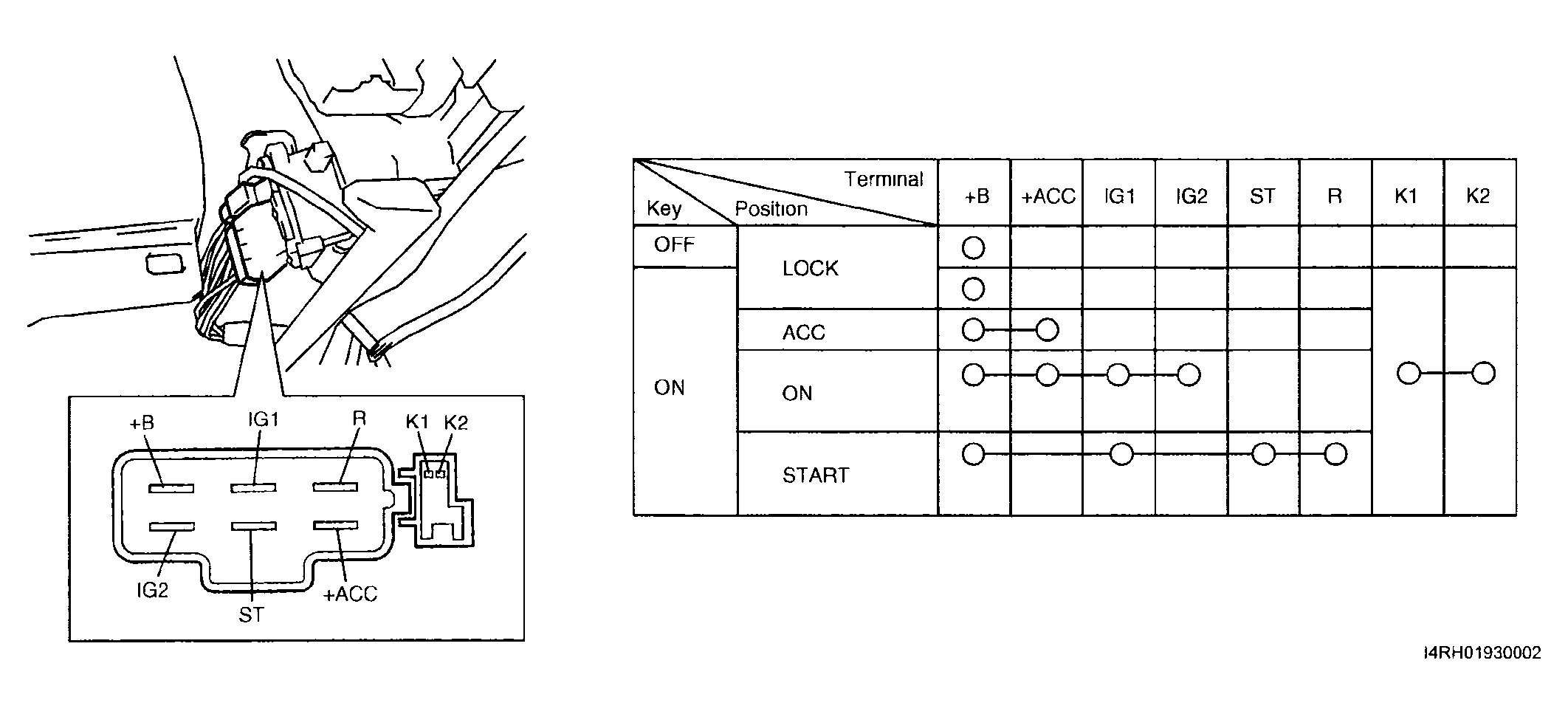

Fig 1: Identifying Ignition Switch Connector Terminals
Courtesy of SUZUKI OF AMERICA CORP.
