Rear Wiper and Washer Switch Inspection

Rear Wiper and Washer Switch Inspection

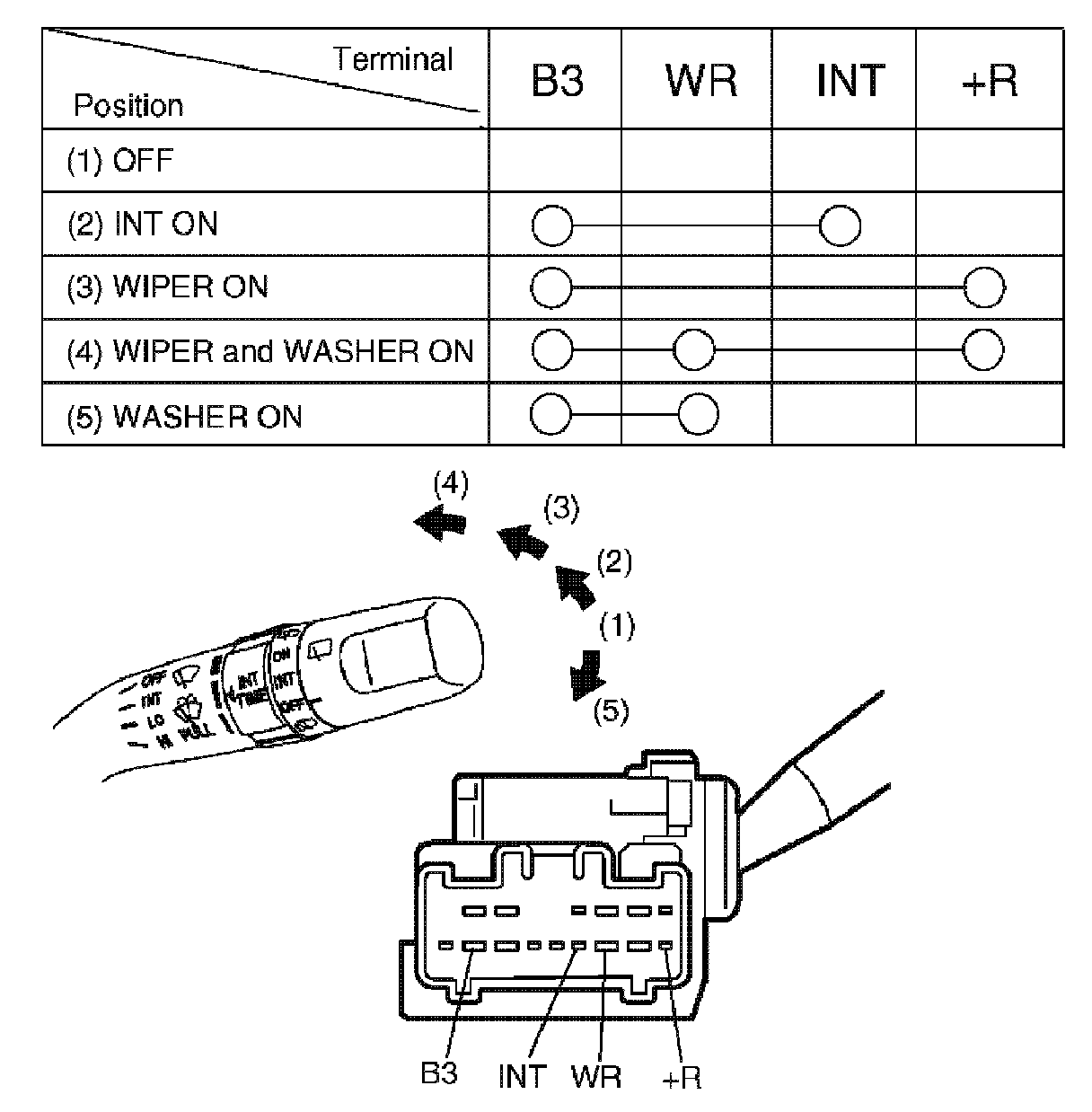

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
