Door Lock Cylinder Switch: Testing and Inspection

Door Key Cylinder Switch (Driver and Passenger Side) Inspection

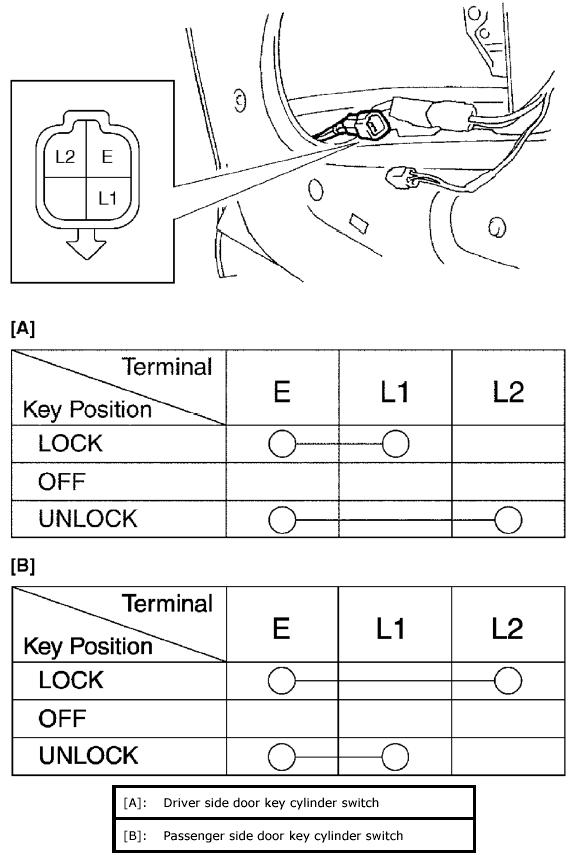

Check for continuity between terminals at each switch position. If check result is not as specified, replace key cylinder.
