Home >> Suzuki >> 2005 >> Aerio L4-2.3L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Turn Signal Switch >> Testing and Inspection

Turn Signal Switch: Testing and Inspection

Turn Signal Light Switch (in Lighting Switch) Inspection

Reference: Lighting Switch (Including Headlight Switch and Turn Signal Light Switch) Removal and Installation

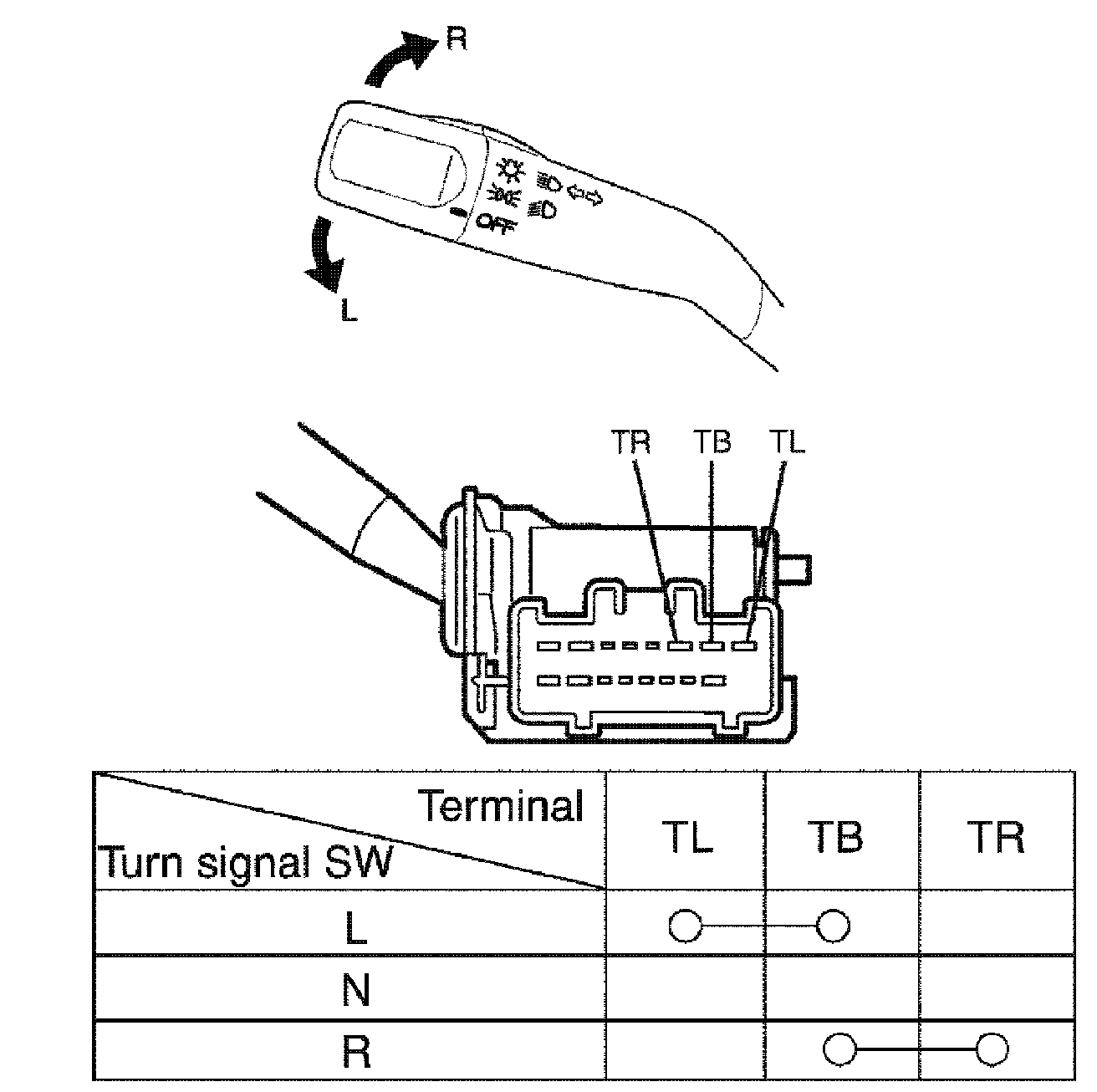

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
