Turn Signal Switch: Service and Repair

Lighting Switch (Including Headlight Switch and Turn Signal Light Switch) Removal and Installation

Removal
1. Disconnect negative cable at battery.

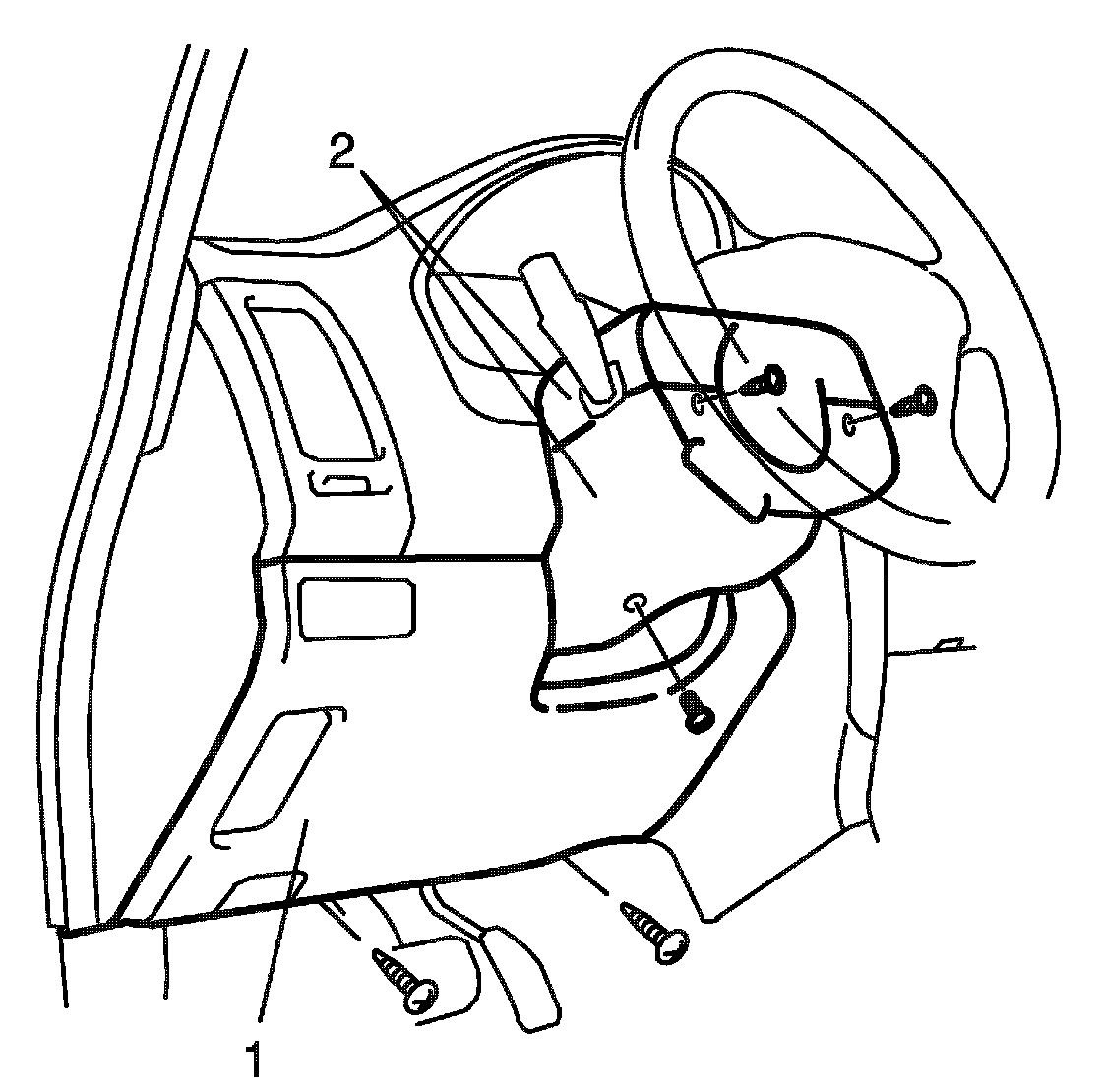

2. Remove steering column hole cover (1).
3. Remove steering column covers (2).
Turn steering wheel to access steering column cover rearend screws.




4. Remove lighting switch (1) from combination switch assembly (2) and disconnect its coupler (3).

Installation
Reference: Headlight Switch (in Lighting Switch) Inspection
Reference: Turn Signal Light Switch (in Lighting Switch) Inspection

Reverse removal procedure for installation.
