Headlamp Switch: Testing and Inspection

Headlight Switch (in Lighting Switch) Inspection

Reference: Lighting Switch (Including Headlight Switch and Turn Signal Light Switch) Removal and Installation

Headlight Switch (in Lighting Switch) Inspection:

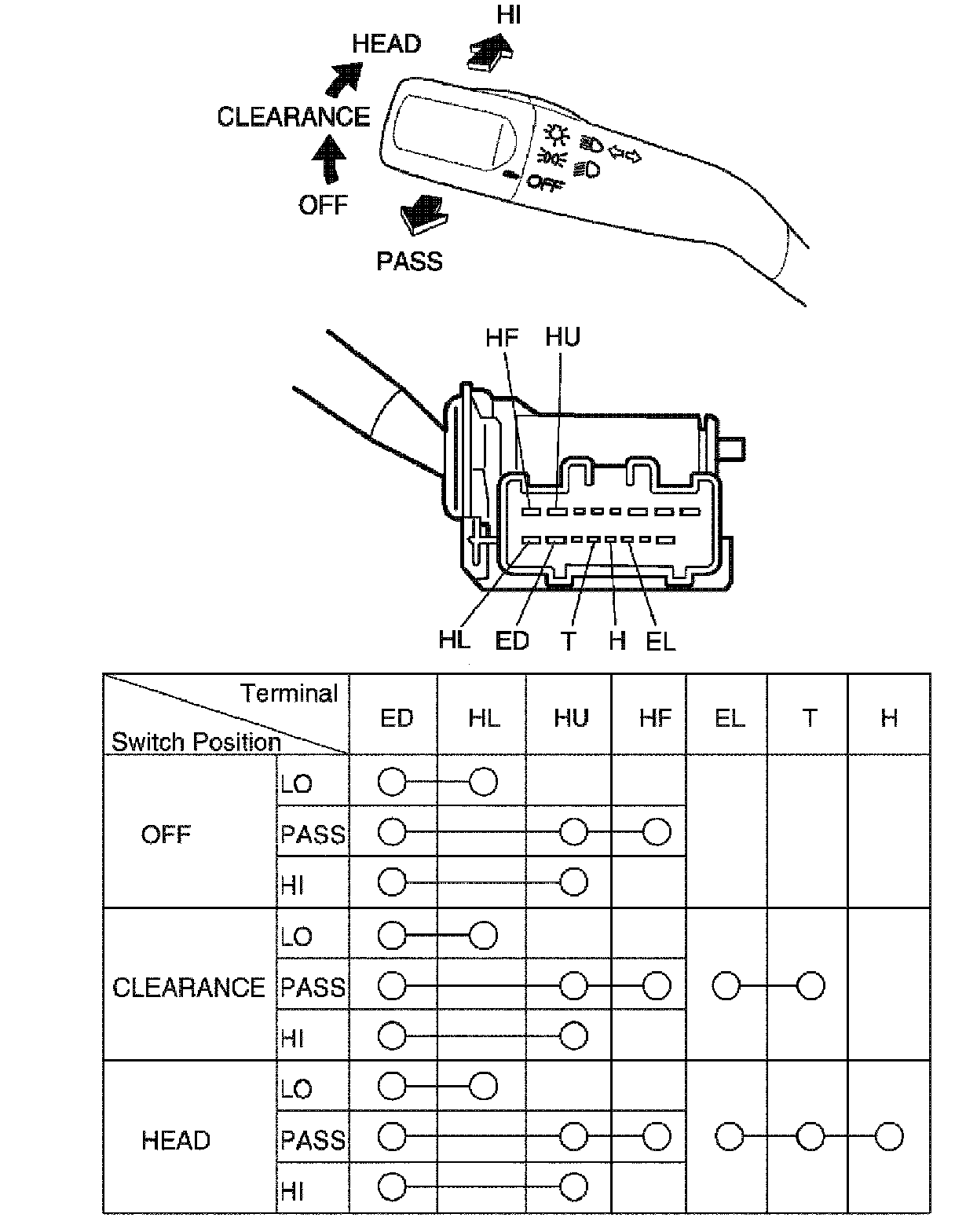

Check for continuity between terminals at each switch position as shown in the figure. If check result is not as specified, replace switch.
