Brake Light Switch: Testing and Inspection

Brake Light Switch Inspection

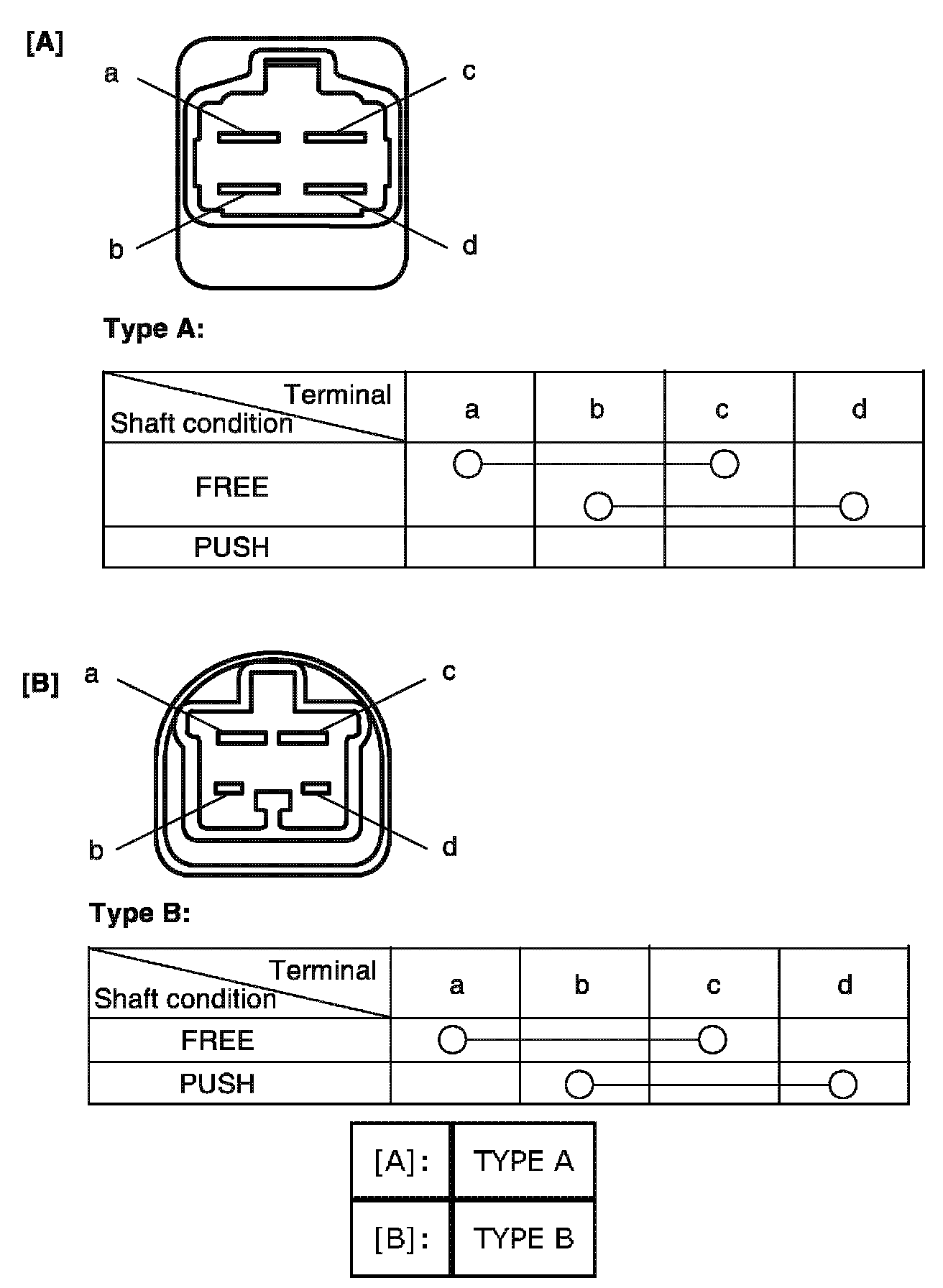

Check brake light switch for continuity between terminals at each switch position.If check result is not as specified, replace switch.
