Fuel Delivery and Air Induction

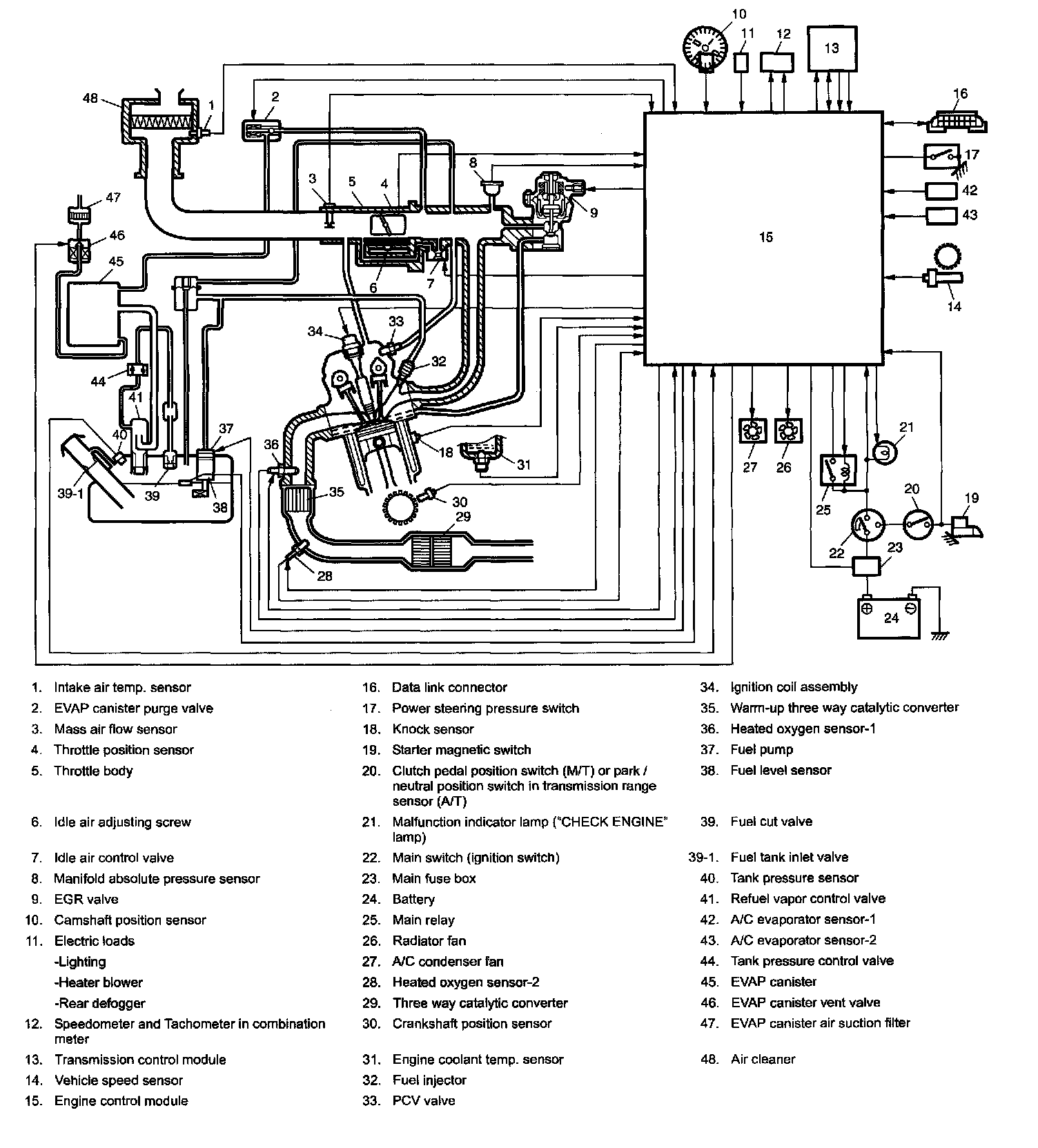

Engine And Emission Control System Diagram:

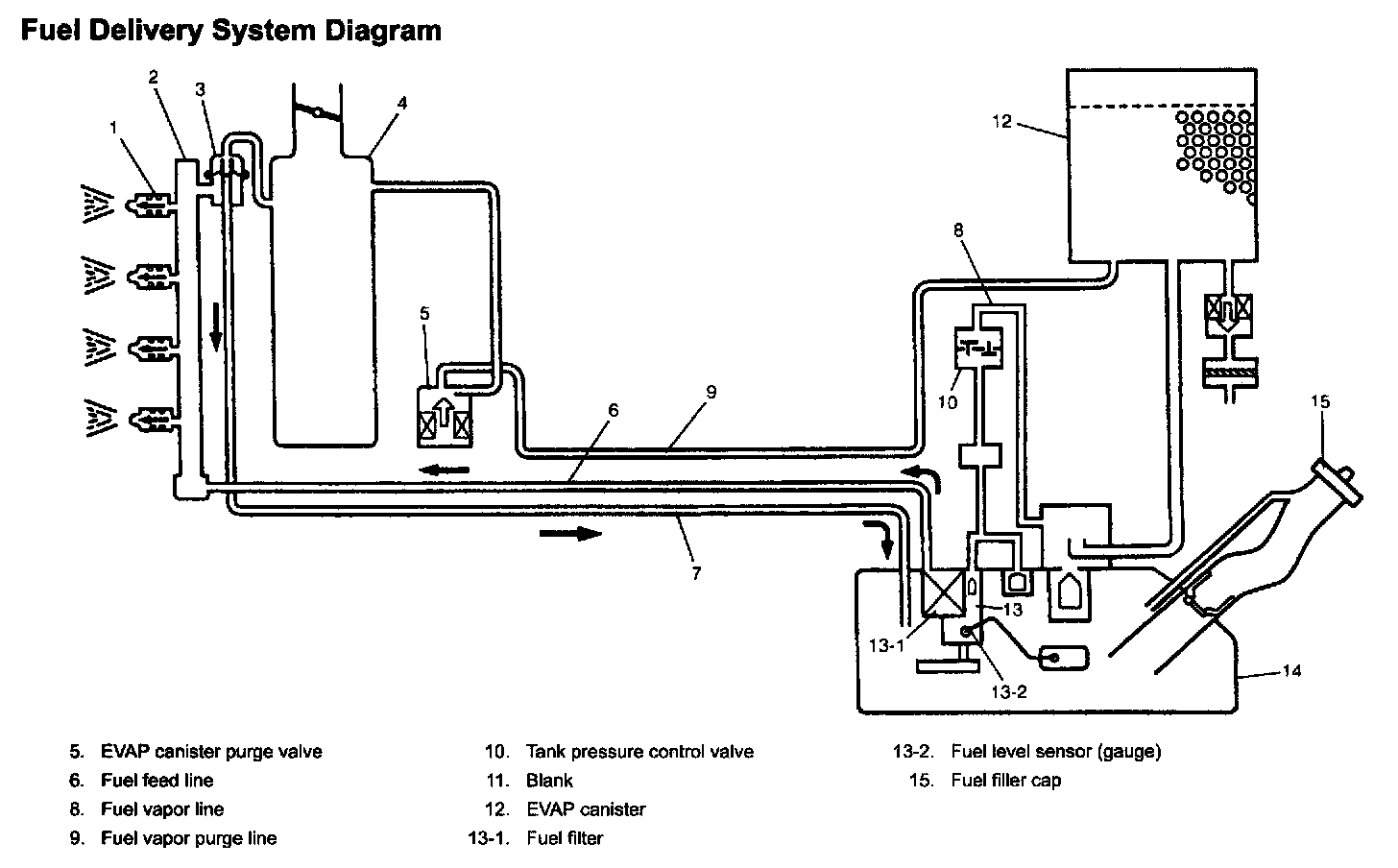

Schematic And Routing Diagram:
