Remote Audio Control Switch Inspection
Remote Audio Control Switch Inspection1. Remove driver air bag (inflator) module.
2. Disconnect remote audio control switch connector from contact coil.

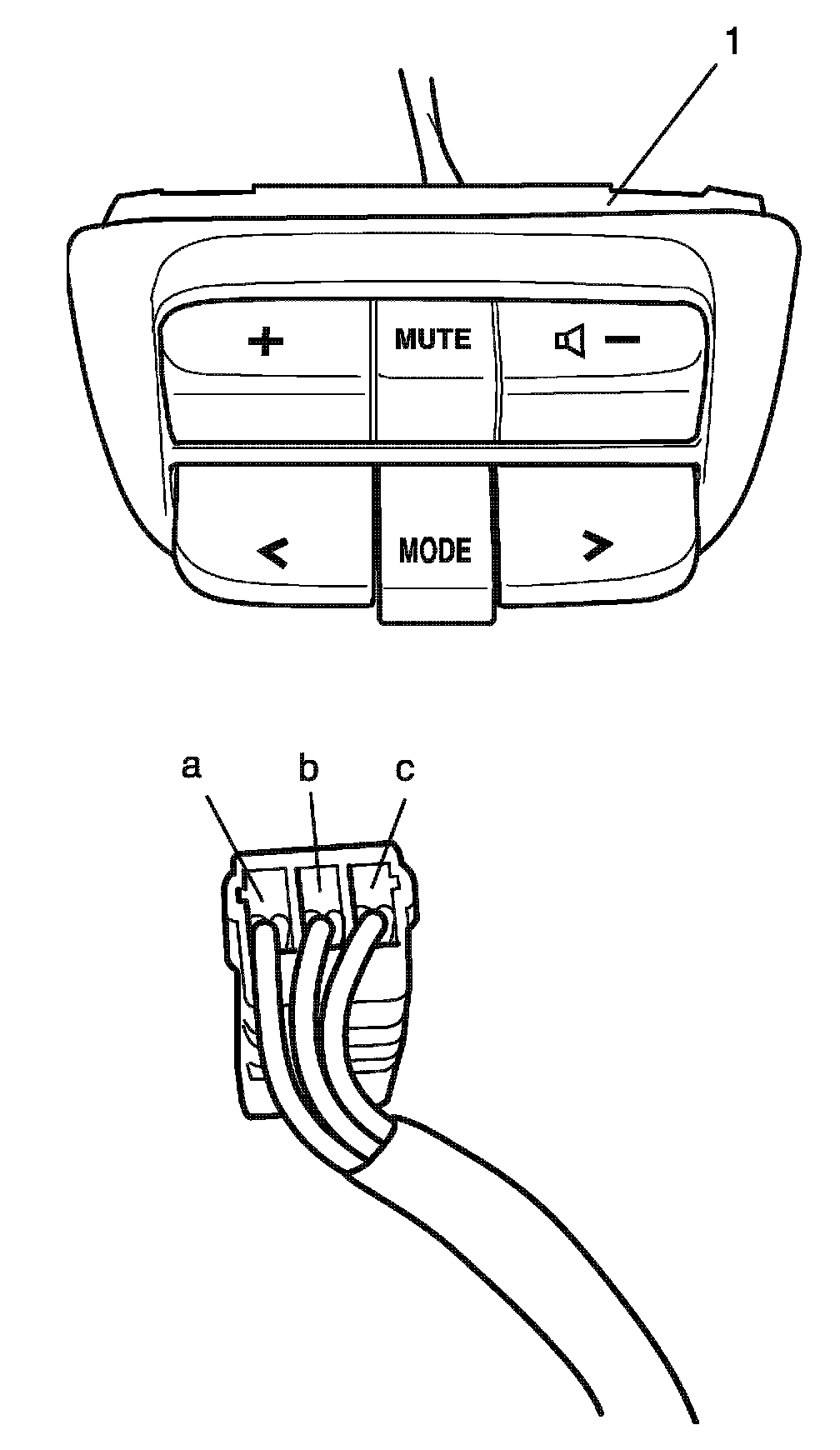

3. Check switch (1) for resistance between "a" and "c" terminals under each condition below. If check result is not satisfactory, replace remote audio control switch.
"MUTE", "+" and "-" switch resistance
All switches released (OFF): 90 - 110 kilo ohm.
"MUTE" switch pushing on (ON): 313 - 345 ohm.
"+" switch pushing on (ON): 950 - 1050 ohm.
"-" switch pushing on (ON): 2955 - 3265 ohm.
4. Check switch (1) for resistance between "b" and "c" terminals under each condition below. If check result is not satisfactory, replace remote audio control switch.
"MODE", "<" and ">" switch resistance
All switches released (OFF): 90 - 110 kilo ohm.
"MODE" switch pushing on (ON): 313 - 345 ohm.
"<" switch pushing on (ON): 950 - 1050 ohm.
">" switch pushing on (ON): 2955 - 3265 ohm.
