Diagnostic Trouble Codes Trouble Shooting

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

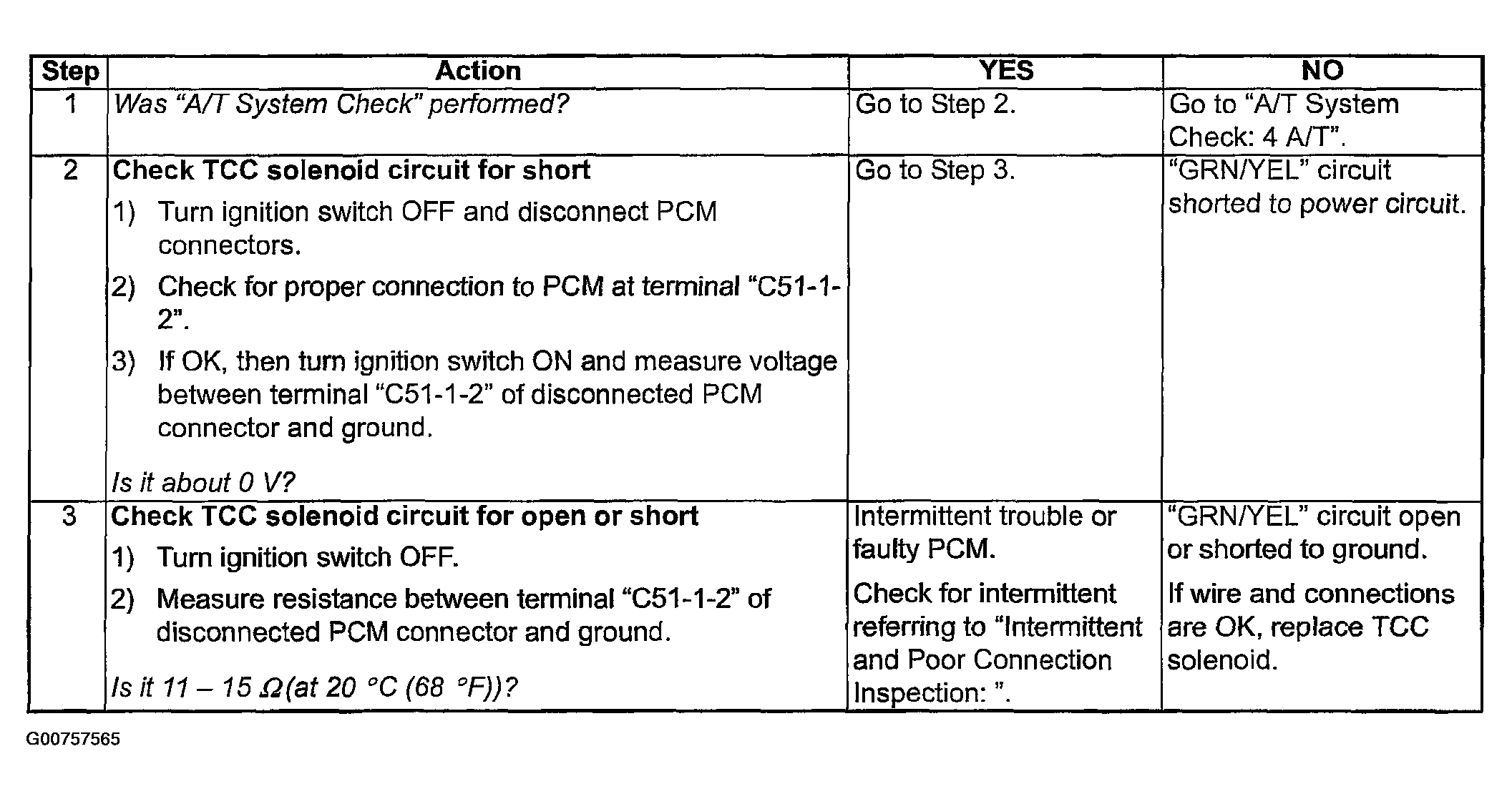

Fig 1: DTC P2769/P2770 Trouble Shooting Chart
G00757565Courtesy of SUZUKI OF AMERICA CORP.
