Diagnostic Trouble Codes Detecting Condition and Trouble Area

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

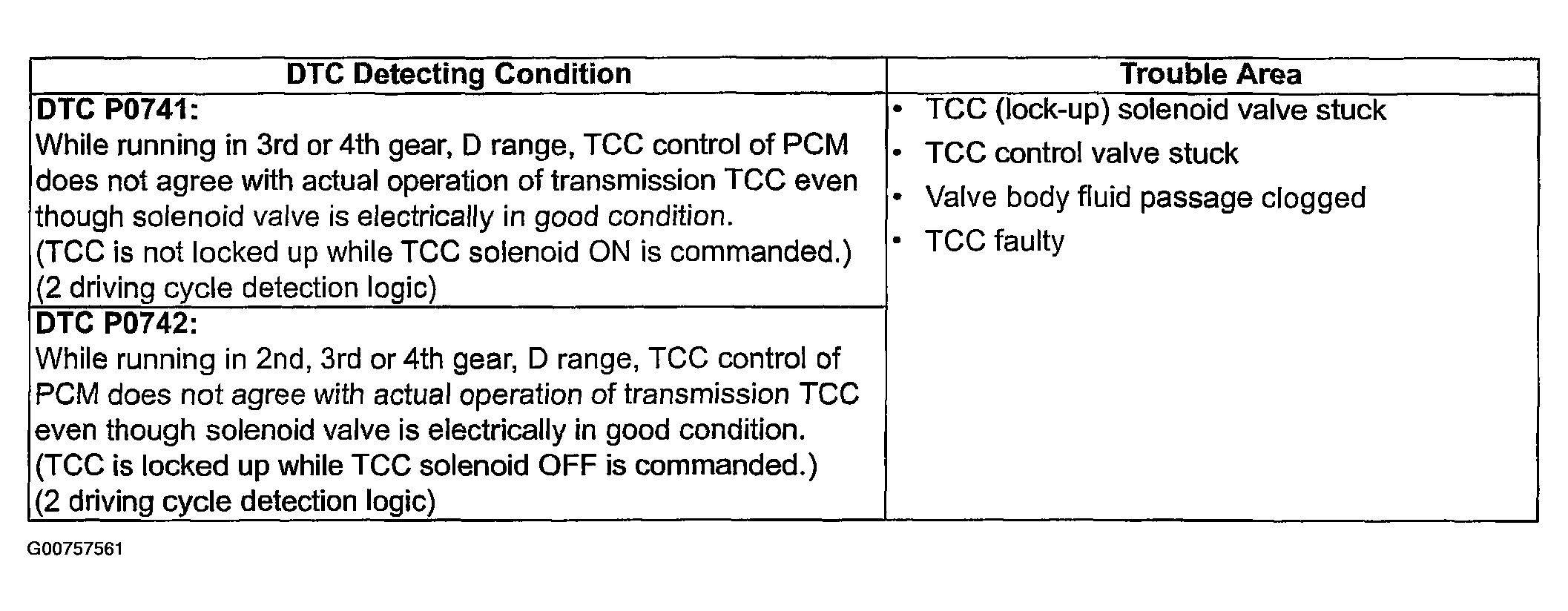

Fig 1: DTC P0741/P0742 Detecting Condition & Trouble Area Chart
G00757561Courtesy of SUZUKI OF AMERICA CORP.
