"POWER" Light Comes ON Steadily: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

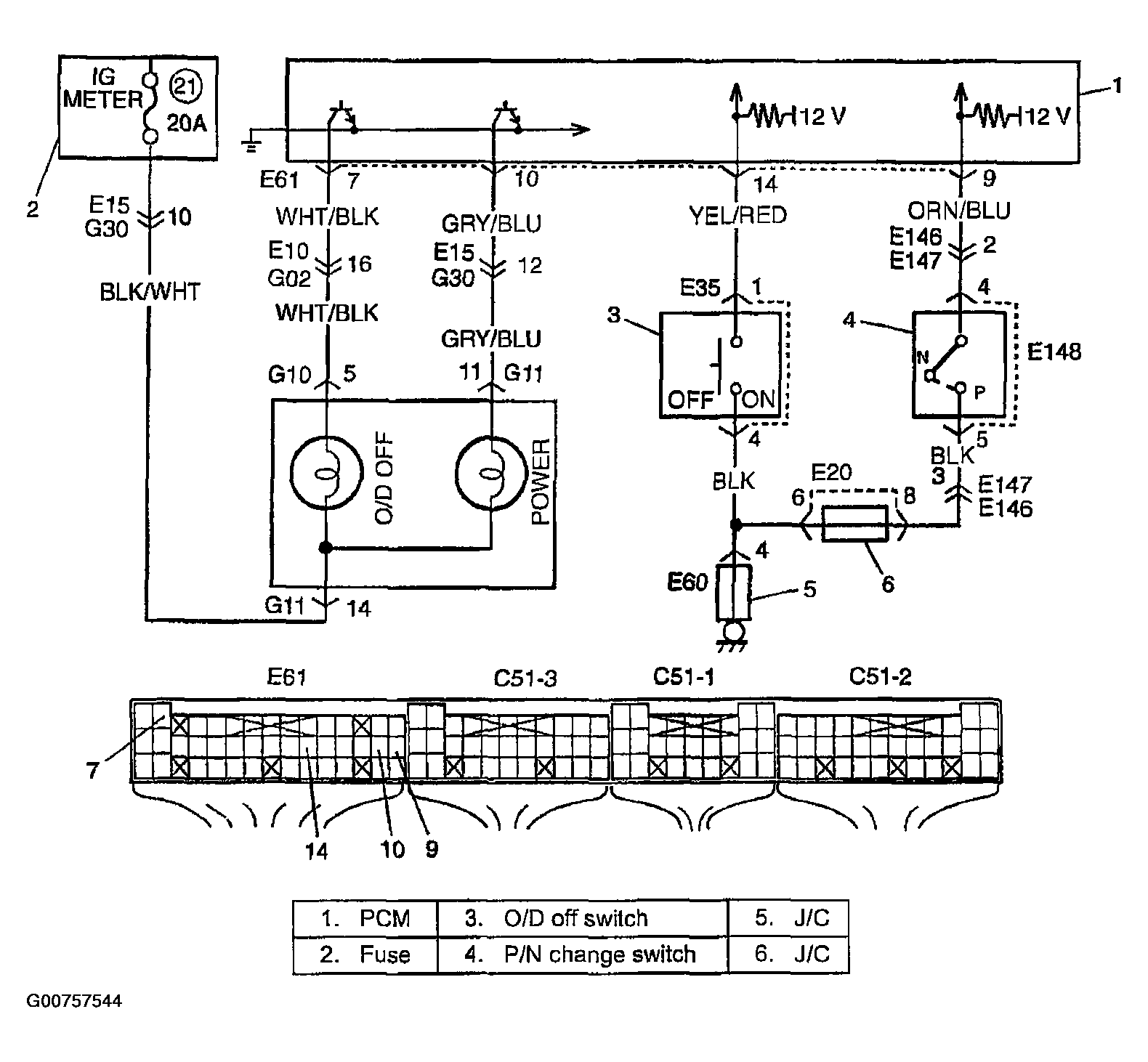

Fig 1: "POWER" Light Comes ON Steadily Wiring Diagram
G00757544Courtesy of SUZUKI OF AMERICA CORP.
