Driver Side Door Switch Inspection

Use an ohmmeter to check switch for continuity. If found defective, replace switch.

Driver side door switch specification

OFF position (Door closed): No continuity

ON position (Door open): Continuity

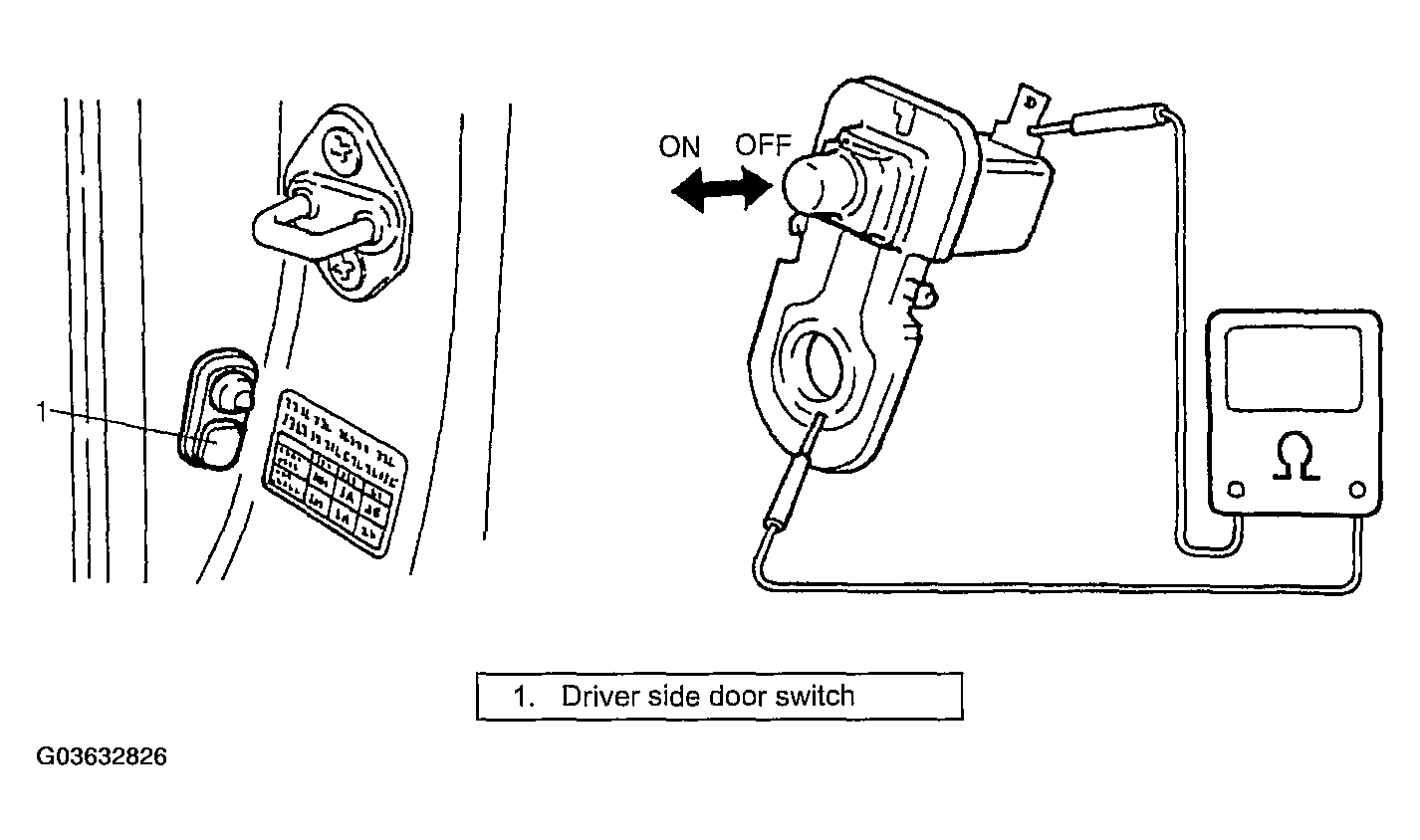

Fig 1: Inspecting Driver Side Door Switch
G03632826Courtesy of SUZUKI OF AMERICA CORP.
