Combination Meter Circuit Diagram
Combination Meter Circuit Diagram

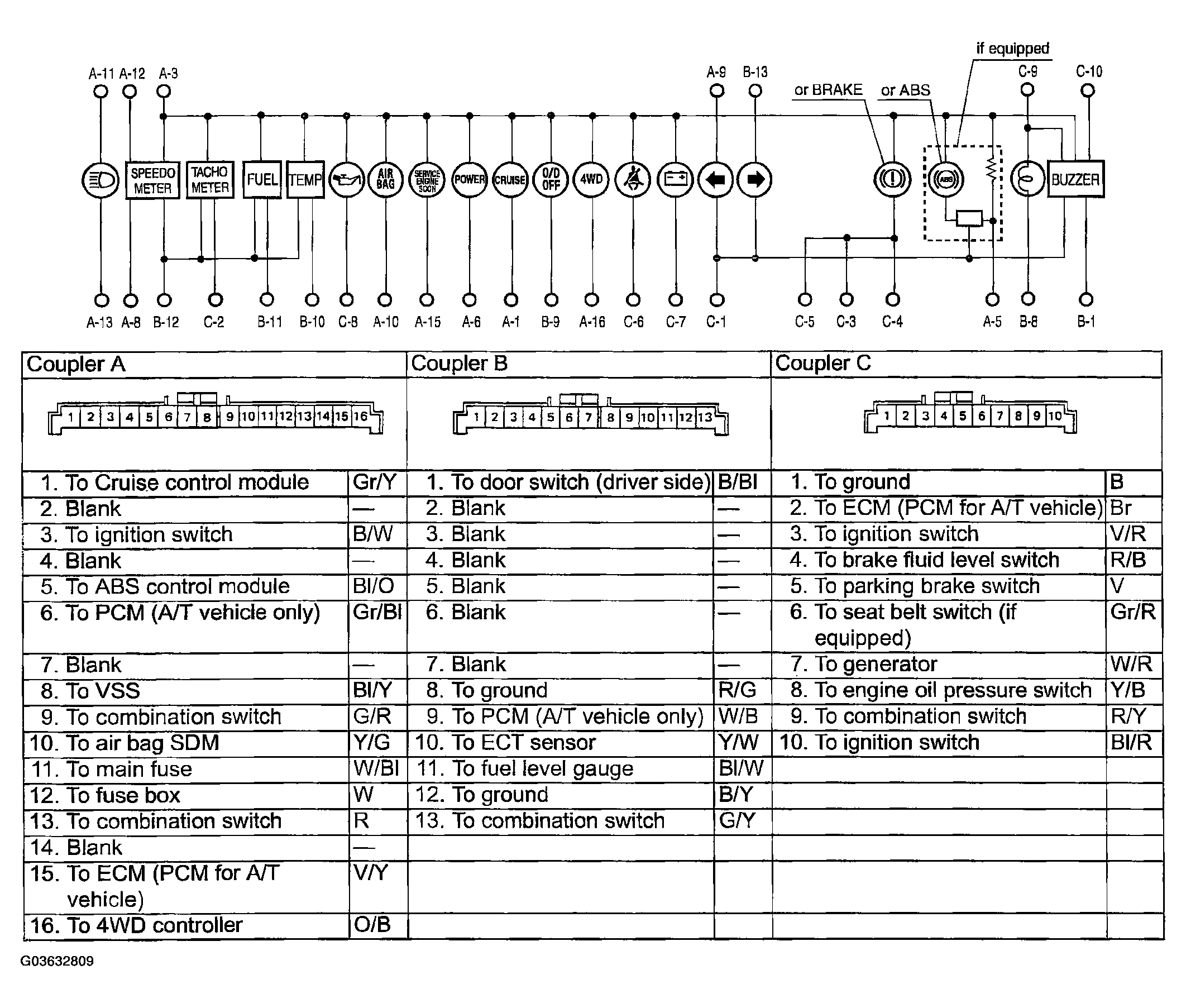

Fig 1: Combination Meter Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
NOTE:
Terminal arrangement of coupler viewed from harness side.
Courtesy of SUZUKI OF AMERICA CORP.
