Driver's Side Knee Bolster Removal

  1. Remove the coin storage and the screws.
  2. Separate the hood release cable from the hood latch release handle.
  3. Carefully pull the instrument panel under cover until the mounting clips are released and the instrument panel under cover.

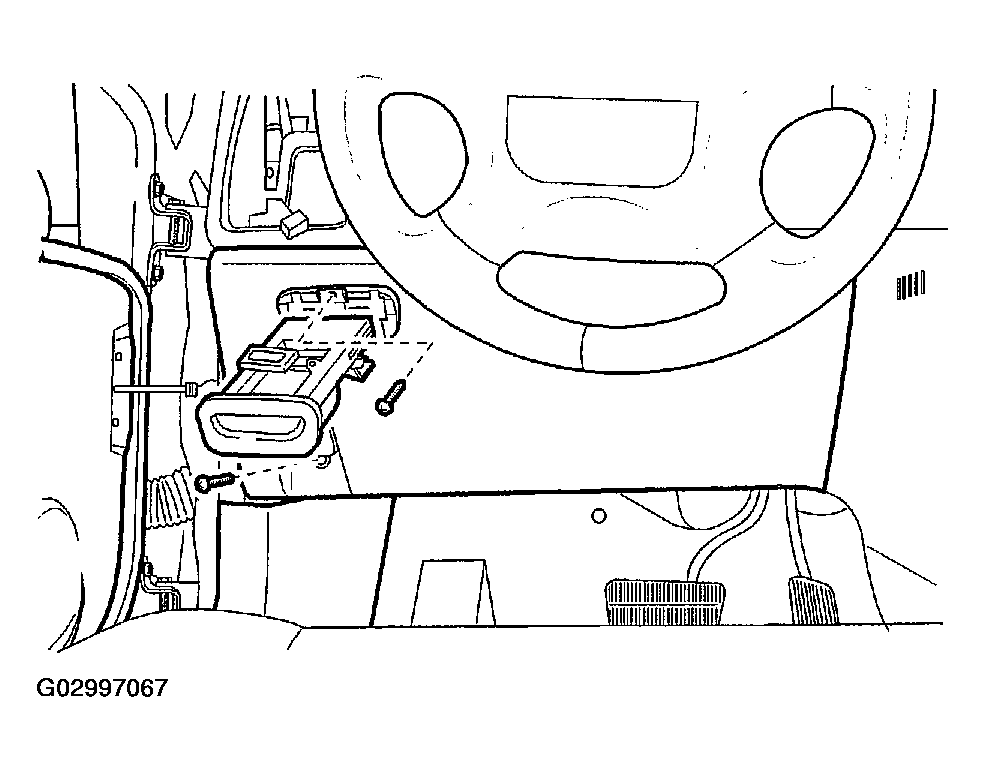

    Fig 1: Pulling Instrument Panel Cover
    G02997067Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the bolts from the driver's side knee bolster.
  5. Remove the knee bolster.

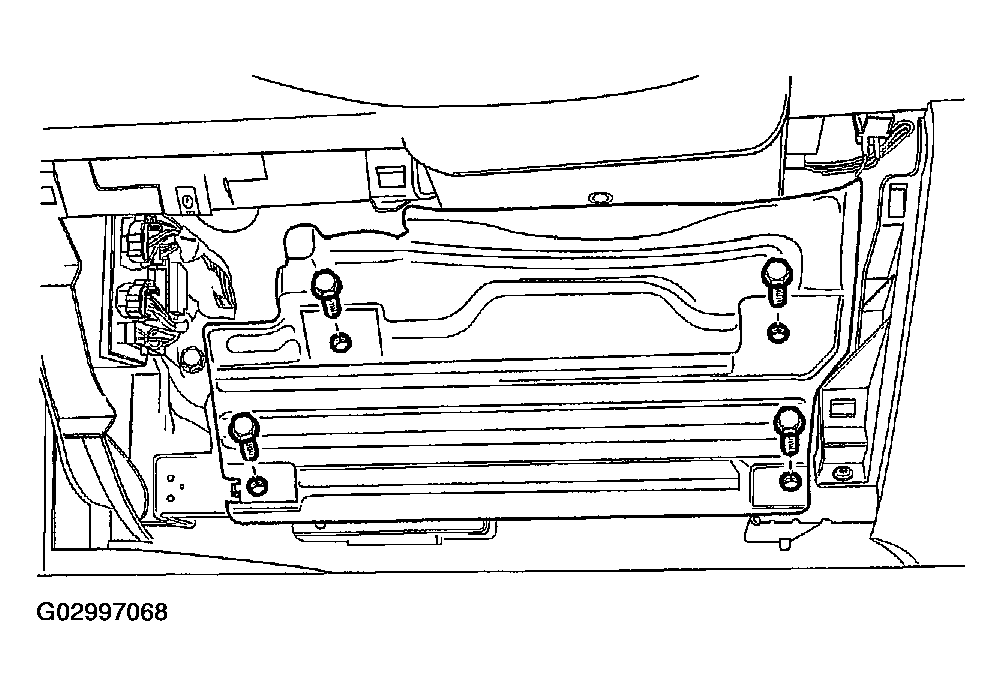

Fig 2: Removing Knee Bolster
G02997068Courtesy of SUZUKI OF AMERICA CORP.
