Stereo Cassette AM/FM Radio Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the negative battery cable.
  3. Remove the screws and the audio system.
  4. Disconnect the audio system electrical connectors.

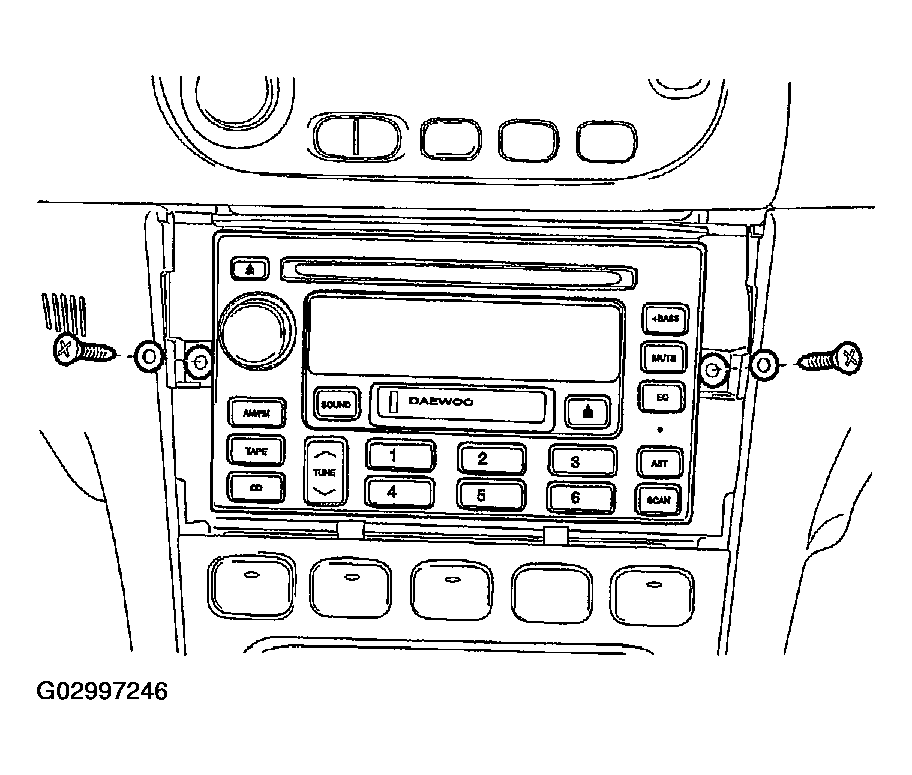

Fig 1: Removing Screws & Audio System
G02997246Courtesy of SUZUKI OF AMERICA CORP.
