Stereo Cassette AM/FM Radio Installation

1. Connect the audio system electrical connectors.
   CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
2. Install the audio system with the screws.
   1. Tighten the audio system screws to 4 N.m (35 lb-in).
3. Install the audio system trim plate.
4. Connect the negative battery cable.

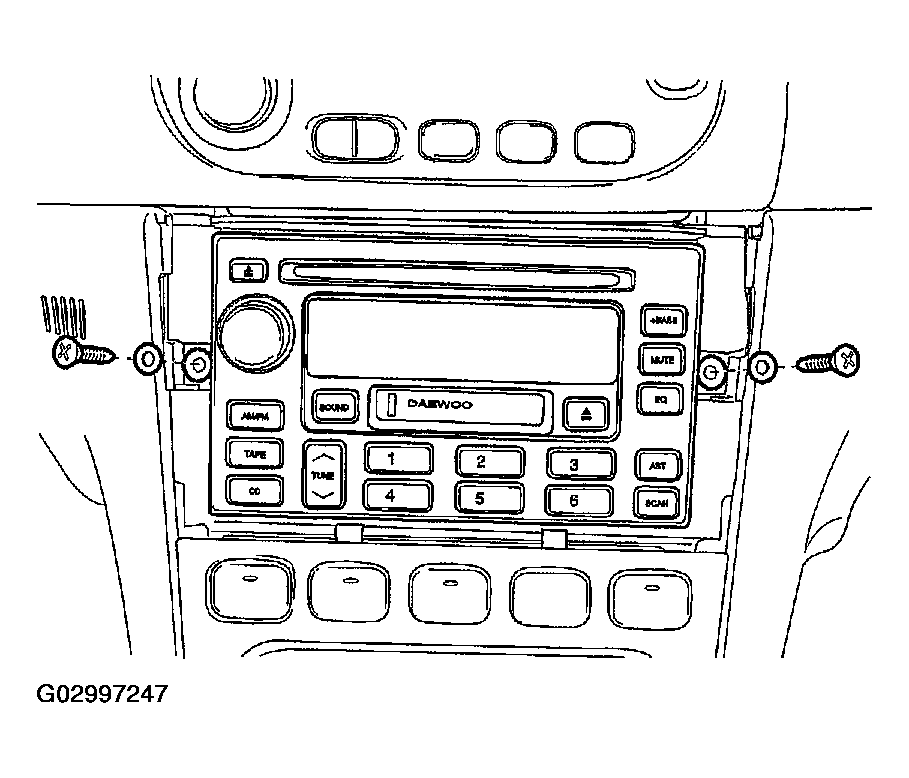

Fig 1: Installing Audio System

Courtesy of SUZUKI OF AMERICA CORP.
