Instrument Cluster Indicator Lamps Specifications

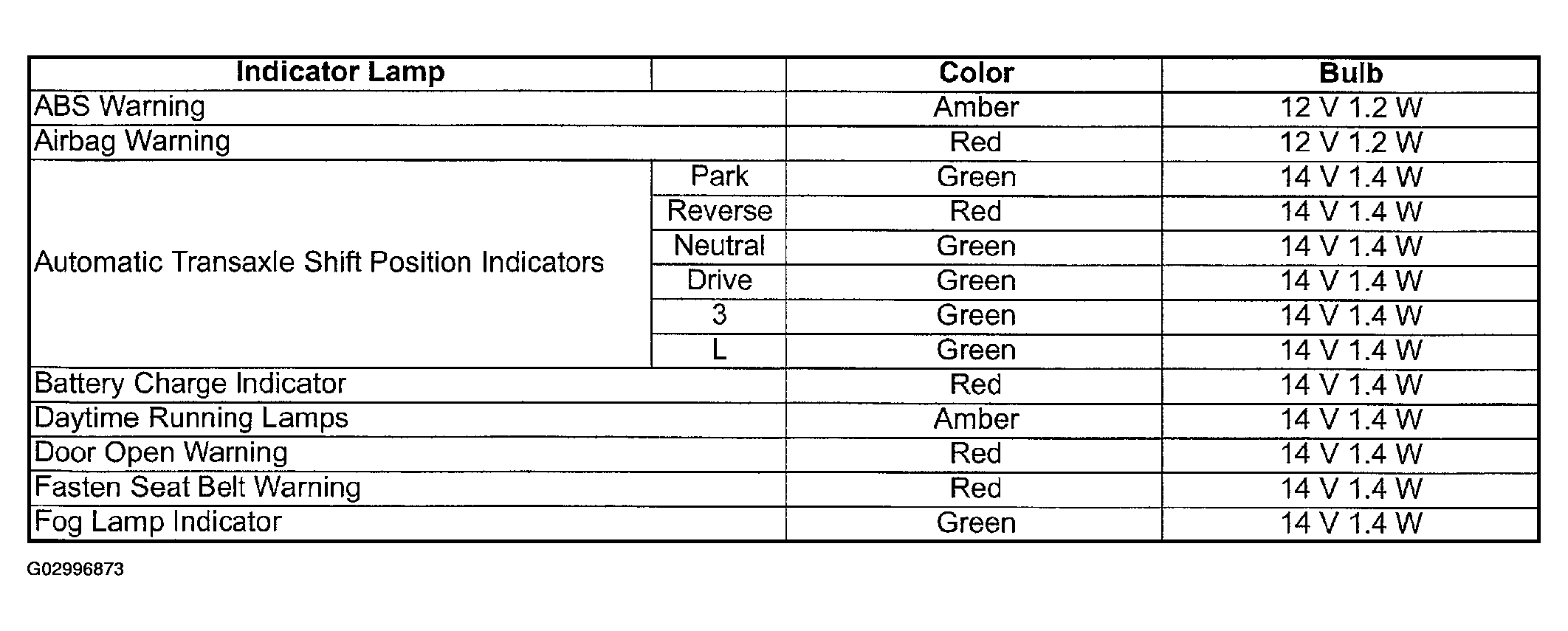

Fig 1: Instrument Cluster Indicator Lamps Specifications (1 Of 2)
G02996873Courtesy of SUZUKI OF AMERICA CORP.

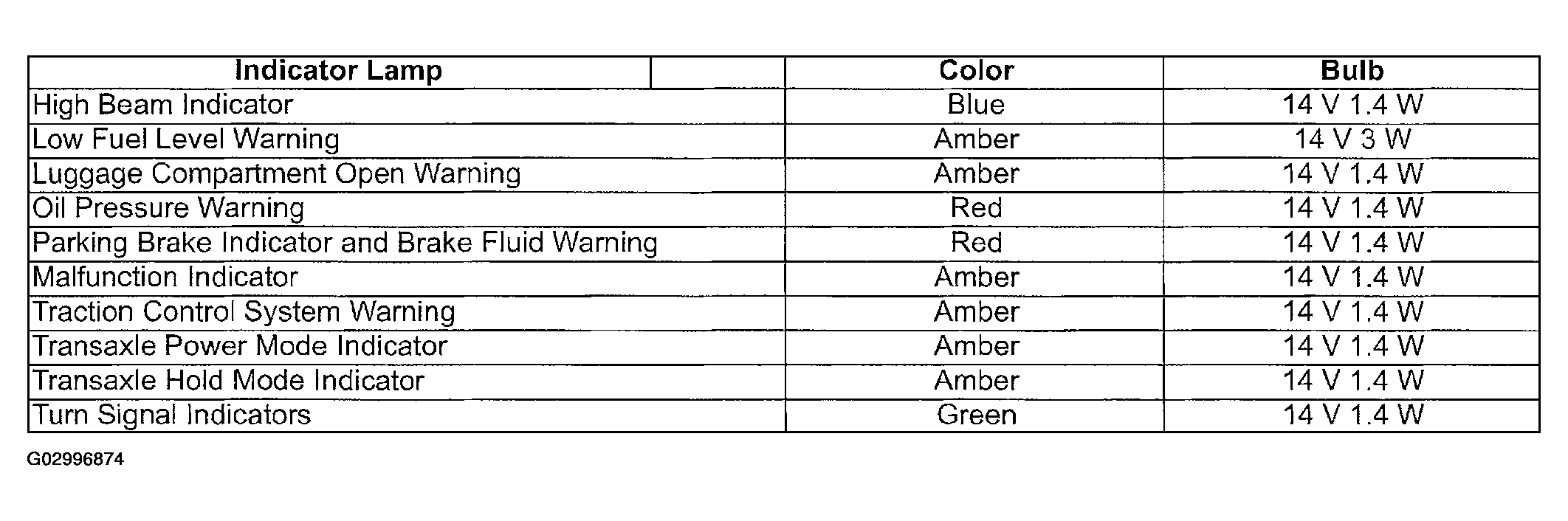

Fig 2: Instrument Cluster Indicator Lamps Specifications (2 Of 2)
G02996874Courtesy of SUZUKI OF AMERICA CORP.
