Schematic and Routing Diagram
Schematic and Routing Diagram

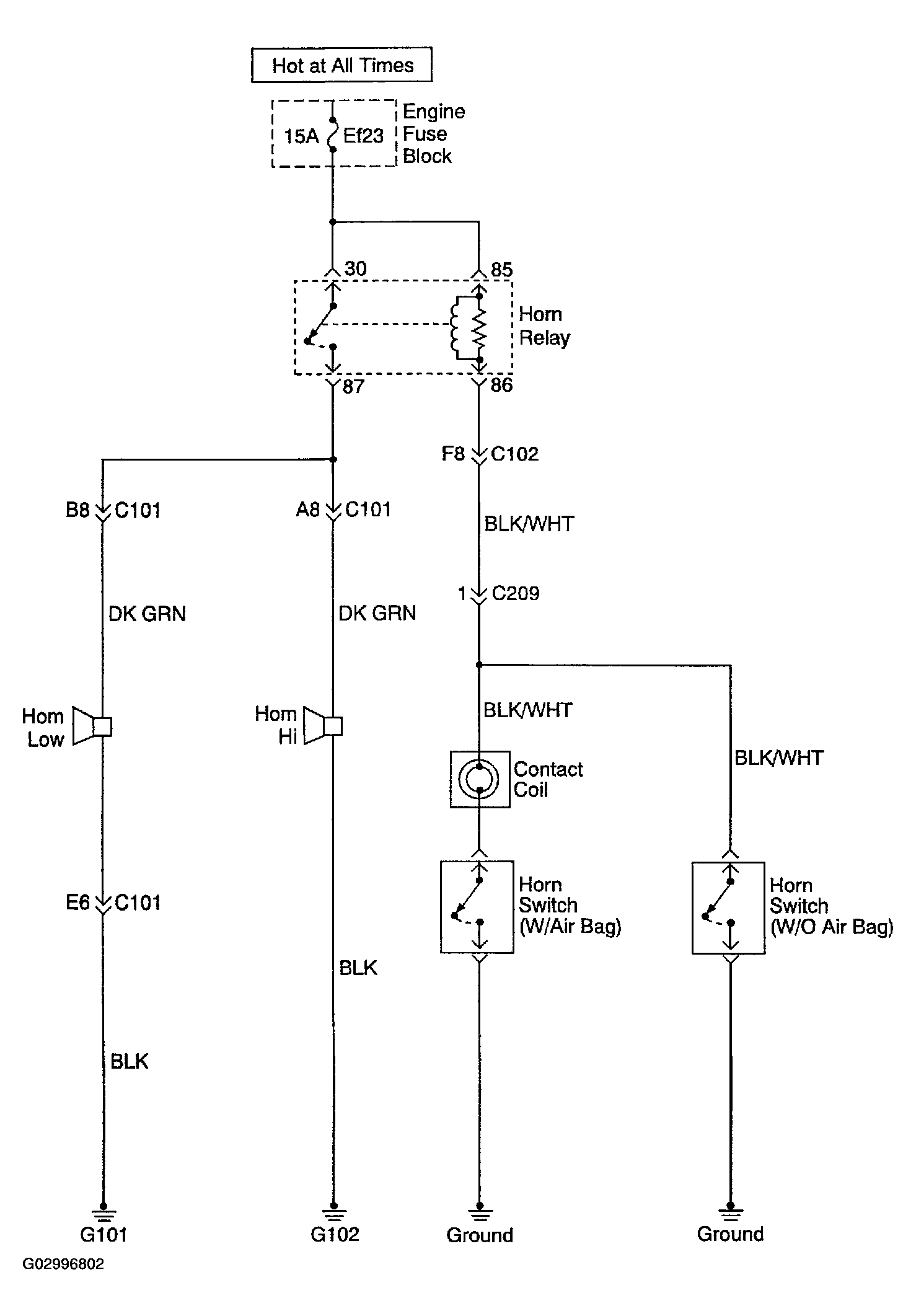

Fig 1: Horn Wiring System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
