Tachometer Installation

  1. Install the tachometer to the instrument cluster.
  2. Install the instrument cluster lens.

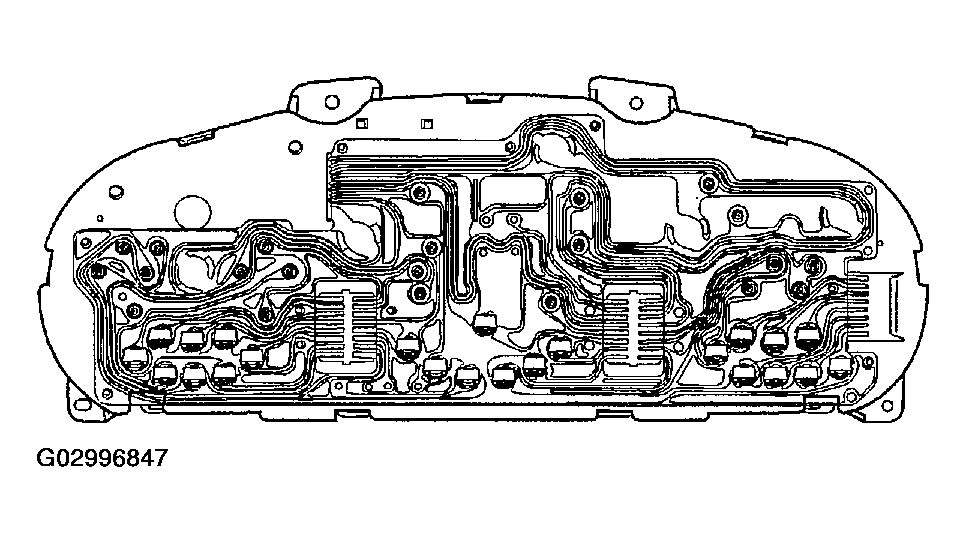

    Fig 1: Installing Tachometer To Instrument Cluster
    G02996847Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the instrument cluster. Refer to Instrument Cluster Installation  .
  4. Connect the negative battery cable.

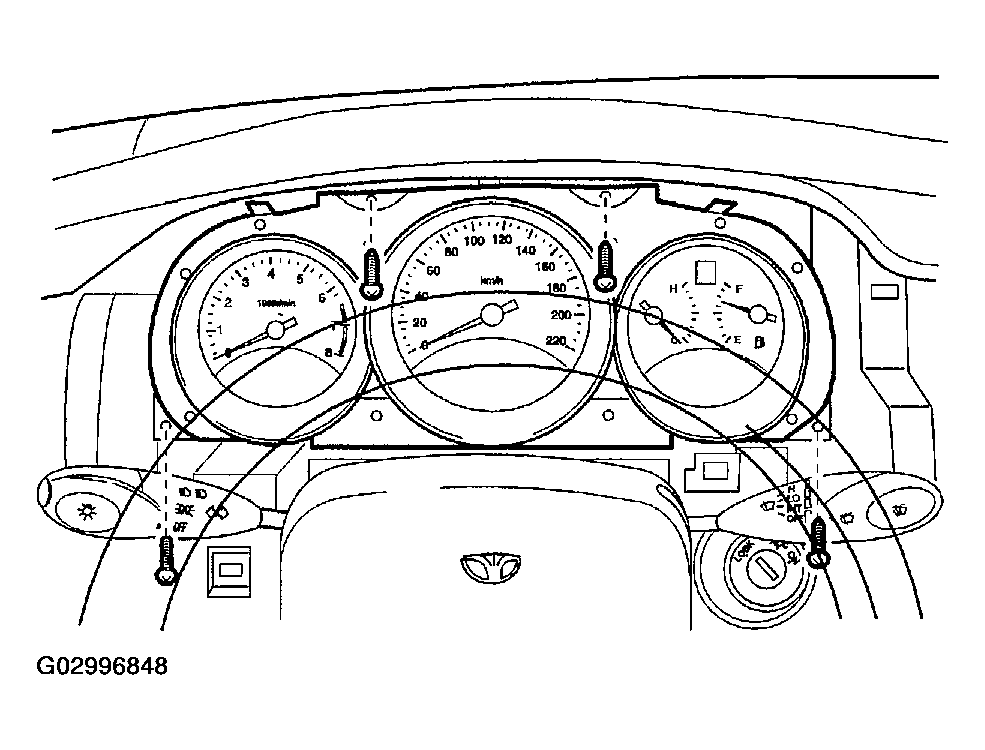

Fig 2: Installing Instrument Cluster Lens
G02996848Courtesy of SUZUKI OF AMERICA CORP.
