Fuel and Temperature Gauge Installation

1. Install the fuel and the temperature gauge to the cluster assembly.

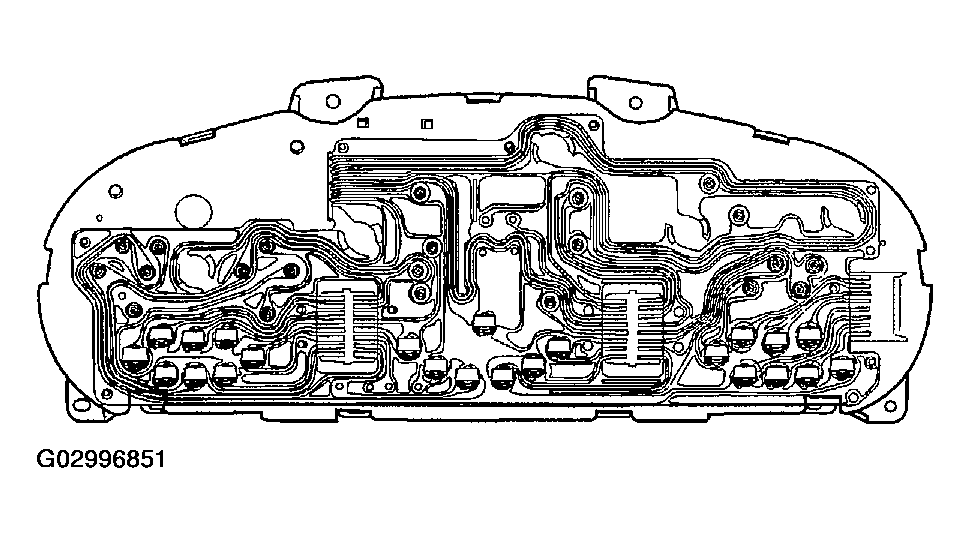

   Fig 1: Installing Fuel & Temperature Gauge

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install the instrument cluster lens.
3. Install the instrument cluster. Refer to Instrument Cluster Installation  .
4. Connect the negative battery cable.

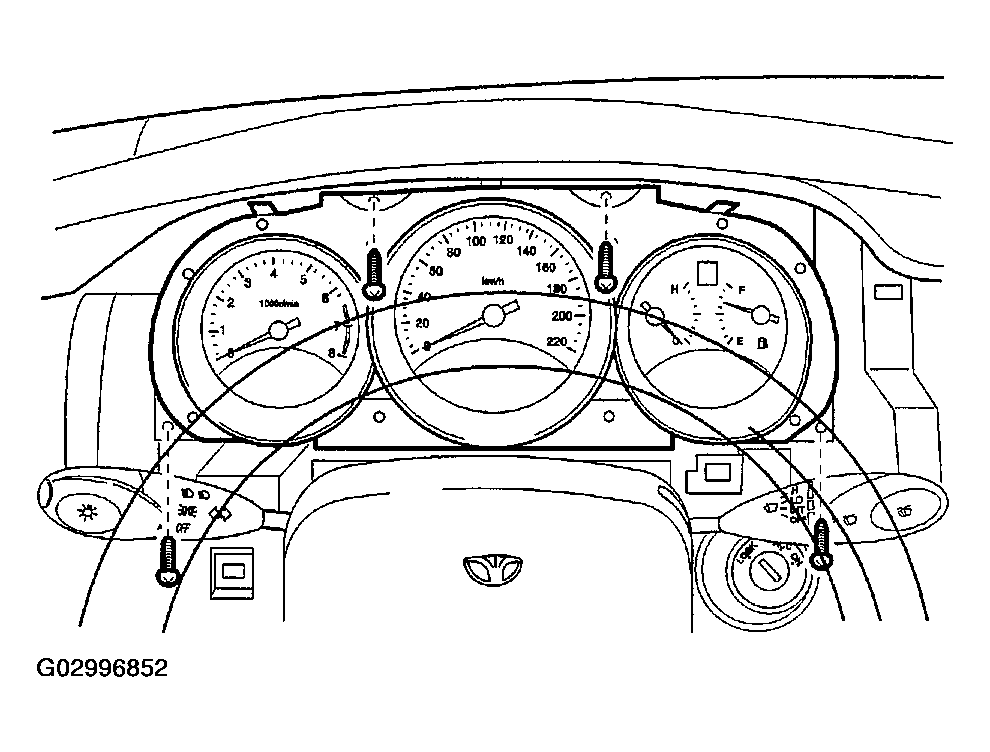

Fig 2: Installing Instrument Cluster Lens

Courtesy of SUZUKI OF AMERICA CORP.
