Dual Horns Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connector.
  3. Remove the bolt and the horn.

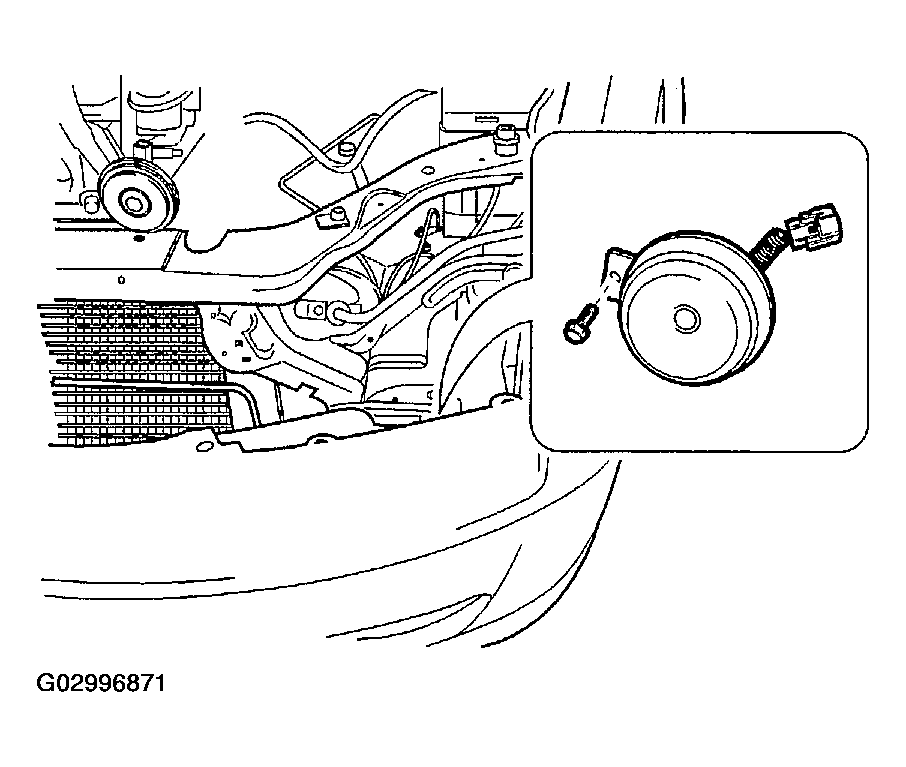

Fig 1: Removing Bolt & Horn
G02996871Courtesy of SUZUKI OF AMERICA CORP.
