Dual Horns Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the horn with the bolt.
    1. Tighten the horn bolt to 9 N.m (80 lb-in).
  2. Connect the electrical connector.
  3. Connect the negative battery cable.

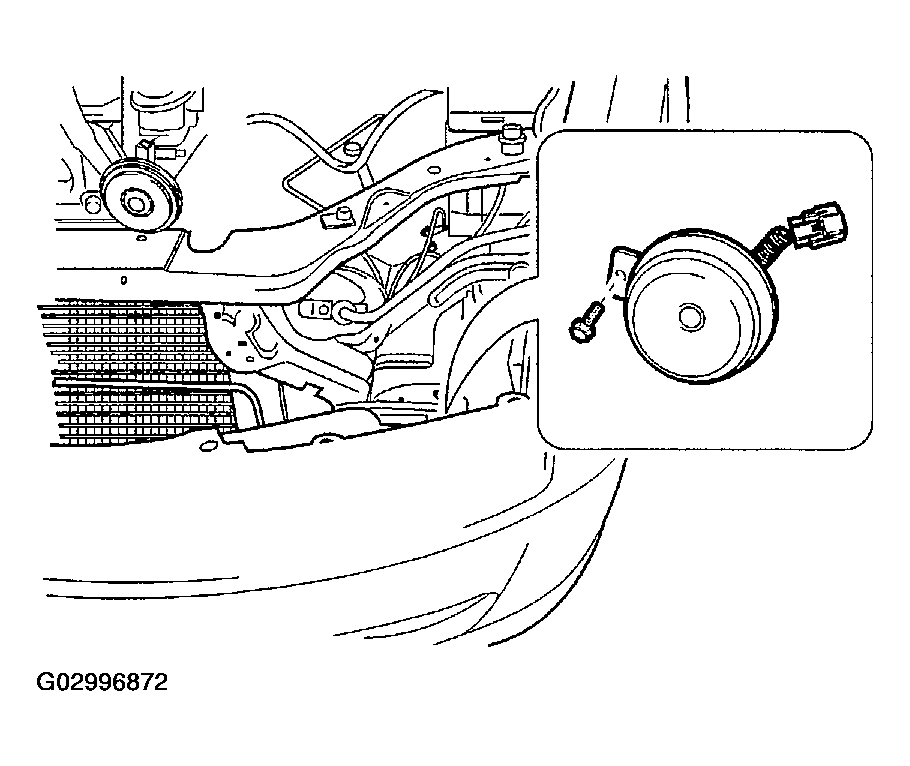

Fig 1: Installing Horn
G02996872Courtesy of SUZUKI OF AMERICA CORP.
