Cigar Lighter Removal

Disconnect the negative battery cable.
Remove the console cover.
Remove the screws and the ashtray trim panel.
Disconnect the electrical connectors.

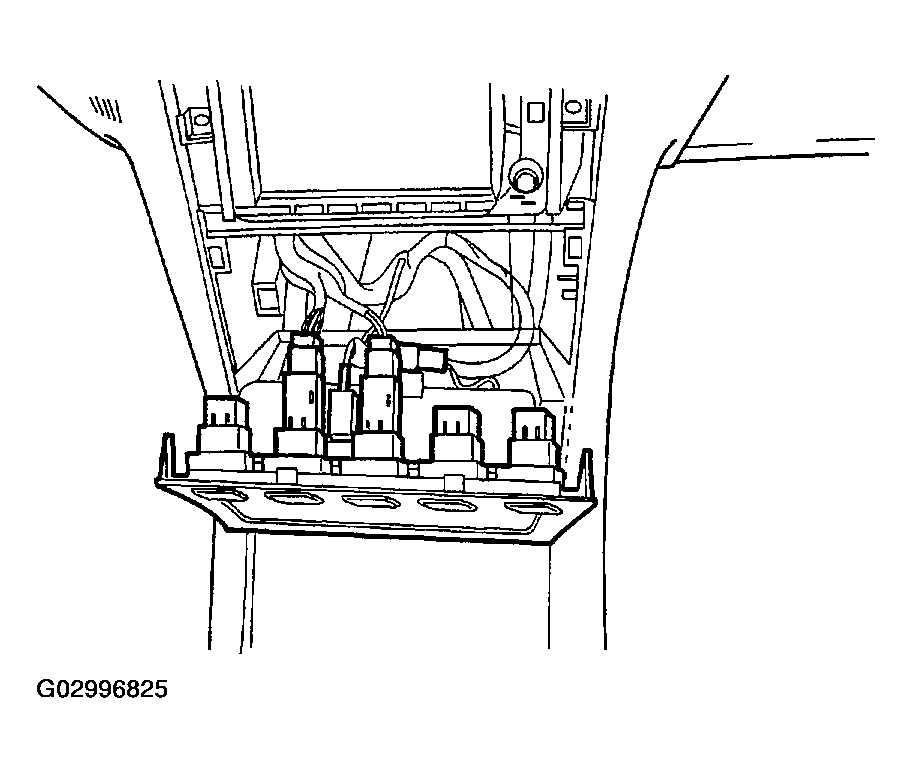

Fig 1: Removing Console Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screws and the ashtray housing.
Disconnect the cigar lighter electrical connector.
Remove the cigar lighter from the cigar lighter housing.
Remove the cigar lighter housing from the ashtray housing.

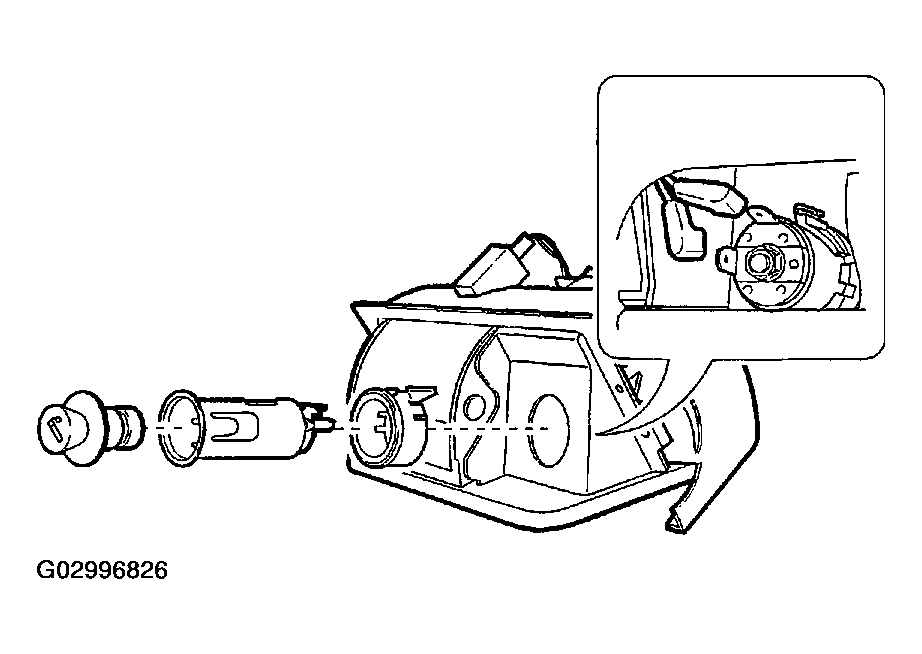

Fig 2: Removing Cigar Lighter Housing From Ashtray Housing

Courtesy of SUZUKI OF AMERICA CORP.
