Cigar Lighter Installation

  1. Install the cigar lighter housing in the ashtray housing.
  2. Install the cigar lighter in the cigar lighter housing.
  3. Connect the cigar lighter electrical connector.
  4. Install the ashtray housing.
    1. Tighten the ashtray housing screws to 2.5 N.m (22 lb-in).

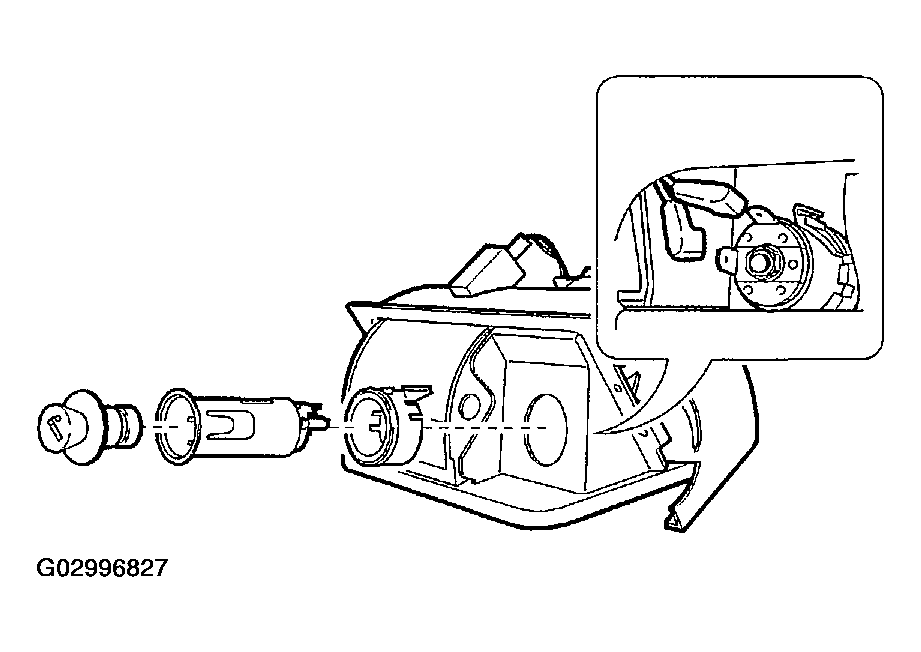

    Fig 1: Installing Ashtray Housing
    G02996827Courtesy of SUZUKI OF AMERICA CORP.
  5. Connect the electrical connectors.
  6. Install the ashtray housing trim panel with the screws.
    1. Tighten the ashtray housing screws to 2.5 N.m (22 lb-in).
  7. Install the shift lever trim panel.
  8. Connect the negative battery cable.

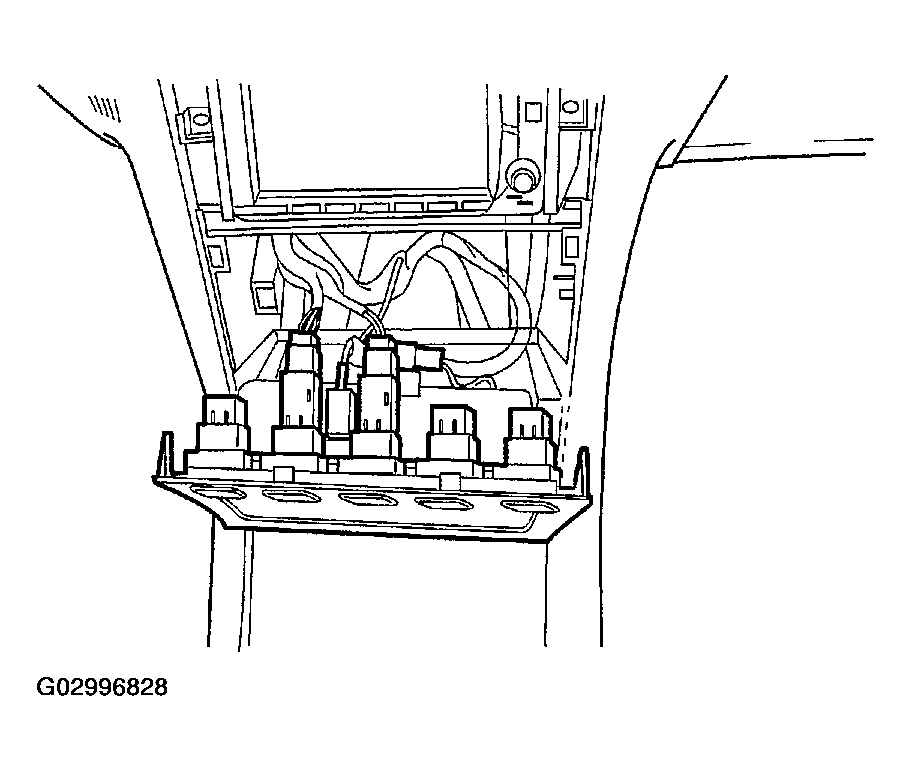

Fig 2: Installing Shift Lever Trim Panel
G02996828Courtesy of SUZUKI OF AMERICA CORP.
