Ashtray Removal

  1. Disconnect the negative battery cable.
  2. Remove the console cover.
  3. Remove the screws and the ashtray trim panel.
  4. Disconnect the electrical connector.
  5. Remove the cigar lighter. Refer to Cigar Lighter Removal  .
  6. Remove the ashtray lamp. .

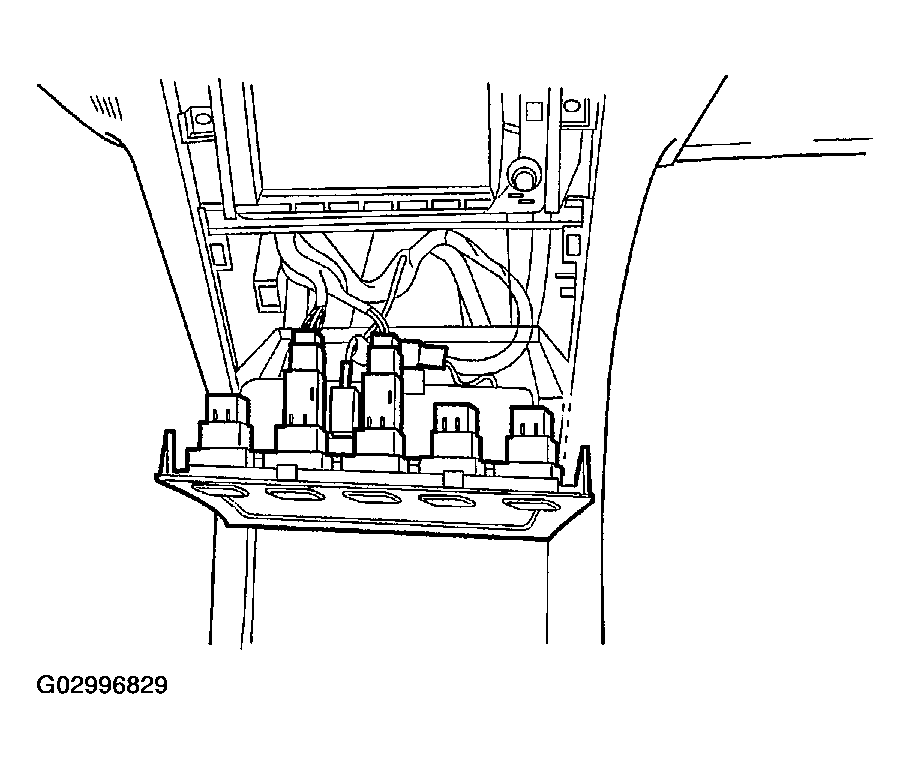

Fig 1: Removing Screws & Ashtray Trim Panel
G02996829Courtesy of SUZUKI OF AMERICA CORP.
