Temperature Gauge

Temperature Gauge Inoperative, Other Gauges Ok

Test Description

The number(s) below refer to step(s) on the diagnostic table.

1. Begin the diagnostic table at Step 1 if the problem is that the temperature gauge always indicates full. Begin the diagnostic table at Step 7 if the problem is that the temperature gauge always indicates empty.

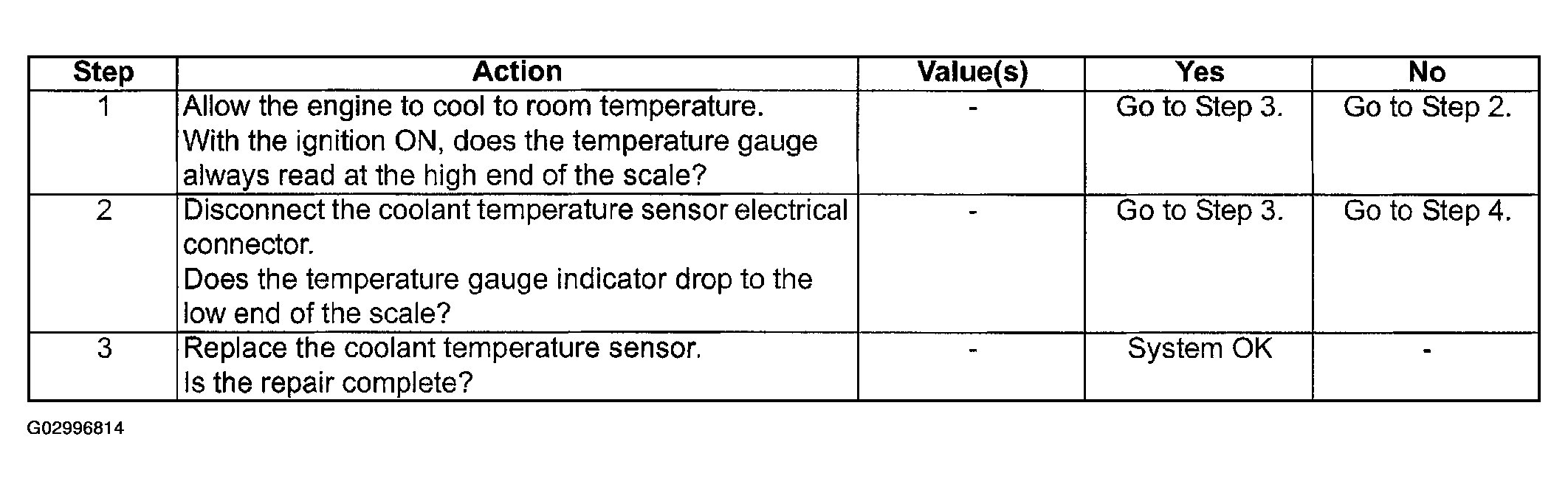

Fig 1: Temperature Gauge Inoperative, Other Gauges OK Diagnosis Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

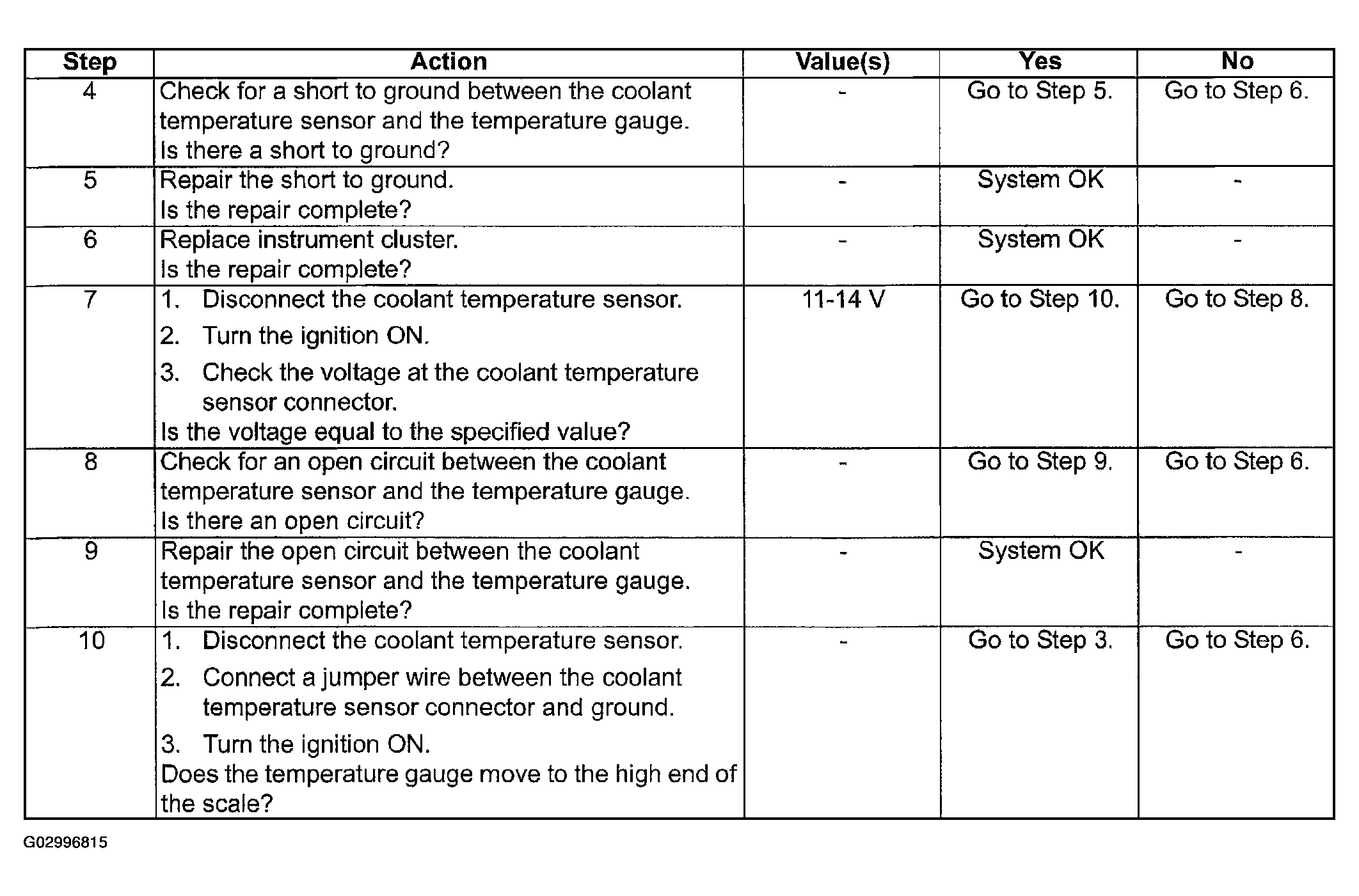

Fig 2: Temperature Gauge Inoperative, Other Gauges OK Diagnosis Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
