Instrument Panel Illumination

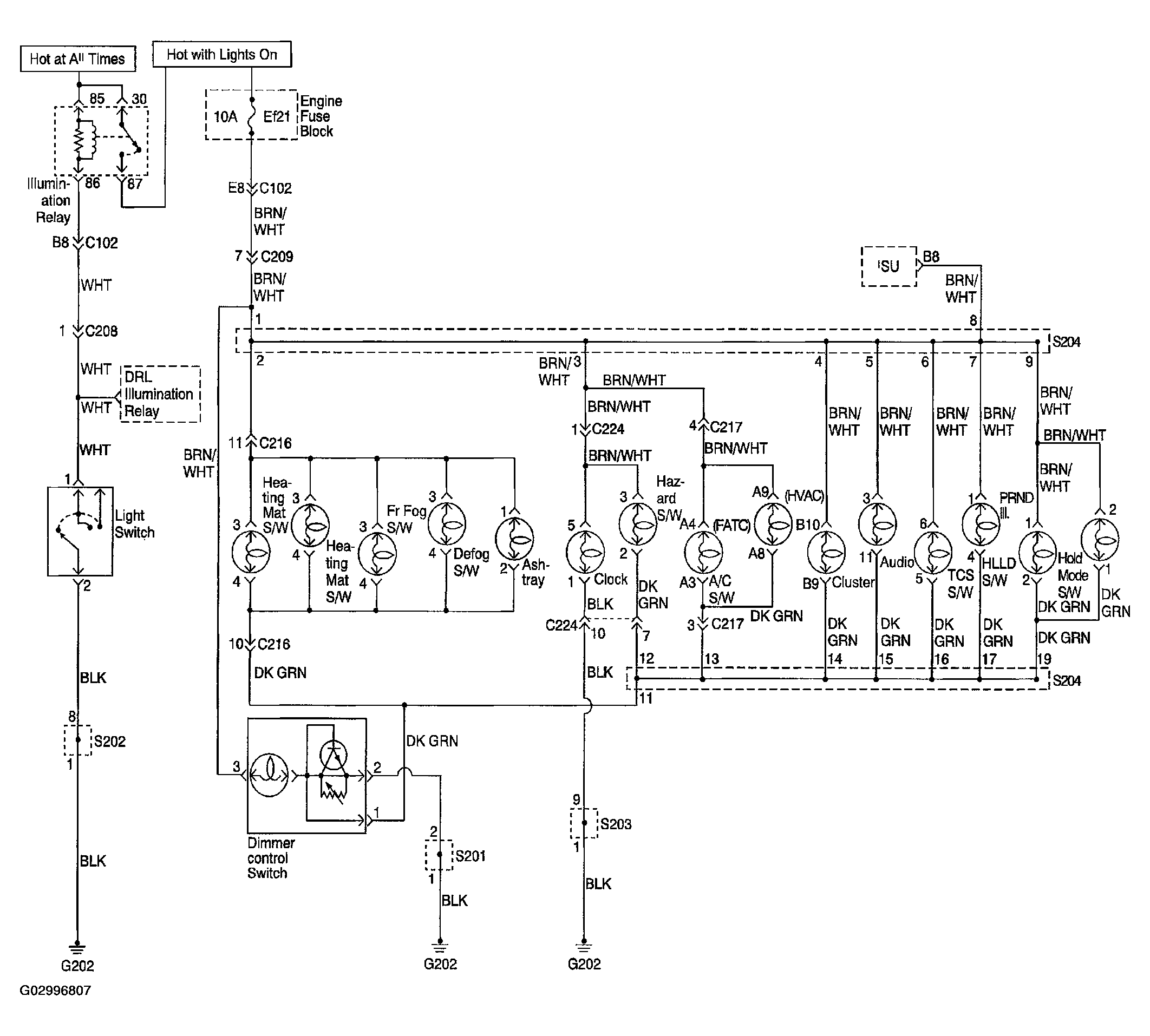

Fig 1: Instrument Panel Does Not Illuminate When Lights Are ON Schematic

Courtesy of SUZUKI OF AMERICA CORP.

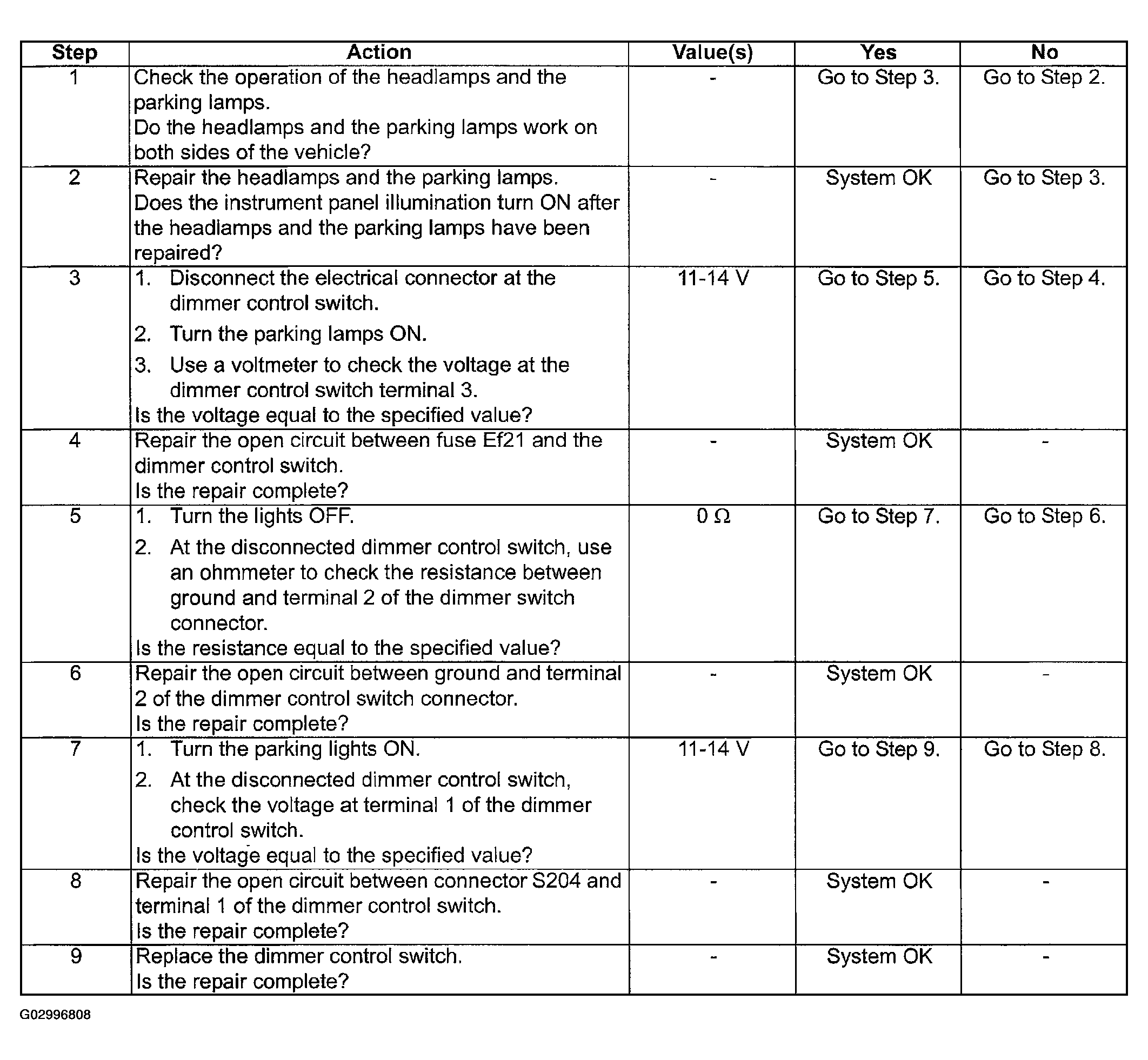

Fig 2: Instrument Panel Does Not Illuminate When Lights Are ON Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.

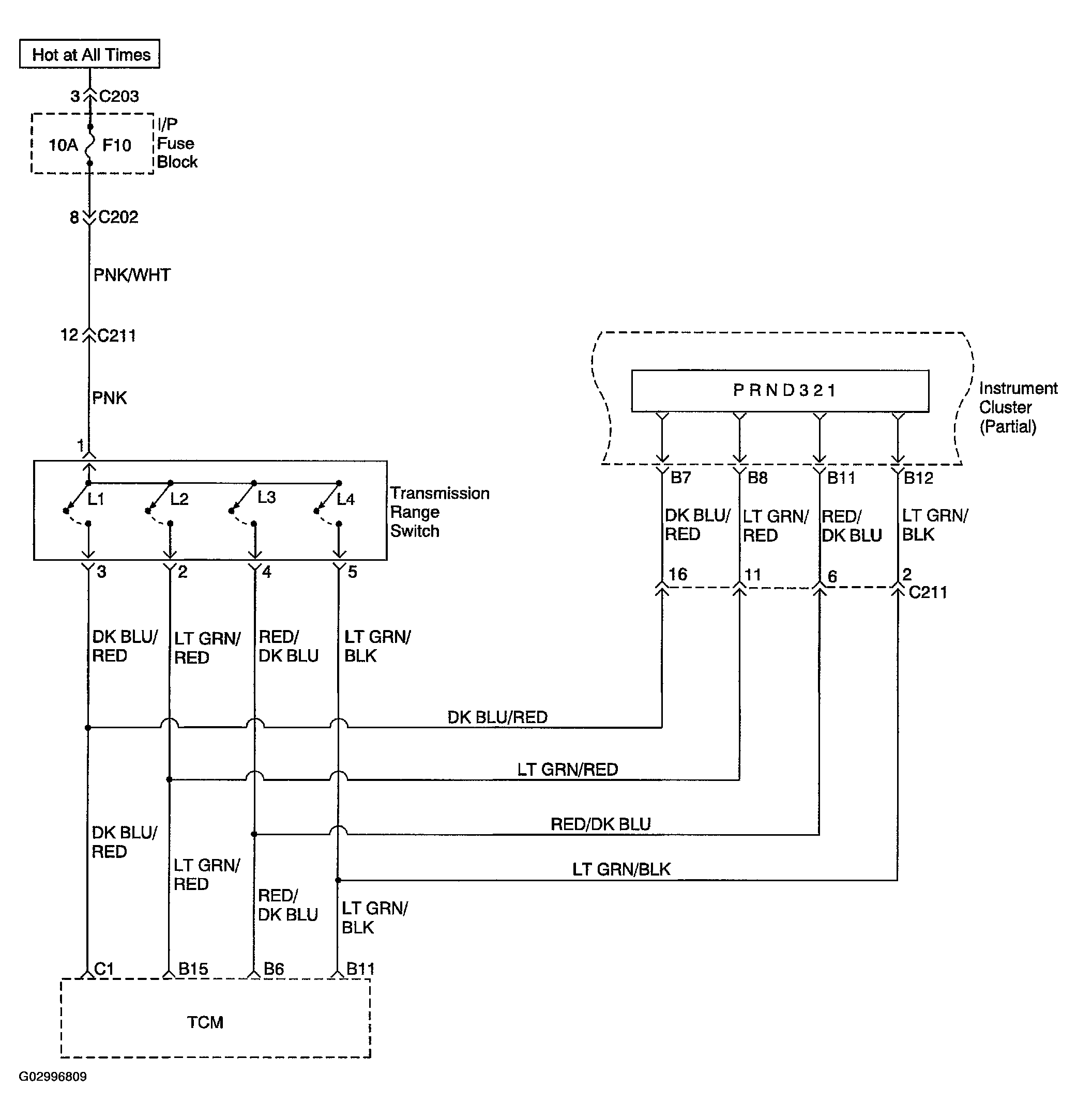

Fig 3: Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Instrument Lamps OK Schematic

Courtesy of SUZUKI OF AMERICA CORP.

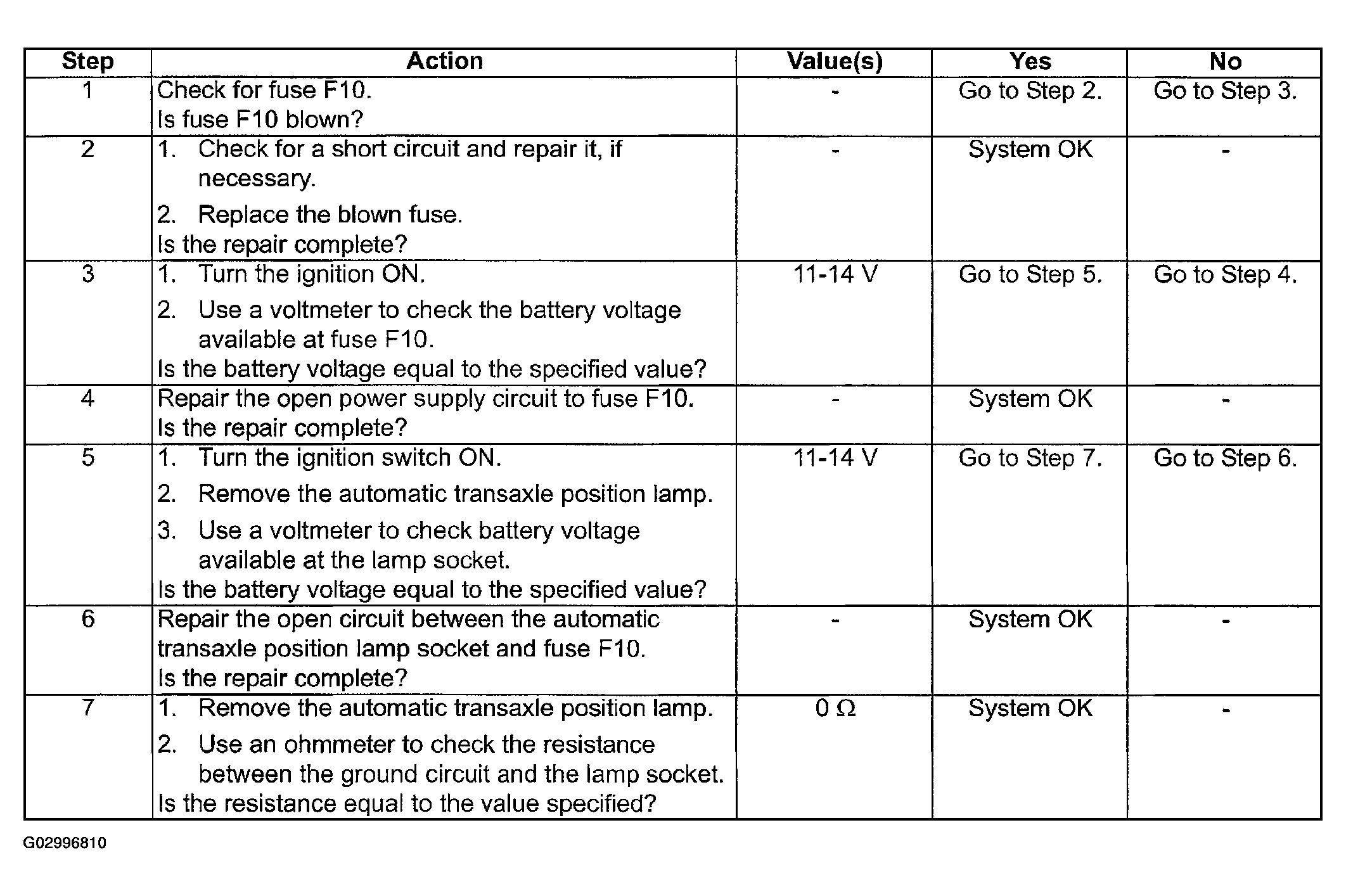

Fig 4: Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Instrument Lamps OK Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.
