Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrumentation/Driver Info/Horn
>>
Diagnostic Information and Procedures
>>
Instrument Cluster Indicator Lamps
Instrument Cluster Indicator Lamps

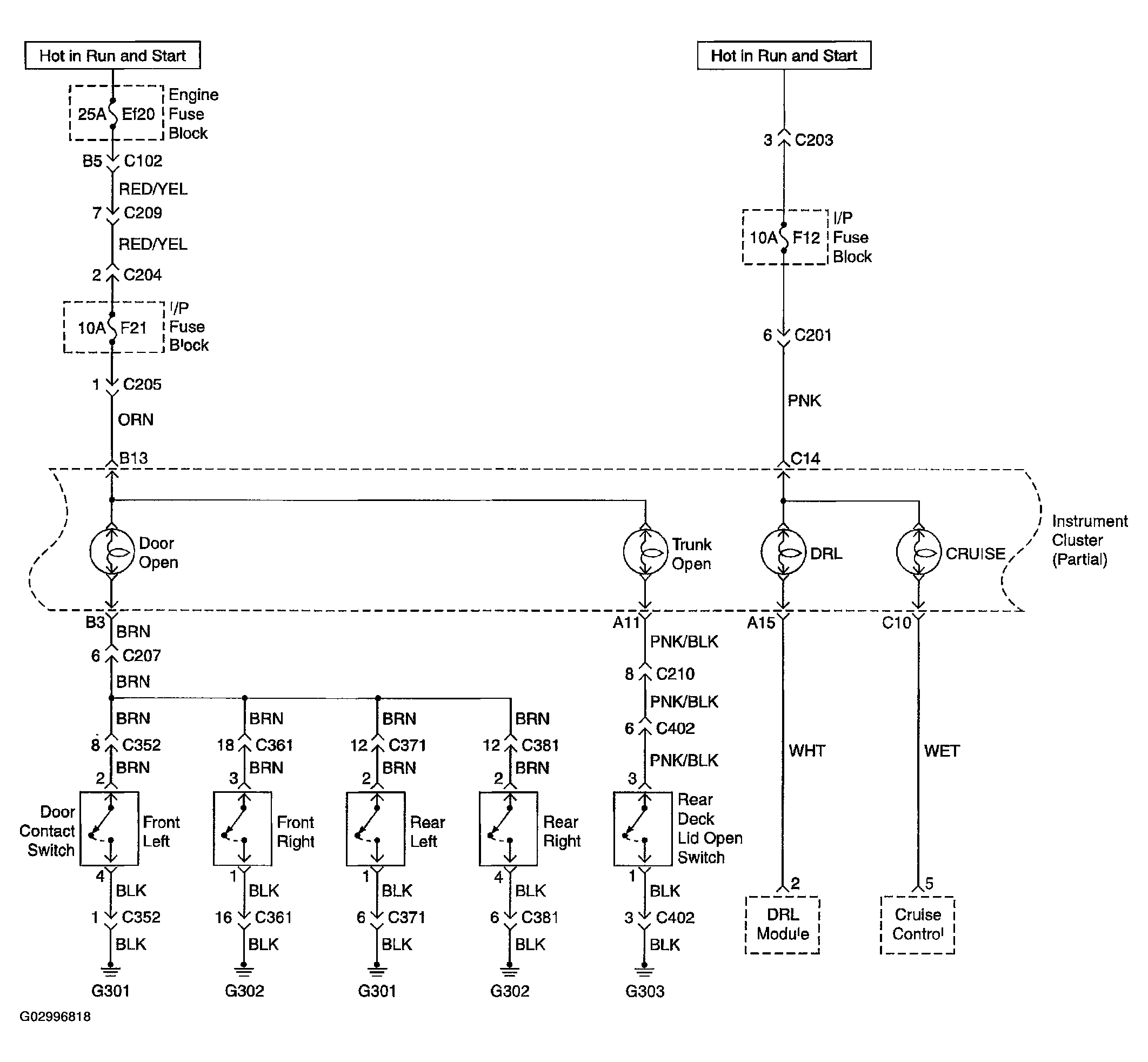

Fig 1: Instrument Cluster Indicator Lamps Do Not Operate Schematic (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

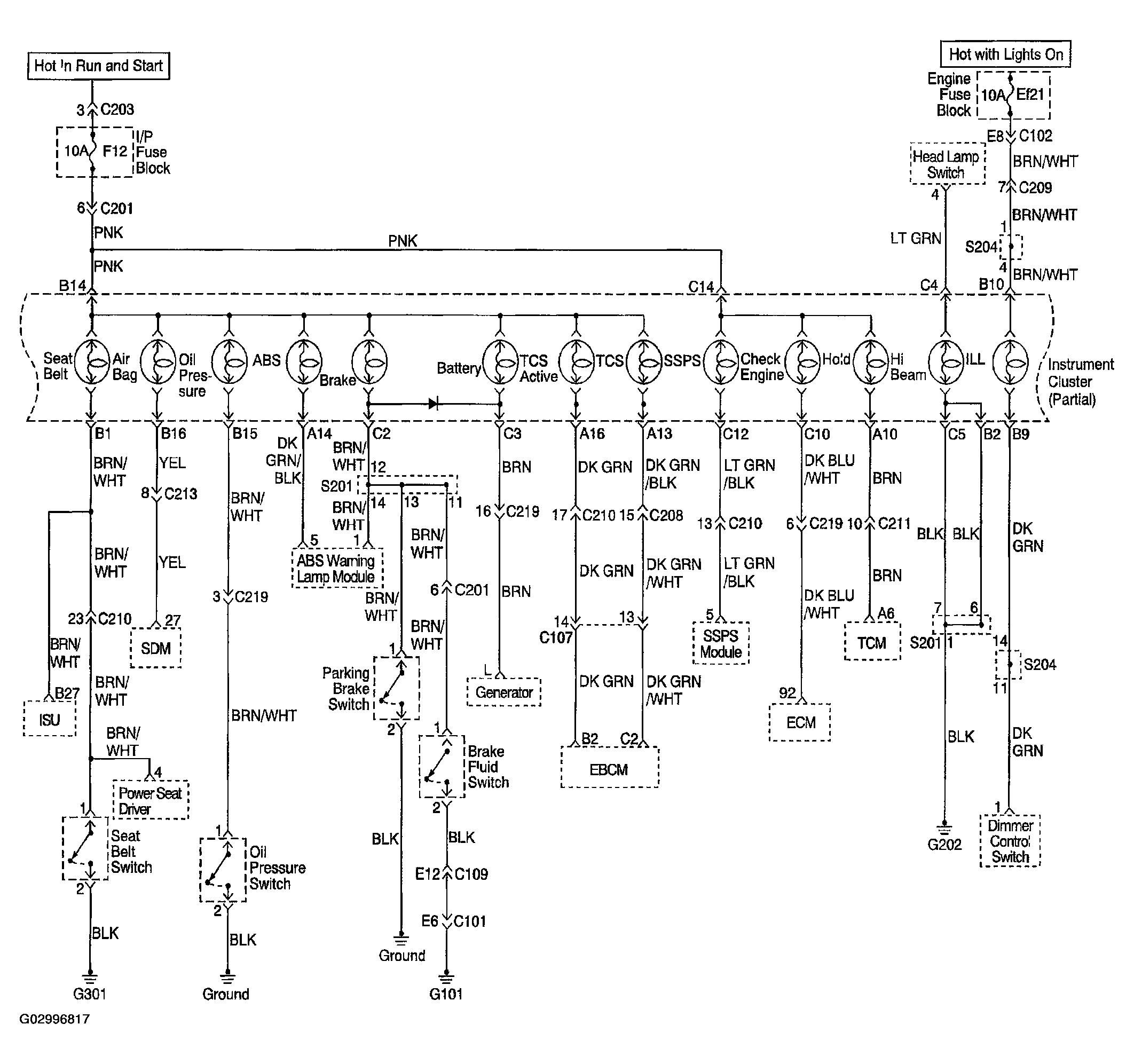

Fig 2: Instrument Cluster Indicator Lamps Do Not Operate Schematic (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

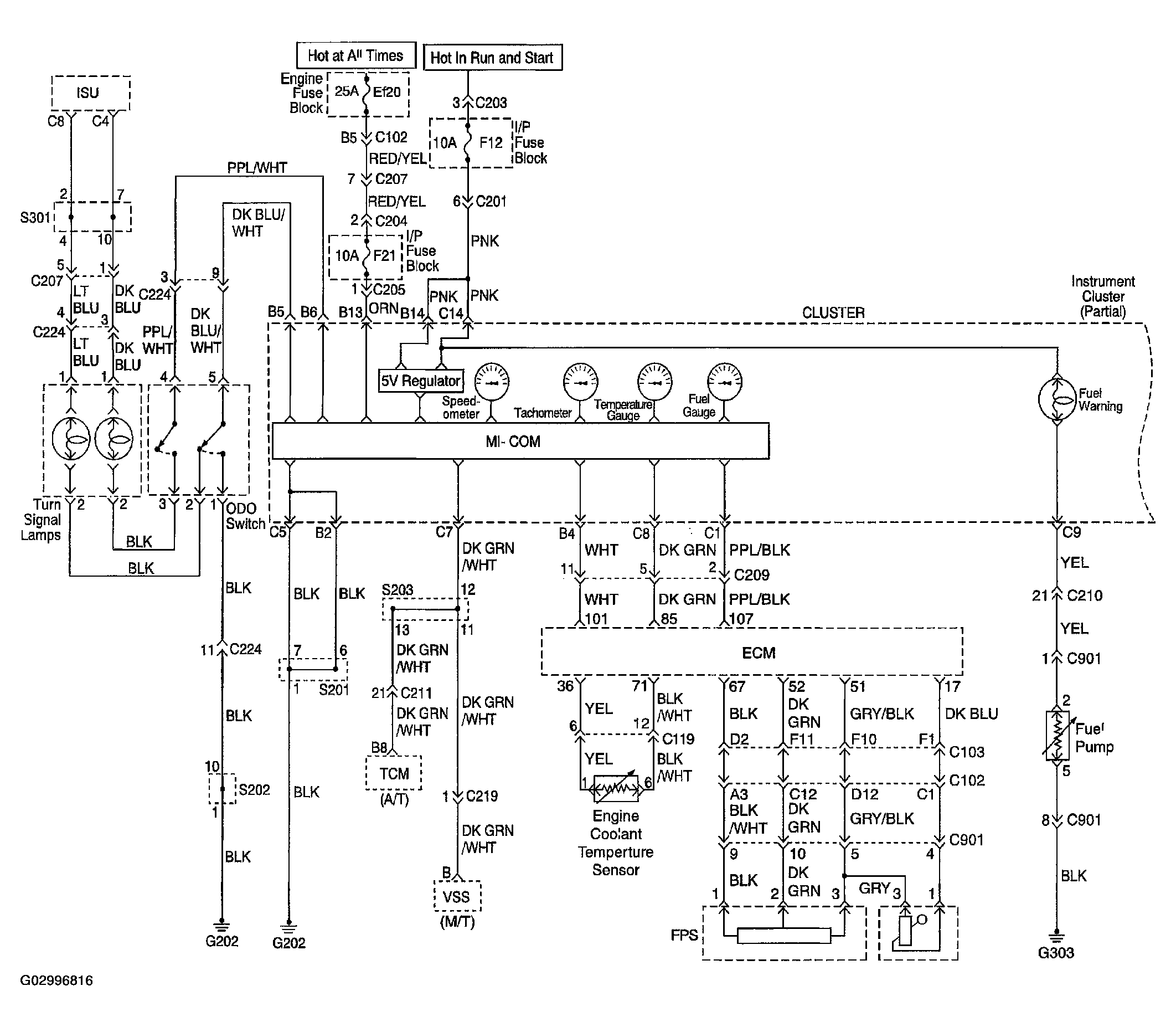

Fig 3: Instrument Cluster Indicator Lamps Do Not Operate Schematic (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

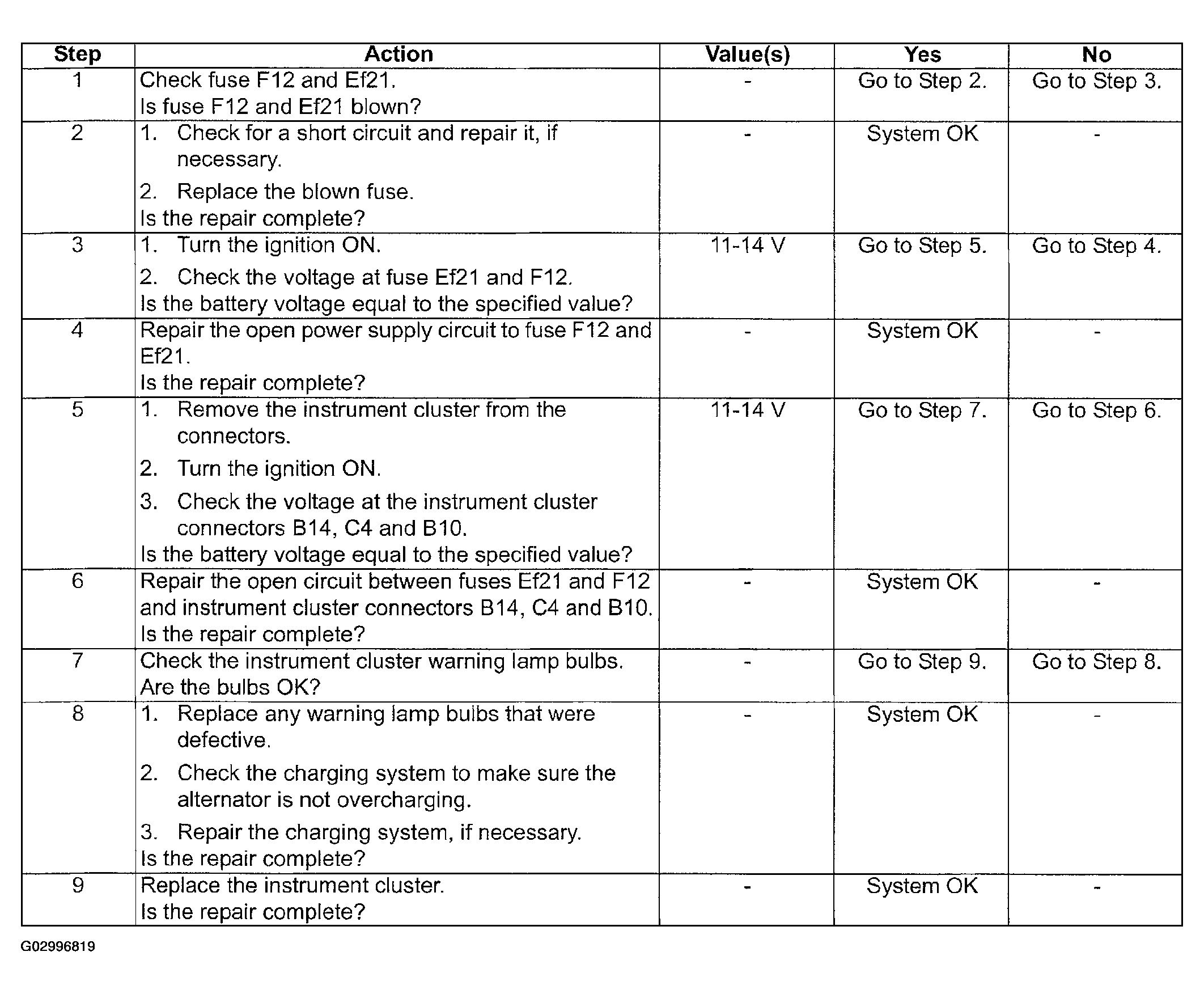

Fig 4: Instrument Cluster Indicator Lamps Do Not Operate Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
