Digital Clock
Digital Clock

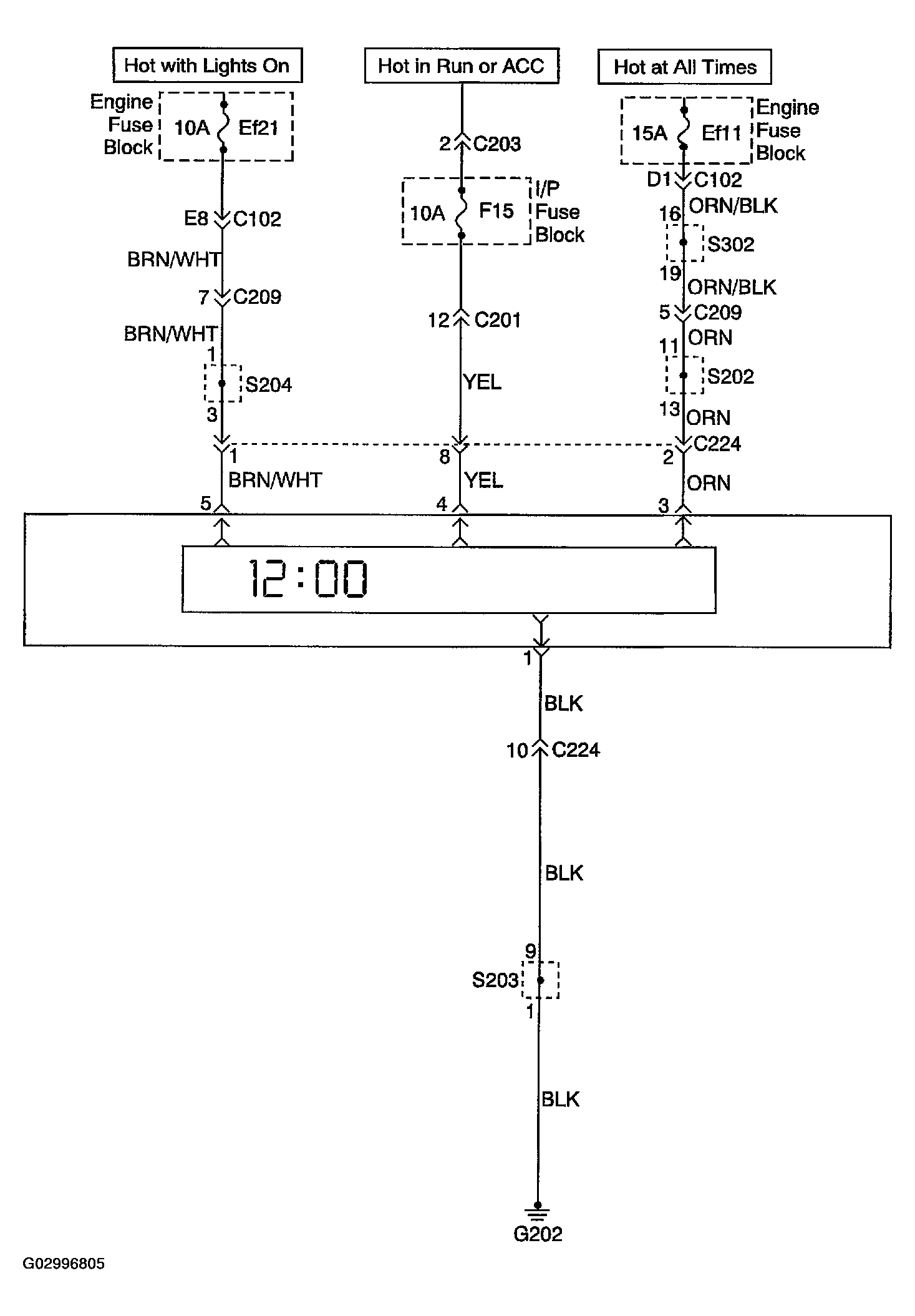

Fig 1: Digital Clock Inoperative Schematic
Courtesy of SUZUKI OF AMERICA CORP.

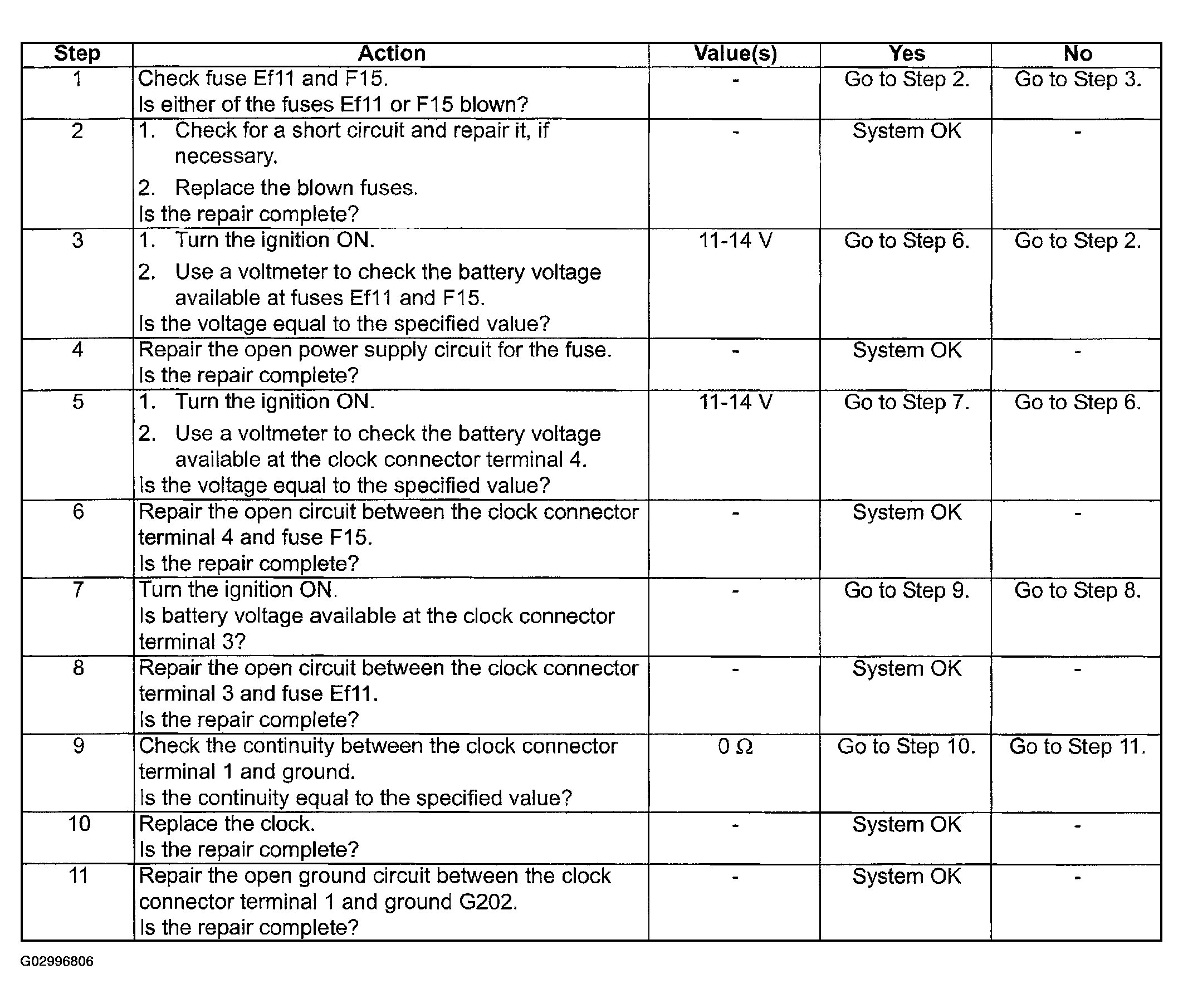

Fig 2: Digital Clock Inoperative Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
